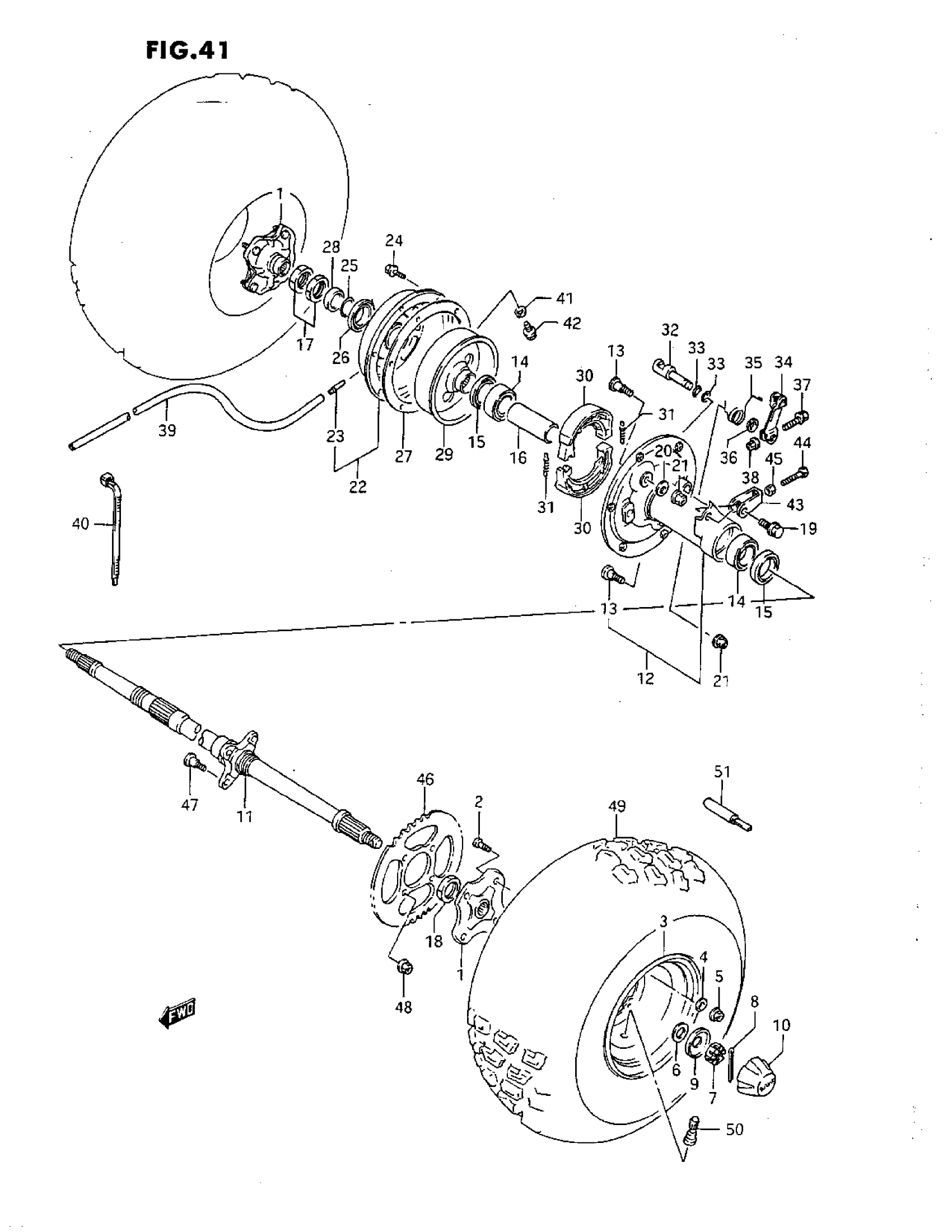

Suzuki LT-F160 (1993) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

64110-02C00

$127.20

2

BOLT

09119-10048

$3.72

3

RIM, REAR WHEEL (SILVER)

65310-02C00-13L

Unavailable

4

WASHER | MODEL M/N/P This part replaces 08322-21107.

08322-01107

$2.15

4

WASHER, KNUCKLE END | MODEL R This part replaces 08322-01103.

08322-0110A

$1.84

5

NUT | MODEL M/N/P

08316-10107

$2.39

5

NUT | MODEL R This part replaces 08316-10103.

08316-1010B

$2.66

6

WASHER, HUB SET

09164-18004

$3.76

7

NUT, HUB | MODEL M/N/P This part replaces 09141-18004.

09141-18008

$8.37

7

NUT | MODEL R

09141-18008

$8.37

8

PIN, COTTER This part replaces 04111-40356.

04111-4040A

$1.49

9

HOLDER, CENTER CAP This part replaces 64726-19BA0.

64726-19B00

$3.31

10

CAP, WHEEL CENTER | MODEL M/N/P This part replaces 54725-19B00.

54725-39D00

$14.76

10

CAP, CENTER | MODEL R

54725-39D00

$14.76

11

AXLE,REAR This part replaces 64710-02C00.

64710-02C01

Unavailable

12

HOUSING, REAR AXLE (SILVER) | MODEL M/N/P This part replaces 64720-02C00-126.

64720-02C01-13L

Unavailable

12

HOUSING, REAR AXLE (SILVER) | MODEL R This part replaces 64720-02C00-13L.

64720-02C01-13L

Unavailable

13

BOLT This part replaces 64716-02C00.

09119-12021

$6.38

14

BEARING

09262-35032

$60.15

15

SEAL, DUST

09283-42011

$12.61

16

SPACER, BEARING

64731-02C00

$40.10

17

NUT, RH

09159-32002

$42.13

18

NUT, LH

09140-32001

Unavailable

19

BOLT, HOUSING SET, LH

09103-120D9

$8.92

20

WASHER, UPPER, RH This part replaces 09160-120B7.

09160-12017

$2.23

21

NUT This part replaces 08319-31128.

08319-3112A

$3.76

22

COVER, BRAKE DRUM (SILVER) | MODEL M/N/P This part replaces 64130-02C00-126.

64130-02C00-13L

Unavailable

22

COVER, BRAKE DRUM (SILVER) | MODEL R

64130-02C00-13L

Unavailable

23

UNION

09364-070A1

Unavailable

24

BOLT, COVER | MODEL M/N/P

01550-06127

$2.30

24

BOLT, CLAMP | MODEL R This part replaces 01550-06123.

01550-0612A

$1.97

25

O-RING, COVER

09280-32006

$2.28

26

SEAL, COVER OUTER

64135-02C00

$12.63

27

PACKING, COVER

64160-24400

$22.22

28

COLLAR, COVER

64214-02C00

$14.85

29

DRUM, REAR BRAKE

64120-24401

$278.28

30

SHOE SET, REAR BRAKE This part replaces 64410-02C00.

64400-02830

$55.17

31

SPRING, SHOE

55420-02C00

$7.51

32

CAM, REAR BRAKE

64440-24402

$21.05

33

O-RING

64443-24300

$2.08

34

LEVER,REAR BRAK This part replaces 64451-02C00.

64451-02C0V

$31.70

35

SPRING, LEVER RETURN

64484-02C00

$11.36

36

PLATE, INDICATER

64492-02C00

Unavailable

37

BOLT, LEVER

09103-06108

$2.23

38

NUT | MODEL M/N/P

08316-10067

$2.25

38

NUT | MODEL R This part replaces 08316-10063.

08316-1006B

$2.50

39

HOSE, BREATHER

64275-02C00

Unavailable

40

CLAMP (L:125) This part replaces 09407-144A3.

09407-14403

$2.26

41

WASHER, PLUG

09161-10007

$1.72

42

PLUG, DRAIN This part replaces 09247-100A9.

09247-10009

Unavailable

43

ADJUSTER, CHAIN

61410-35B00

$18.31

44

BOLT (8X50) This part replaces 09104-080A6.

09104-08034

$3.04

45

NUT | MODEL M/N/P

08310-00087

$2.13

45

NUT | MODEL R This part replaces 08310-00083.

08310-0008A

$1.84

46

SPROCKET, REAR (NT:39) This part replaces 64511-02C00.

64511-02C01

$60.37

47

BOLT

09119-10031

$7.30

48

NUT

08319-31107

$2.73

49

TIRE, REAR (AT22X10-8) (GOLDEN BOY)

65100-02C30

Unavailable

50

VALVE

43130-78030

$9.25

51

GAUGE ASSY,AIR PRESSUR This part replaces 96200-18A01.

96200-18A02

$58.92
