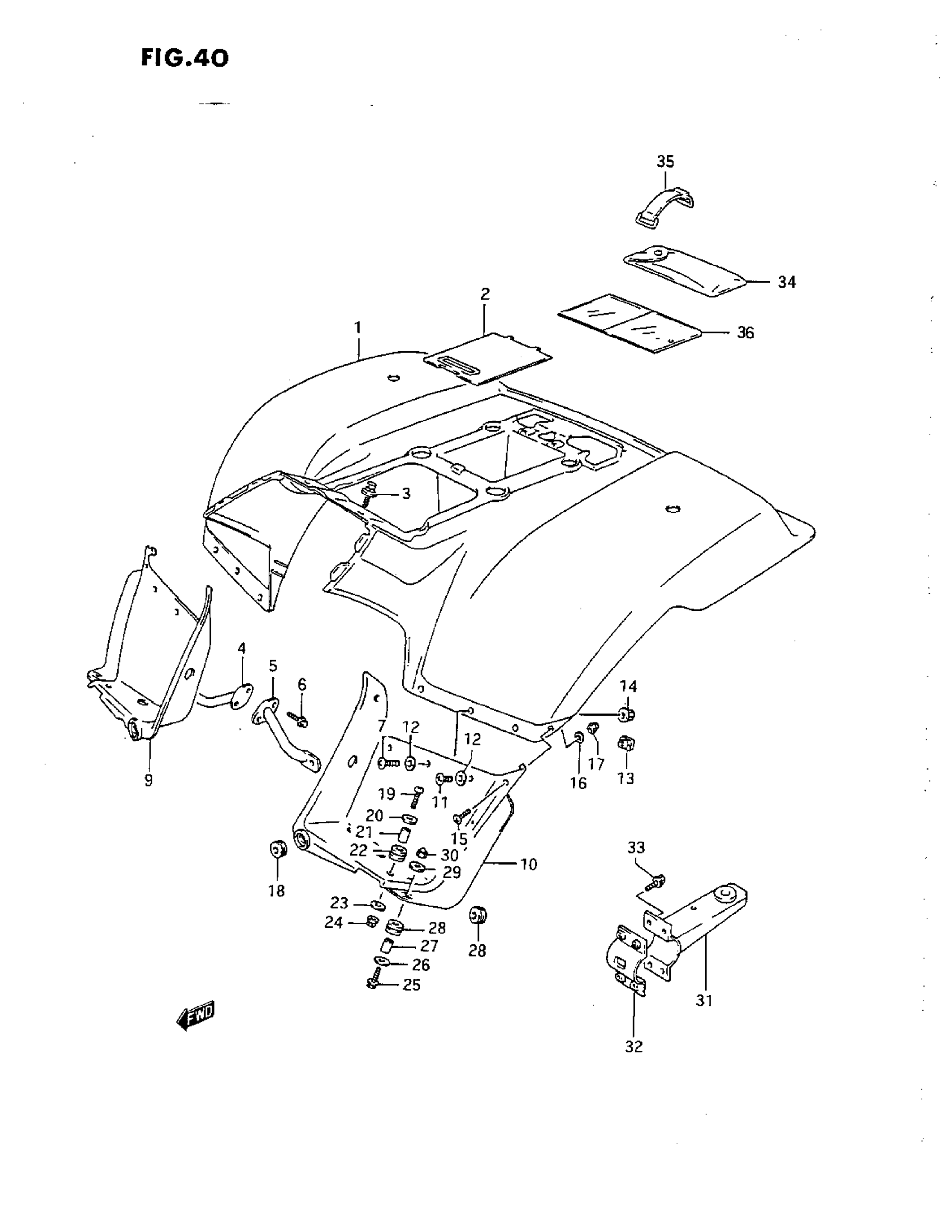

Suzuki LT-F160 (1993) REAR FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 63111-02C20-25G.

63111-02X50-25G

Unavailable

1

FENDER, REAR (BLUE) | MODEL N/P/R This part replaces 63111-02C20-0VT.

63111-02X50-0VT

Unavailable

2

COVER, FENDER (YELLOW) | MODEL M

63171-02C00-25G

Unavailable

2

COVER, FENDER (BLACK) | MODEL N/P/R

63171-02C00-291

Unavailable

3

BOLT This part replaces 09118-060B7.

09118-06017

$2.12

4

REINFORCEMENT, RH

63140-02C00

Unavailable

5

REINFORCEMENT, LH

63150-02C00

Unavailable

6

BOLT, CLAMP | MODEL M/N/P This part replaces 01517-06125.

01550-0612A

$1.97

6

BOLT, CLAMP | MODEL R This part replaces 01550-06123.

01550-0612A

$1.97

7

SCREW | MODEL M/N/P This part replaces 02142-06205.

02142-0620A

$1.49

7

SCREW | MODEL R This part replaces 02142-06203.

02142-0620A

$1.49

8

EMBLEM, SUZUKI (WHITE/YELLOW) | MODEL M

68174-02C00-7ZP

Unavailable

8

EMBLEM, SUZUKI (WHITE/BLUE) | MODEL N

68174-02C00-E67

Unavailable

9

BODY, MUD GUARD RH (BLACK)

63330-02C10-291

Unavailable

10

BODY, MUD GUARD LH (BLACK)

63340-02C10-291

Unavailable

11

SCREW | MODEL M/N/P This part replaces 02142-06125.

02142-0612A

$1.49

11

SCREW | MODEL R This part replaces 02142-06123.

02142-0612A

$1.49

12

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

13

NUT This part replaces 09146-06001.

09146-06003

$2.12

14

NUT, CENTER

08319-31067

$2.03

15

SCREW | MODEL M/N/P This part replaces 02142-15125.

02142-1512B

$2.34

15

.SCREW | MODEL R This part replaces 02142-05123.

02142-0512A

$1.49

16

WASHER, FRONT | MODEL M/N/P This part replaces 08322-21055.

08322-0105A

$1.84

16

WASHER, FRONT | MODEL R This part replaces 08322-01053.

08322-0105A

$1.84

17

.NUT This part replaces 08319-21055.

08319-2105A

$2.19

18

CUSHION (8.5X20X8) This part replaces 09320-080A7.

09320-08510

$1.97

19

SCREW, REAR | MODEL M/N/P This part replaces 02142-05204.

02142-0520B

$1.78

19

SCREW, REAR | MODEL R This part replaces 02142-05203.

02142-0520B

$1.78

20

WASHER (5.5X16X1.2) This part replaces 09160-05031.

09160-05037

$1.49

21

SPACER (6.1X8X9.5) This part replaces 09180-06044.

09180-06248

$2.12

22

CUSHION (8X22X7) This part replaces 09320-080B3.

09320-08509

$1.93

23

WASHER (5.5X20X1.2) This part replaces 09160-05011.

09160-05501

$1.84

24

NUT This part replaces 08319-31053.

08319-3105B

$3.55

25

BOLT | MODEL M/N/P This part replaces 01514-05165.

01550-0516B

$2.88

25

BOLT | MODEL R This part replaces 01550-05163.

01550-0516B

$2.88

26

WASHER (5.5X20X1.2) This part replaces 09160-05011.

09160-05501

$1.84

27

SPACER (6.1X8X9.5) This part replaces 09180-06044.

09180-06248

$2.12

28

CUSHION (8X22X7) This part replaces 09320-080B3.

09320-08509

$1.93

29

WASHER (5.5X16X1.2) This part replaces 09160-05031.

09160-05037

$1.49

30

NUT | MODEL M/N/P This part replaces 08313-11055.

08313-1005B

$2.70

30

NUT | MODEL R This part replaces 08313-10053.

08313-1005B

$2.70

31

PLATE, TRAILER TOW

95210-02C00

Unavailable

32

PLATE, TRAILER JOINT

95220-02C00

Unavailable

33

BOLT | MODEL M/N/P

01570-08207

Unavailable

33

BOLT, BRACE | MODEL R This part replaces 01570-08203.

01570-0820A

$3.15

34

TOOL ASSY | MODEL M/N/P This part replaces 09800-20018.

09800-21075

$44.50

34

TOOL ASSY | MODEL R This part replaces 09800-21019.

09800-21075

$44.50

35

BAND This part replaces 09462-000E6.

09462-00046

$3.70

36

BAG,OWNER'S MAN This part replaces 94980-02C00.

94980-01C02

$20.65
