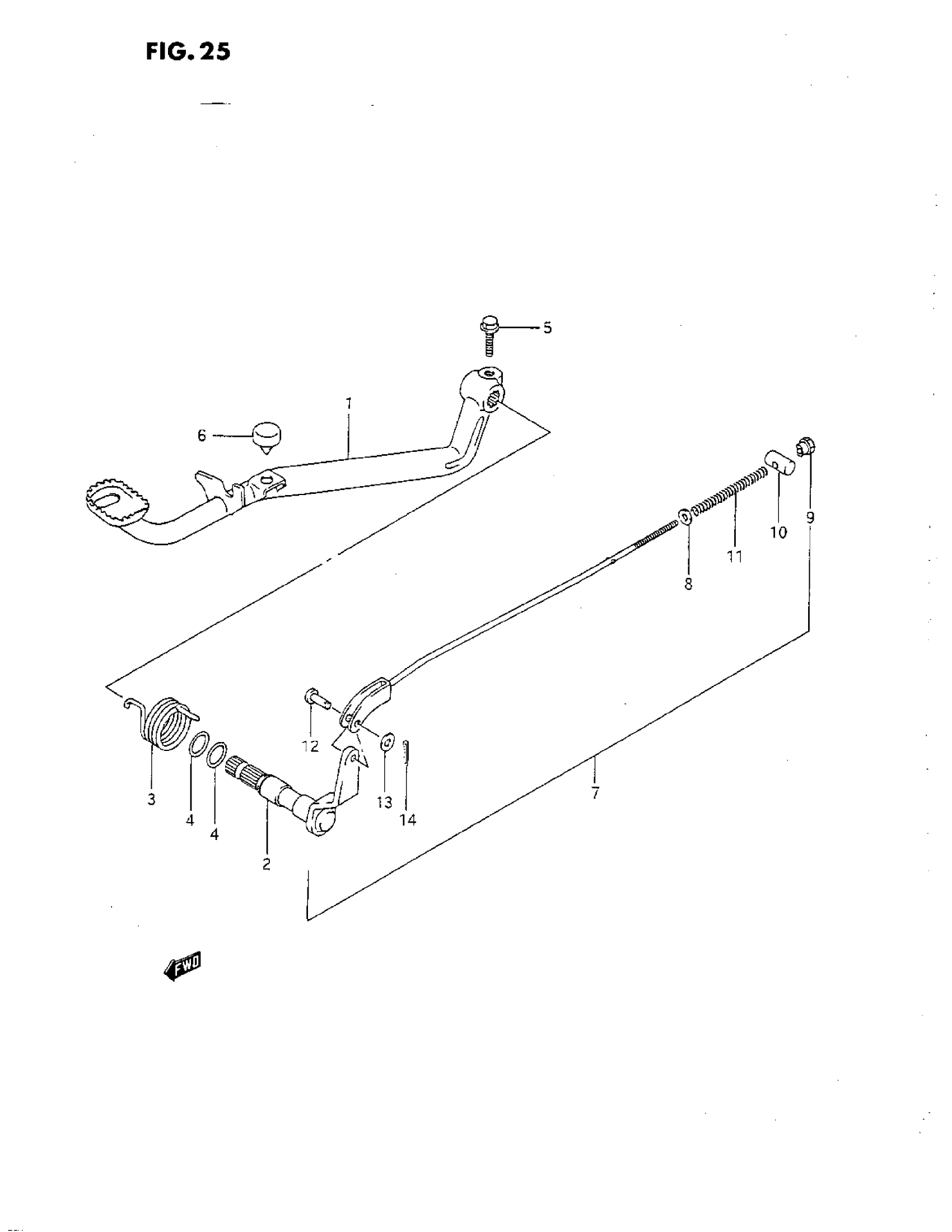

Suzuki LT-F160 (1993) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE (BLACK)

43110-02C20-019

Unavailable

2

ARM, BRAKE PEDAL

43120-02C00

Unavailable

3

SPRING, RETURN

43211-02C00

$27.32

4

O-RING

09280-17004

$3.98

5

BOLT | MODEL M/N/P This part replaces 01517-08256.

01550-0825A

$2.31

5

BOLT | MODEL R This part replaces 01550-08253.

01550-0825A

$2.31

6

CUSHION This part replaces 09321-100B2.

09321-10012

$2.80

7

ROD ASSY, BRAKE

43300-02C00

$34.12

8

WASHER | MODEL M/N/P

08322-01067

$1.86

8

.WASHER | MODEL R This part replaces 08322-01063.

08322-0106B

$2.24

9

.NUT This part replaces 09150-06009.

09150-06010

$2.80

10

PIN This part replaces 09209-130A6.

09209-13006

$4.73

11

.SPRING This part replaces 09440-090B3.

09440-09004

$2.06

12

PIN

09200-060B3

Unavailable

13

WASHER | MODEL M/N/P

08322-01067

$1.86

13

.WASHER | MODEL R This part replaces 08322-01063.

08322-0106B

$2.24

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22
