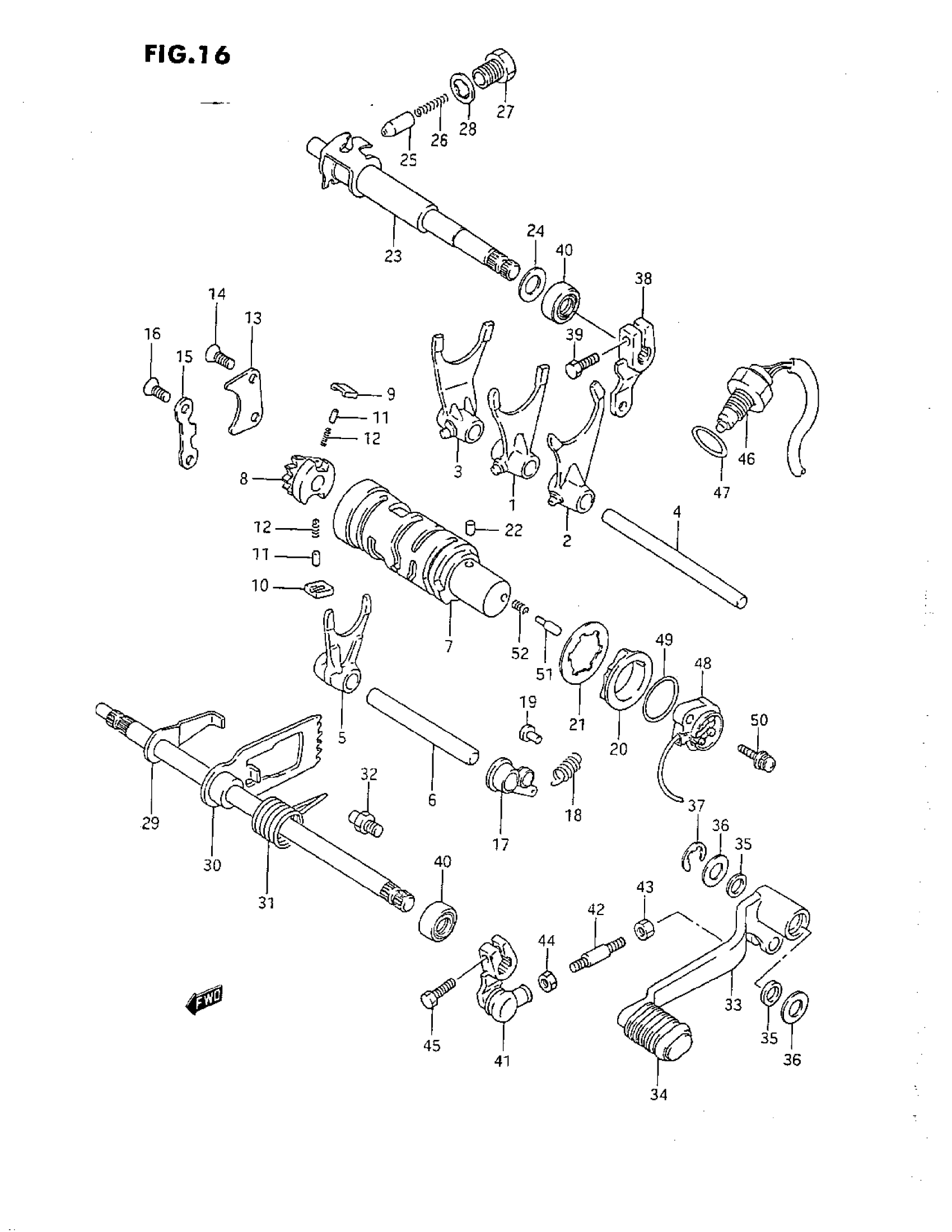

Suzuki LT-F160 (1993) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING, NO.1

25211-18A00

Unavailable

2

FORK, GEAR SHIFTING, NO.2

25221-18A00

Unavailable

3

FORK, GEAR SHIFTING, NO.4

25241-18A01

Unavailable

4

SHAFT, GEAR SHIFT FORK NO.1 This part replaces 25411-31301.

25411-18900

$23.07

5

FORK, GEAR SHIFTING, NO.3

25231-18A01

Unavailable

6

SHAFT, NO.2 | MODEL M/N/P This part replaces 25411-14330.

25411-14331

$23.07

6

SHAFT, NO.2 (L:85) | MODEL R

25411-14331

$23.07

7

CAM, GEAR SHIFTING This part replaces 25310-35B01.

25310-35B02

Unavailable

8

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

$26.93

9

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

10

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

11

PIN

09261-05003

$1.54

12

SPRING

09440-04003

$1.54

13

LIFTER, PAWL

25331-37400

Unavailable

14

SCREW | MODEL M/N/P

02122-06127

$1.84

14

SCREW | MODEL R This part replaces 02122-06123.

02122-0612A

$1.49

15

GUIDE, CAM

25341-40001

$12.17

16

SCREW

02122-06127

$1.84

16

SCREW | MODEL R This part replaces 02122-06123.

02122-0612A

$1.49

17

STOPPER, CAM

25350-18A00

Unavailable

18

SPRING

09443-10022

$2.53

19

HOOK

09223-04001

$1.68

20

PLATE,GEAR SHIFT CAM STOPPER | MODEL M/N/P This part replaces 25381-37400.

25381-37401

$20.77

20

PLATE,GEAR SHIFT CAM STOPPER | MODEL R

25381-37401

$20.77

21

WASHER

09167-30007

$2.53

22

PIN (4X13.8)

04221-04089

$1.49

23

CAM, REVERSE SHIFTING

25320-18A04

Unavailable

24

WASHER

08211-12223

$2.12

25

STOPPER, CAM This part replaces 25351-11000.

25351-11010

$7.22

26

SPRING

09440-05007

$1.82

27

HOLDER, STOPPER

25352-11010

$7.22

28

GASKET

09168-14004

$1.83

29

SHAFT, GEAR SHIFTING

25510-18A01

Unavailable

30

GEAR, CAM DRIVE

25540-24200

Unavailable

31

SPRING This part replaces 09444-26022.

09444-26025

$5.33

32

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

33

LEVER ASSY, GEAR SHIFTING

25600-02C00

$129.25

34

RUBBER This part replaces 25652-244A1.

25652-24401

$5.05

35

O-RING

09280-12006

$1.56

36

WASHER (12.5X20X1)

09160-12011

$1.54

37

E RING This part replaces 08332-11106.

08332-1110A

$1.80

38

LEVER, REVERSE SHIFTING,

25621-02C00

Unavailable

39

BOLT | MODEL M/N/P

01500-06207

$2.28

39

BOLT, GEAR SHIFT LINK | MODEL R This part replaces 01500-06203.

01500-0620A

$1.78

40

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

41

ARM

25520-02C00

$66.48

42

ROD (L:59.5) This part replaces 25525-44100.

25525-44110

$7.36

43

NUT

09140-06011

$1.49

44

.NUT | MODEL M/N/P

08310-00067

$2.13

44

NUT | MODEL R This part replaces 08310-00063.

08310-0006A

$1.84

45

BOLT | MODEL M/N/P

01500-06207

$2.28

45

BOLT, GEAR SHIFT LINK | MODEL R This part replaces 01500-06203.

01500-0620A

$1.78

46

SWITCH ASSY, REVERSE This part replaces 37600-19B02.

37600-19B03

$74.17

47

O RING (D:3.2,ID:15.8)

09280-16008

$2.02

48

SWITCH, GEAR SHIFTING This part replaces 37720-24501.

37720-24502

$54.06

49

O-RING (D:2.4, ID:26.2)

09280-26005

$2.30

50

SCREW | MODEL M/N/P

02112-75207

$2.92

50

SCREW | MODEL R This part replaces 02112-75203.

02112-7520A

$2.90

51

CONTACT

09209-05011

$2.20

52

SPRING

09440-04010

$1.54
