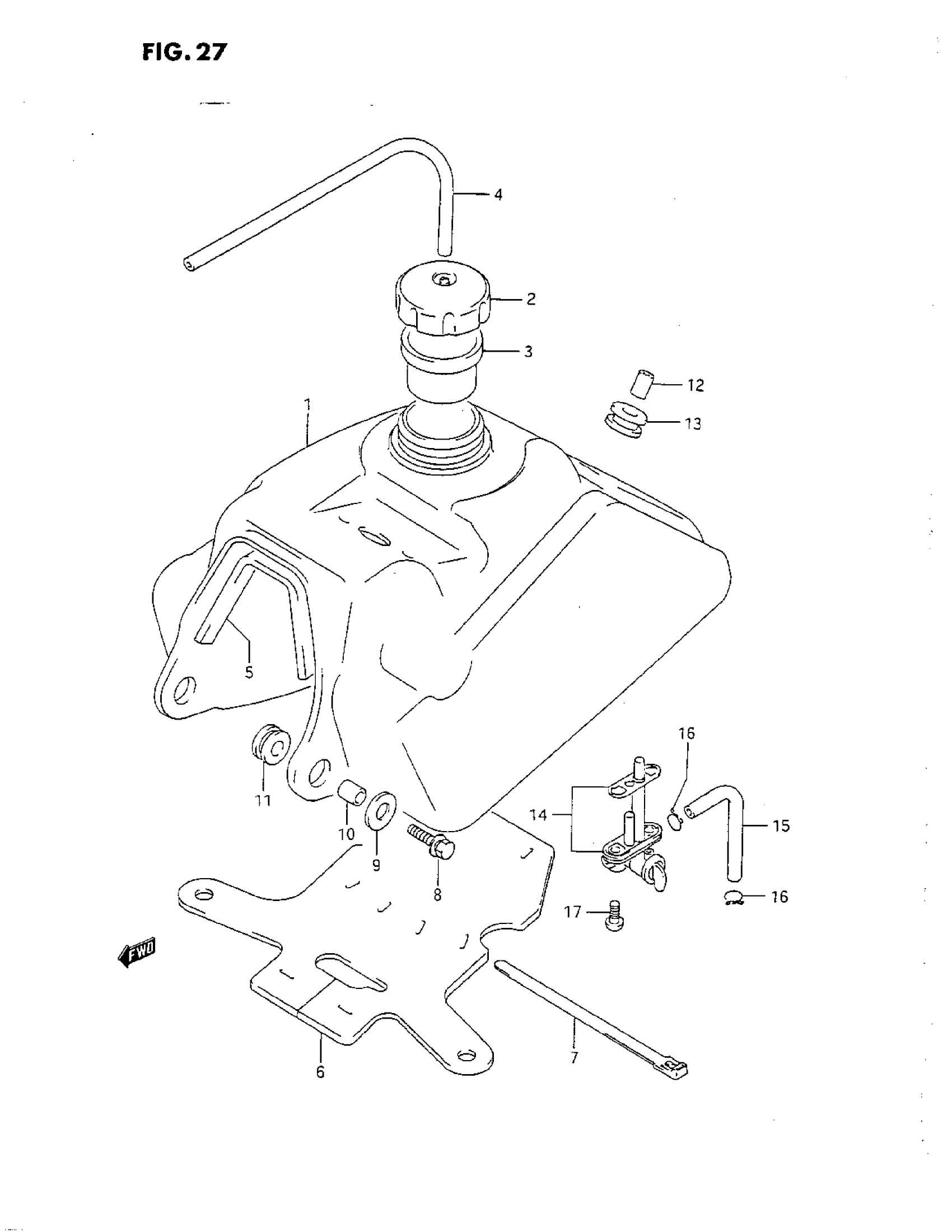

Suzuki LT-F160 (1993) FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

44110-02C00

Unavailable

2

CAP, FUEL TANK

44200-19A01

$48.20

3

TUBE, FILLER INLET

44199-19A00

$6.28

4

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

5

.RUBBER, FUEL TANK FR This part replaces 44261-22AA0.

44261-22A00

$3.87

6

MUDGUARD, CLEANER INLET

47157-02C00

Unavailable

7

CLAMP This part replaces 09407-184A2.

09407-18402

$2.19

8

BOLT | MODEL M/N/P This part replaces 01137-08358.

01500-0835B

$3.04

8

BOLT | MODEL R This part replaces 01820-08353.

01570-0835A

$3.16

9

WASHER (8.5X33X1.5) This part replaces 09160-08106.

09160-08146

$2.60

10

SPACER This part replaces 09180-080G7.

09180-08067

$2.41

11

CUSHION

09320-12050

Unavailable

12

SPACER This part replaces 09180-080G7.

09180-08067

$2.41

13

CUSHION

09320-12016

$2.11

14

COCK ASSY, FUEL

44300-22A01

$56.75

15

HOSE,5X10X600 This part replaces 09352-50823-300.

44421-13ER0

$10.06

16

CLIP

09401-08401

$1.54

17

SCREW | MODEL M/N/P

02112-36167

$2.34

17

SCREW | MODEL R This part replaces 02112-36163.

02112-3616A

$1.97
