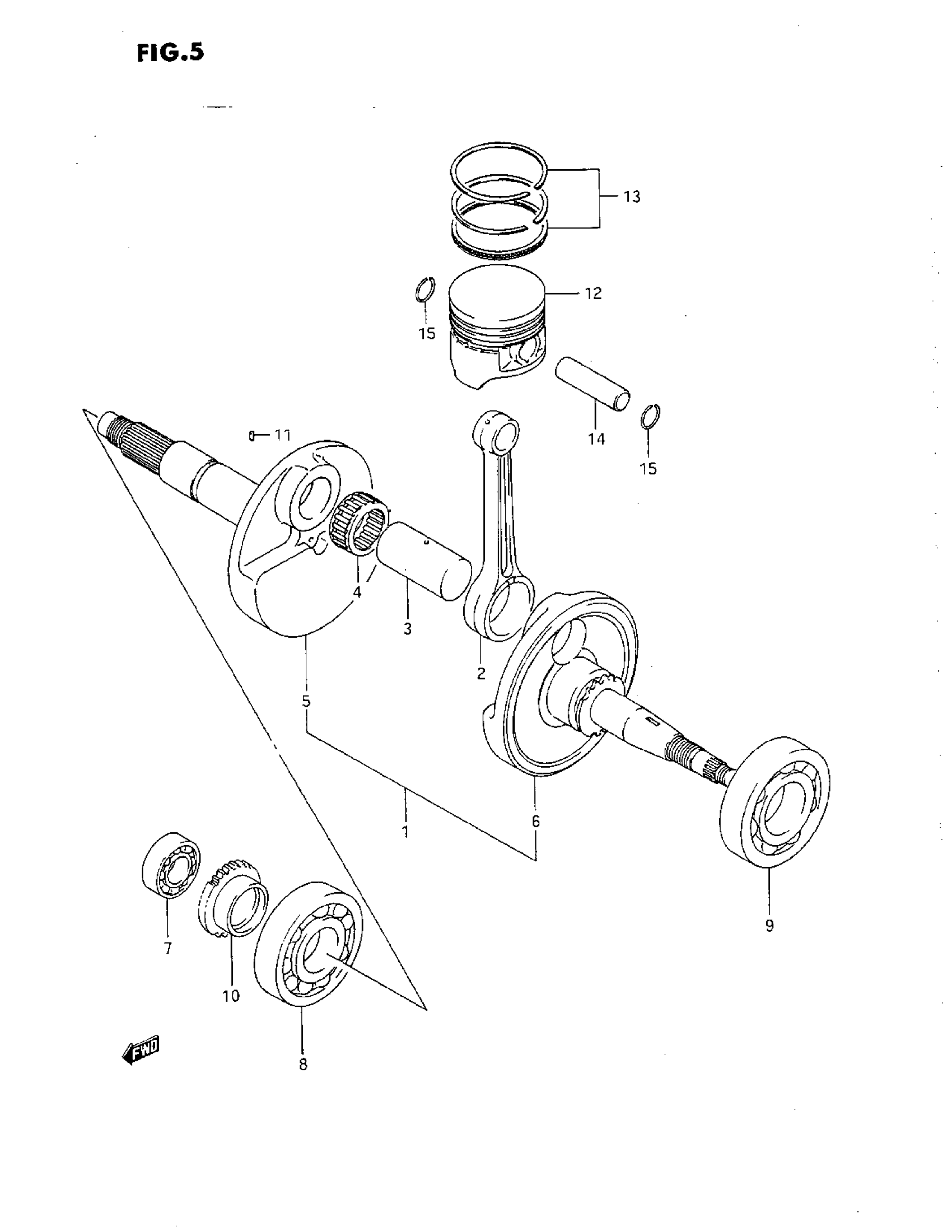

Suzuki LT-F160 (1993) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY

12200-02C00

Unavailable

2

ROD, CONNECTING

12161-02C00

Unavailable

3

.PIN, CRANK

12211-05231

Unavailable

4

BEARING (28X36X15.8) | MODEL M/N/P This part replaces 09263-28022-0B0.

09263-28027-0B0

Unavailable

4

BEARING | MODEL R

09263-28027-0B0

Unavailable

5

CRANKSHAFT, RH

12221-02C00

Unavailable

6

CRAWSHAFT, LH

12261-02C00

Unavailable

7

BEARING, RH (15X35X11)

09262-15014

$26.60

8

BEARING, MDL (28X68X1B)

09262-28017

Unavailable

9

BEARING, LH (35X72X17)

09262-35045

Unavailable

10

GEAR, OIL PUMP DRIVE (NT:30)

16321-19B00

Unavailable

11

PIN (4X13.8)

04221-04089

$1.49

12

PISTON

12111-02C01-0F0

$69.06

12

PISTON SET (OS:0.5) | OPT This part replaces 12111-02C01-050.

12100-02C00-050

$140.32

12

PISTON SET (OS:1.0) | OPT This part replaces 12111-02C01-100.

12100-02C00-100

Unavailable

13

RING SET, PISTON

12140-02C10

$38.17

13

RING SET, PISTON (OS:0.5) | OPT

12140-02C10-050

Unavailable

13

RING SET, PISTON (OS:1.0) | OPT

12140-02C10-100

Unavailable

14

PIN, PISTON

12151-18902

$13.67

15

RING

09381-14001

$1.49
