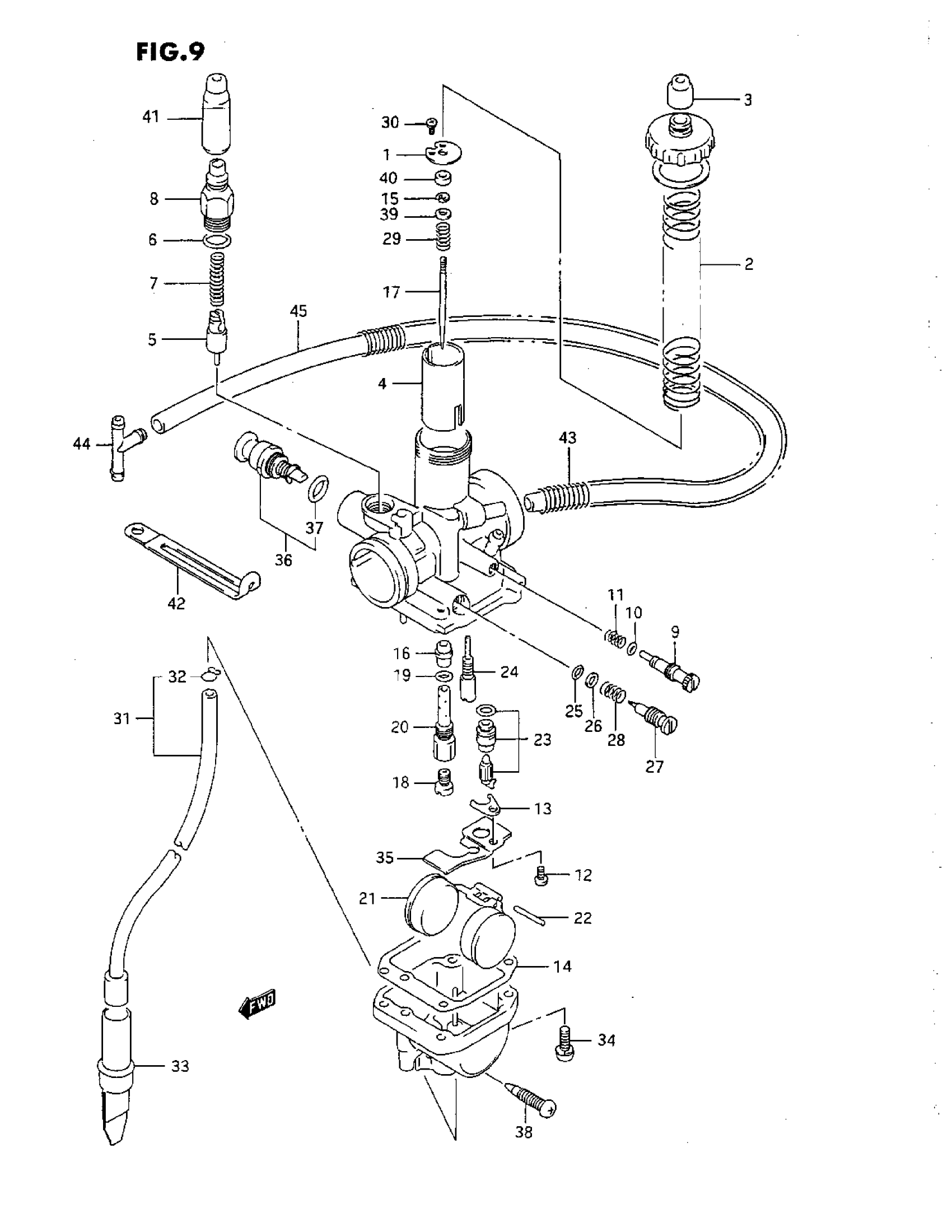

Suzuki LT-F160 (1993) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY This part replaces 13200-02C03.

13200-02C04

$218.53

1

SEAT, SPRING

13373-05230

$7.37

2

SPRING

13573-18901

$9.33

3

.CAP This part replaces 13681-04010.

13681-04011

$4.93

4

VALVE, PISTON (CA:2.5)

13551-02C00

$86.82

5

PLUNGER

13411-18910

$20.06

6

O-RING

13278-02330

$2.82

7

SPRING

13417-01010

$4.62

8

CAP, PLUNGER

13418-02330

$11.38

9

SCREW

13267-24500

$10.55

10

O-RING

13295-33010

$4.48

11

SPRING

13268-35010

$4.48

12

SCREW This part replaces 02112-03063.

02112-0306B

$1.59

13

PLATE

13373-46710

$6.17

14

GASKET

13251-05320

$7.69

15

E RING

13394-10010

$5.45

16

JET, NEEDLE (0-1)

09494-00540

$25.33

17

NEEDLE, JET (5FU96-3)

13383-02C01

$19.15

18

JET, MAIN (87.5)

09491-87005

$11.38

19

.O RING This part replaces 13246-43010.

13246-43011

$4.34

20

PIPE, BLEEDER

13385-41B00

$35.20

21

FLOAT

13250-05230

$26.91

22

.PIN, FLOAT

13254-01010

$3.62

23

VALVE ASSY, NEEDLE

13370-02C00

$73.80

24

JET, PILOT (22.5) This part replaces 09492-22003.

09492-22008

$14.85

25

O-RING This part replaces 13295-29900.

13295-29901

$4.34

26

GASKET

13291-29900

$1.98

27

SCREW, PILOT (2 7/8) This part replaces 13279-47080.

13279-47070

$13.36

28

.SPRING (NT:45)

13268-47070

$4.34

29

SPRING

13388-47010

$6.91

30

SCREW

13601-05230

$3.37

31

VALVE ASSY, CHECK

13520-02C01

$50.10

32

CLIP

13671-05A40

$3.71

33

CAP,OVER FLOW This part replaces 13680-19B01.

13680-19B02

$13.57

34

SCREW

13601-04148

$2.81

35

PLATE

13259-18900

$7.53

36

PLUNGER ASSY, STARTER

13439-18911

$51.93

37

O-RING

13278-02330

$2.82

38

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

39

WASHER

13382-47010

$3.56

40

RING

13387-47010

$7.22

41

CAP

13681-33010

$9.32

42

CLAMP(L:80) This part replaces 09404-06418.

09404-06036

$1.74

43

SPRING This part replaces 09440-13020.

09440-13051

$10.76

44

UNION, 3 WAY

09367-08004

$4.83

45

HOSE(5X8.2X600) This part replaces 09359-50823-600.

09359-50824-600

$7.98
