2016 Suzuki LT-A750XPL6 Secondary Drive Diagram

← All diagrams

Find the part on the Secondary Drive diagram for your 2016 Suzuki LT-A750XPL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

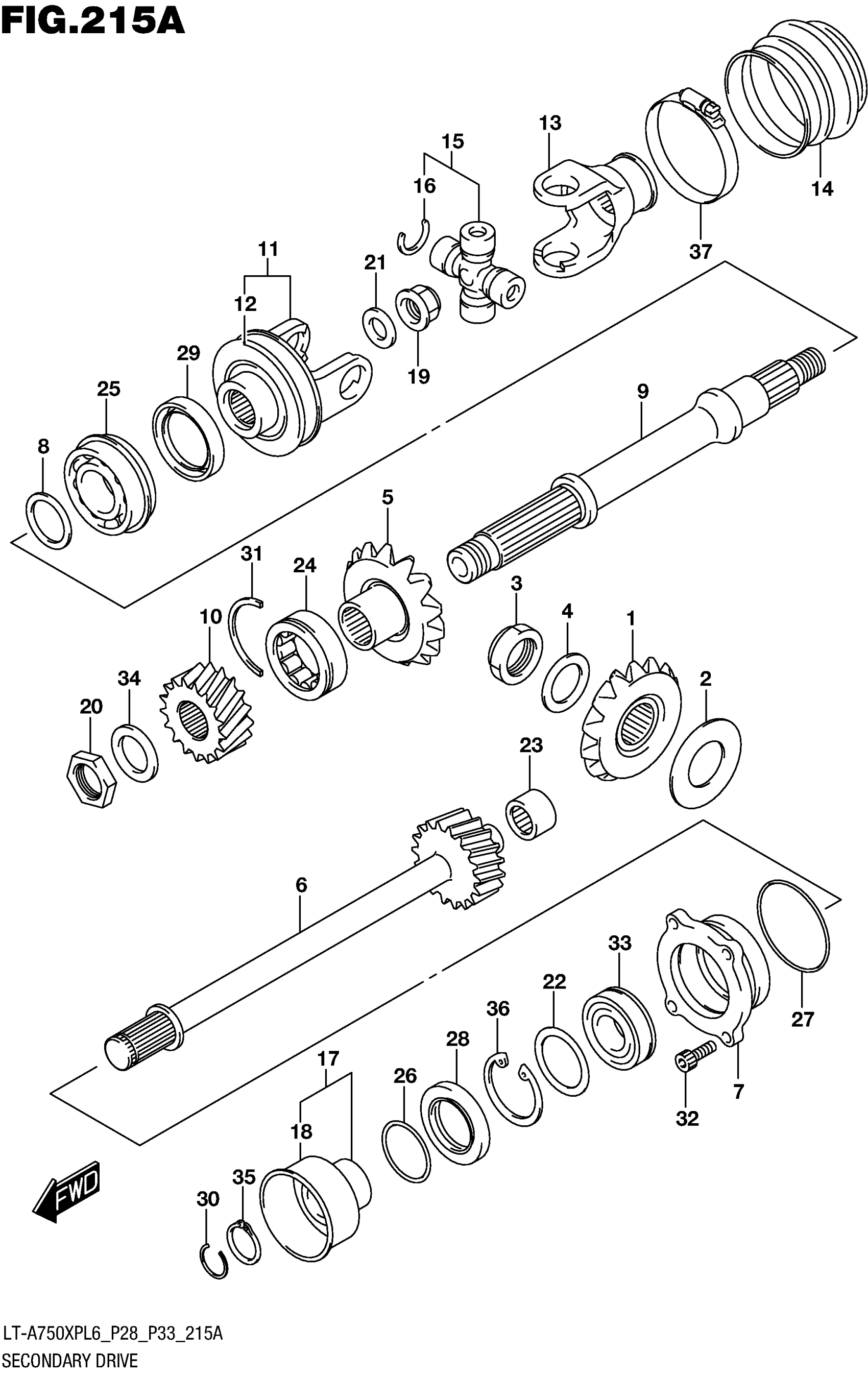

2016 Suzuki LT-A750XPL6 Secondary Drive Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, SEC DRIVE BEVEL (NT:15)

24911-31G00

1
Out of stock

2

SHIM SET,SEC DRIVE BEVEL | T:0.55/0.575/0.60/0.

24935-03811

1
Out of stock

2

SHIM SET,SEC DRIVE BEVEL | 0.675/0.70/0.725/0.7

24935-03811

1
Out of stock

2

SHIM SET,SEC DRIVE BEVEL | 0.825/0.85/0.875/0.9

24935-03811

1
Out of stock

2

SHIM SET,SEC DRIVE BEVEL | 0.975/1.00/1.025/1.0

24935-03811

1
Out of stock

2

SHIM SET,SEC DRIVE BEVEL | 1.125/1.15/1.175/1.2

24935-03811

1
Out of stock

2

SHIM SET,SEC DRIVE BEVEL | 1.275/1.30

24935-03811

1
Out of stock

3

NUT

09140-20012

1
Out of stock

4

SHIM (20X32X1)

09181-20223

1
Out of stock

5

GEAR, SEC DRIVEN BEVEL (NT:17

24921-31G10

1
Out of stock

6

SHAFT,SEC DRIVEN OUTPUT FR (N

24961-31G40

1
Out of stock

7

HOUSING, FR OUTPUT SHAFT BRG

24965-31G00

1
Out of stock

8

SHIM SET,SEC DRIVEN BEVEL | T:0.55/0.575/0.60/0.

24945-03811

1
Out of stock

8

SHIM SET,SEC DRIVEN BEVEL | 0.675/0.70/0.725/0.7

24945-03811

1
Out of stock

8

SHIM SET,SEC DRIVEN BEVEL | 0.825/0.85/0.875/0.9

24945-03811

1
Out of stock

8

SHIM SET,SEC DRIVEN BEVEL | 0.975/1.00/1.025/1.0

24945-03811

1
Out of stock

8

SHIM SET,SEC DRIVEN BEVEL | 1.125/1.15/1.175/1.2

24945-03811

1
Out of stock

8

SHIM SET,SEC DRIVEN BEVEL | 1.275/1.30/1.325/1.3

24945-03811

1
Out of stock

9

SHAFT,SEC DRIVEN OUTPUT RR

24971-31G10

1
Out of stock

10

GEAR, SEC DRIVEN OUTPUT

24972-31G20

1
Out of stock

10

(NT:18)

24972-31G20

1
Out of stock

11

YOKE, RR DRIVE OUTPUT

27130-31G10

1
Out of stock

12

.FLANGE, OUTPUT YOKE BOOT

27592-31G30

1
Out of stock

13

YOKE, PROP SHAFT JOINT RR

27141-31G00

1
Out of stock

14

BOOT, REAR OUTPUT JOINT This part replaces 27153-31G00.

27153-31G01

1
Out of stock

15

JOINT SET, UNIVERSAL RR This part replaces 27200-73813.

27200-73814

1
Out of stock

16

.SNAP RING

09380-25005

4

$1.81

In stock

17

COLLAR, FRONT DRIVE

27590-31G00

1
Out of stock

18

.PLATE, OUTPUT OIL SEAL

27592-31G00

1
Out of stock

19

NUT

09159-16003

1
Out of stock

20

NUT

09159-22005

1
Out of stock

21

WASHER (16X30X3)

09160-16026

1
Out of stock

22

SHIM (40X52X1)

09181-40195

1
Out of stock

23

BEARING (25X37X17)

09263-25068

1
Out of stock

24

BEARING (30X50X17)

09263-30050

1
Out of stock

25

BEARING (25X52X20.6)

09267-25014

1
Out of stock

26

O RING (D:1.9,ID:24.5)

09280-25005

1
Out of stock

27

O RING (D:3.5,ID:65.2)

09280-57002

1
Out of stock

28

OIL SEAL (34X52X9)

09283-34008

1
Out of stock

29

OIL SEAL (34X52X9)

09283-34008

1
Out of stock

30

SNAP RING

09381-21002

1
Out of stock

31

C RING

09390-50002

1
Out of stock

32

BOLT

07130-0620A

4
Out of stock

33

BEARING (25X52X15)

09262-25003

1
Out of stock

34

WASHER

08211-22365

1
Out of stock

35

CIRCLIP

08331-31259

1
Out of stock

36

CIRCLIP

08331-41529

1
Out of stock

37

CLAMP

09402-00512

1
Out of stock
