2016 Suzuki LT-A750XPL6 Front Drive Shaft Diagram

← All diagrams

Find the part on the Front Drive Shaft diagram for your 2016 Suzuki LT-A750XPL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

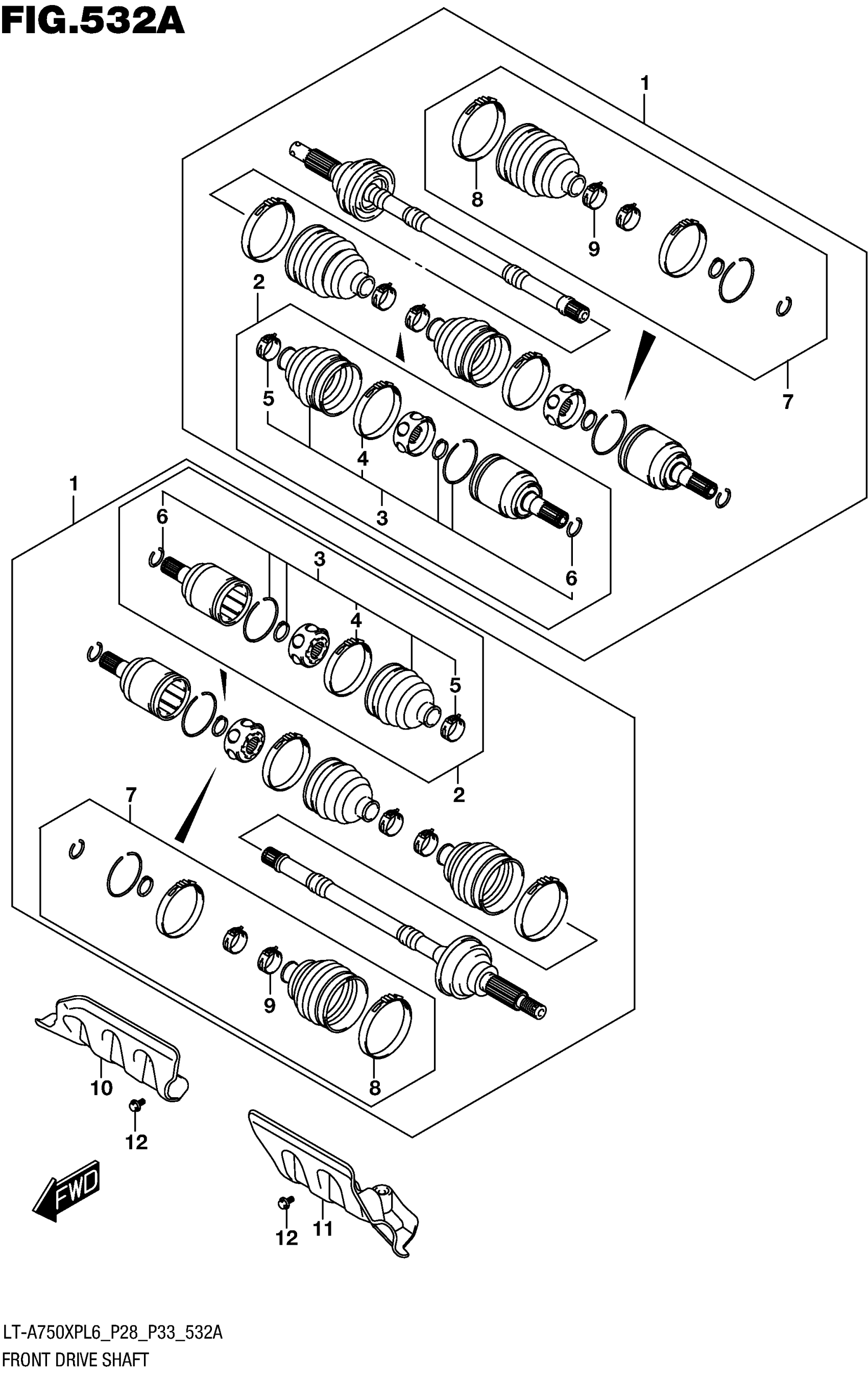

2016 Suzuki LT-A750XPL6 Front Drive Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

2

$368.83

In stock

2

.JOINT SET

54933-31G21

2

$300.88

In stock

3

..BOOT SET, INNER

54931-31G21

2

$119.03

In stock

4

...BAND, BOOT

44121-31G50

2

$5.46

In stock

5

...BAND, BOOT

44124-31G20

2

$8.41

In stock

6

...CIRCLIP

54925-19B01

2

$7.22

In stock

7

.BOOT SET, OUTER

54930-31G21

2

$152.95

In stock

8

..BAND, BOOT

44121-31G40

2

$10.62

In stock

9

..BAND, BOOT

44124-31G20

2

$8.41

In stock

12

BOLT (6X12)

09111-06085

4
Out of stock
