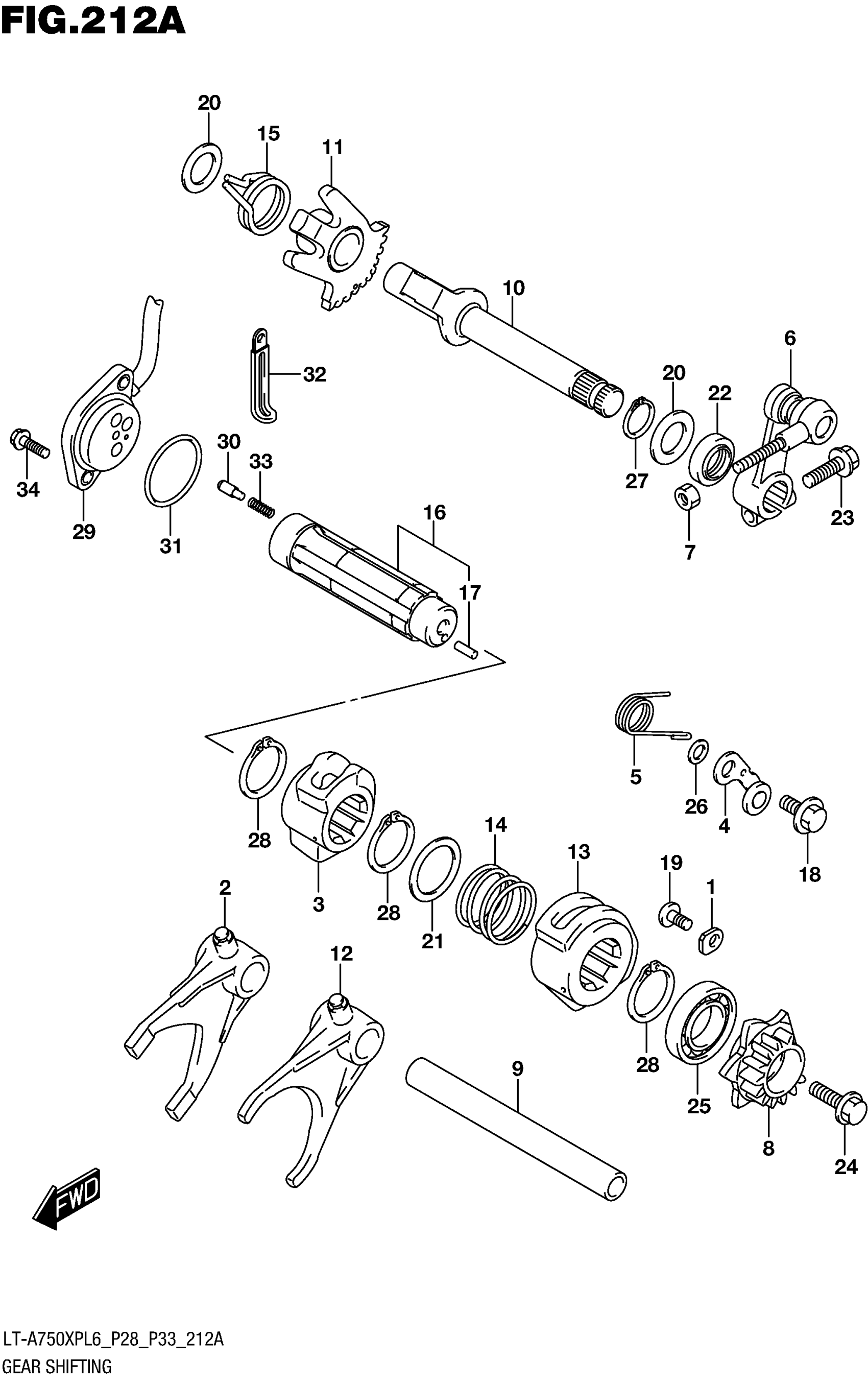

Suzuki LT-A750XPL6 (2016) GEAR SHIFTING Diagram

#

Description
Price

1

RETAINER, SUB T/M SHIFT CAM

24741-21A00

$2.80

2

FORK, REVERSE GR SHIFT

25240-31G10

$67.61

3

CAM,REVERSE GEAR SHIFT

25321-31G00

$92.30

4

STOPPER, SHIFT CAM

25350-31G00

$11.02

5

SPRING,SHIFT

25355-35F01

$3.73

6

ARM,SELECT

25360-31G10

$90.32

7

NUT

08310-0006A

$1.83

8

PLATE, GR SHIFT CAM STOPPER

25381-31G00

$30.30

8

(NT:16)

25381-31G00

$30.30

9

SHAFT, SUB T/M GEAR SHIFT

25411-38A00

$33.02

10

SHAFT, SUB T/M SHIFT NO.2 This part replaces 25510-31G00.

25510-31G01

$101.72

11

GEAR, SUB T/M SHIFT (NT:32)

25540-31G00

$23.28

12

FORK, SUB T/M GEAR SHIFT

29510-31G10

$101.90

13

CAM, SUB T/M GEAR SHIFT

29611-31G00

$86.47

14

SPRING, SUB T/M SHIFT FORK

29612-31G00

$3.70

15

SPRING, SHIFT ARM RETURN

29613-31G00

$7.95

16

SHAFT, SUB T/M GEAR SHIFT

29620-31G01

Unavailable

17

PIN (4X13.8)

04221-04089

$1.10

18

BOLT (6X14.3)

09111-06041

$2.63

19

SCREW (6X12)

09125-06122

$2.54

20

SHIM (14X24X1)

09181-14195

$3.30

21

SHIM (25X32X1)

09181-25139

$2.80

22

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.04

23

BOLT

01550-0620A

$1.97

24

BOLT

01550-0620A

$1.97

25

BEARING

08110-69040

$44.68

26

WASHER

08211-06121

$1.56

27

CIRCLIP

08331-3114A

$1.89

28

CIRCLIP

08331-31259

$2.70

29

BASE ASSY, GEAR SHIFT TERM

37720-31G00

$126.22

30

PIN (5X15.5)

09209-05011

$2.02

31

O RING (D:2.4,ID:35.5)

09280-35006

$2.80

32

CLAMP (L:45)

09404-06429

$1.82

33

SPRING

09440-04010

$1.52

34

BOLT

07120-0516A

$1.72
