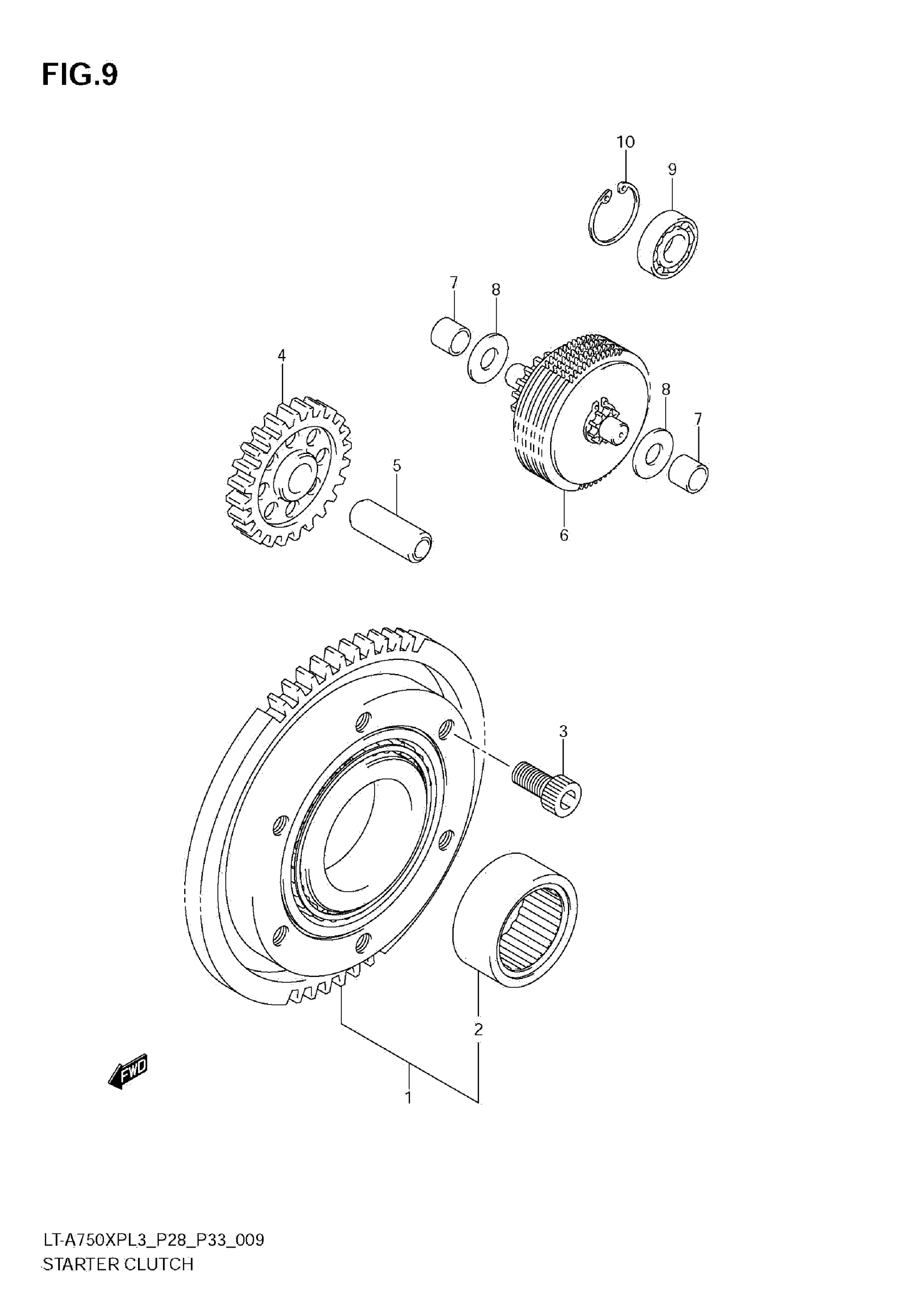

Suzuki LT-A750XPL3 (2013) STARTER CLUTCH Diagram

#

Description
Price

1

CLUTCH SET, STARTER (NT:73)

12600-31810

$386.90

2

BEARING (35X45X20)

09263-35042

$53.02

3

BOLT (8X20)

09106-08106

$2.80

4

GEAR, STARTER IDLE NO.2 (NT:27)

12612-31G00

$98.00

5

PIN (8X12X33)

09206-12007

$6.25

6

LIMITER ASSY, STARTER IDLE GEAR (NT:14/57)

12600-31G01

$200.20

7

BUSH, LIMITER GEAR SHAFT

12618-31G00

$3.69

8

WASHER

08211-10221

$1.97

9

BEARING (12X28X8)

09262-12001

$16.90

10

CIRCLIP

08331-41289

$2.92
