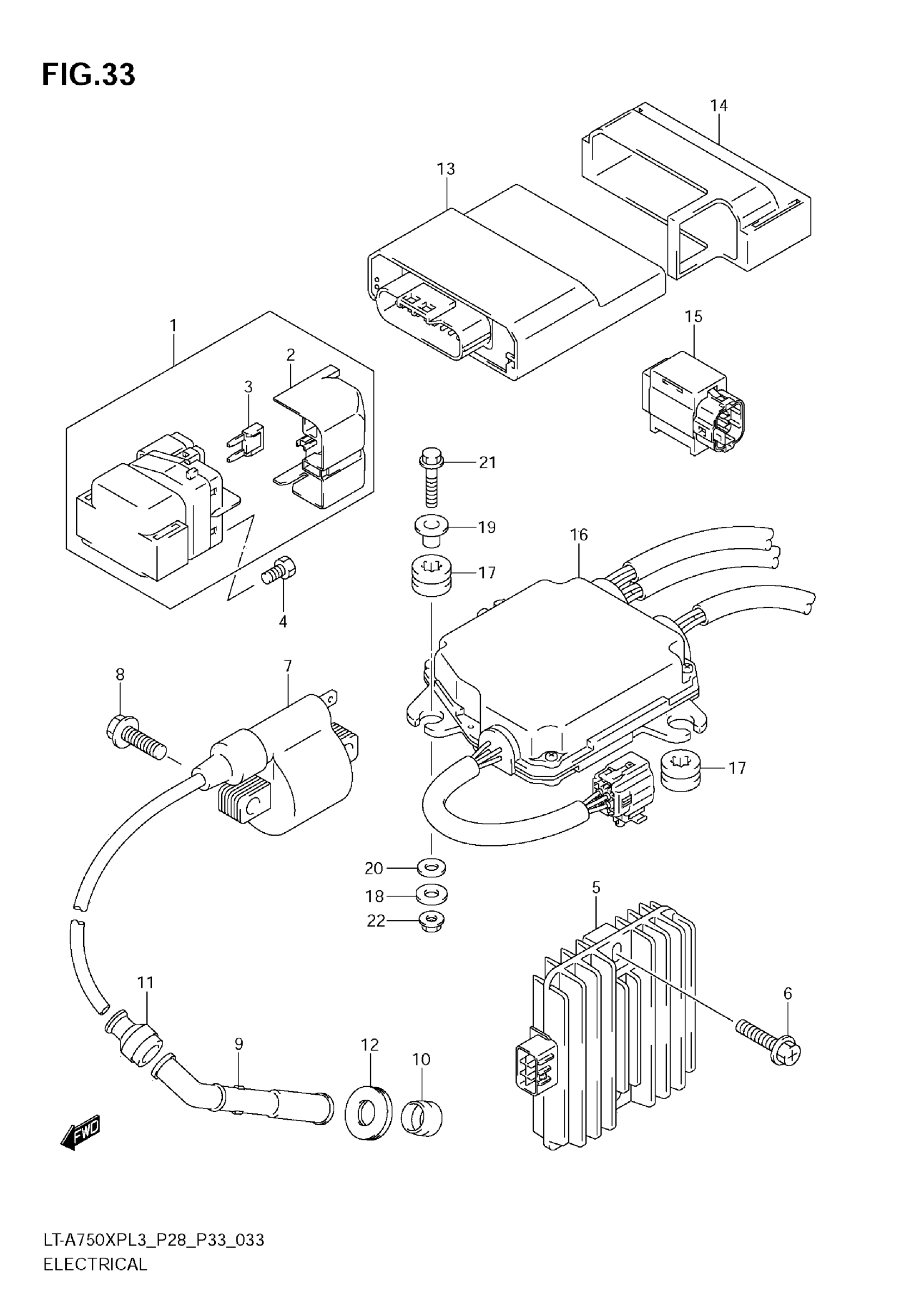

Suzuki LT-A750XPL3 (2013) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR This part replaces 31800-41G00.

31800-41G10

$88.15

2

COVER

31861-38G00

$5.52

3

FUSE (30A)

09481-30501

$2.42

4

SCREW (6X8)

09128-06013

$1.28

5

RECTIFIER ASSY

32800-42F00

$225.79

6

BOLT

02162-0625B

$2.65

7

COIL ASSY, IGNITION

33410-19B10

$94.08

8

BOLT

01550-0620B

$2.44

9

CAP ASSY,SPARK PLUG

33510-17G00

$32.01

10

SEAL, SPARK PLUG CAP

33541-23E10

$6.45

11

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.15

12

COVER,SPARK PLUG CAP

33543-33E01

$4.34

13

CONTROL UNIT,FI This part replaces 32920-31G40.

32920-31G42

$788.30

14

HOLDER, FI CONTROL UNIT

32980-31G00

$17.22

15

SENSOR ASSY,FUEL CUT

33960-06G10

$86.01

16

CONTROL UNIT,EP This part replaces 32910-31G00.

32910-31G01

$1,267.58

17

CUSHION, EPS

32912-31G00

Unavailable

18

WASHER (6.5X15X1.5)

09160-06094

$1.46

19

WASHER

09169-06075

$4.00

20

WASHER

09169-06076

$2.97

21

BOLT

01550-0630A

$2.38

22

NUT

08316-1006A

$2.25
