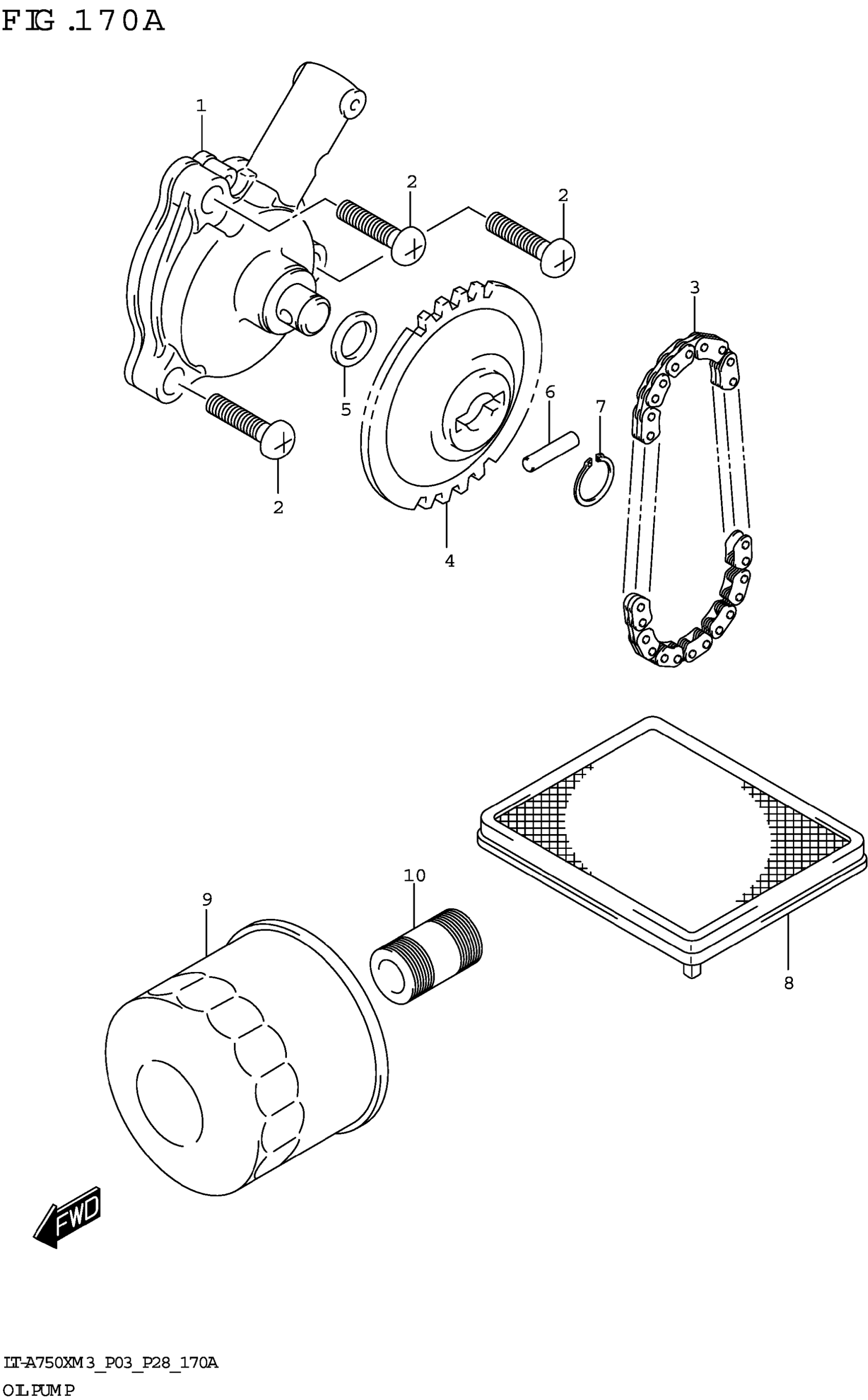

Suzuki LT-A750XM3 (2023) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY,ENG OIL

16400-34K00

$153.92

2

SCREW (6X25)

09125-06035

$2.43

3

CHAIN ASSY,OIL PUMP DRIVE (82 | H2005-60M)

16310-31G00

$30.08

4

SPROCKET,OIL PUMP DRIVEN (NT: | 1)

16331-31G00

$75.48

5

SHIM (10X18X0.5)

09181-10158

$1.97

6

PIN (4X15.8)

09261-04009

$1.50

7

CIRCLIP

08331-31109

$1.77

8

STRAINER,ENG OIL

16520-32E01

$12.33

9

FILTER ASSY,ENGINE OIL (P1.0)

16510-07J00

$11.99

10

UNION,OIL STAND

16591-06B01

$6.45
