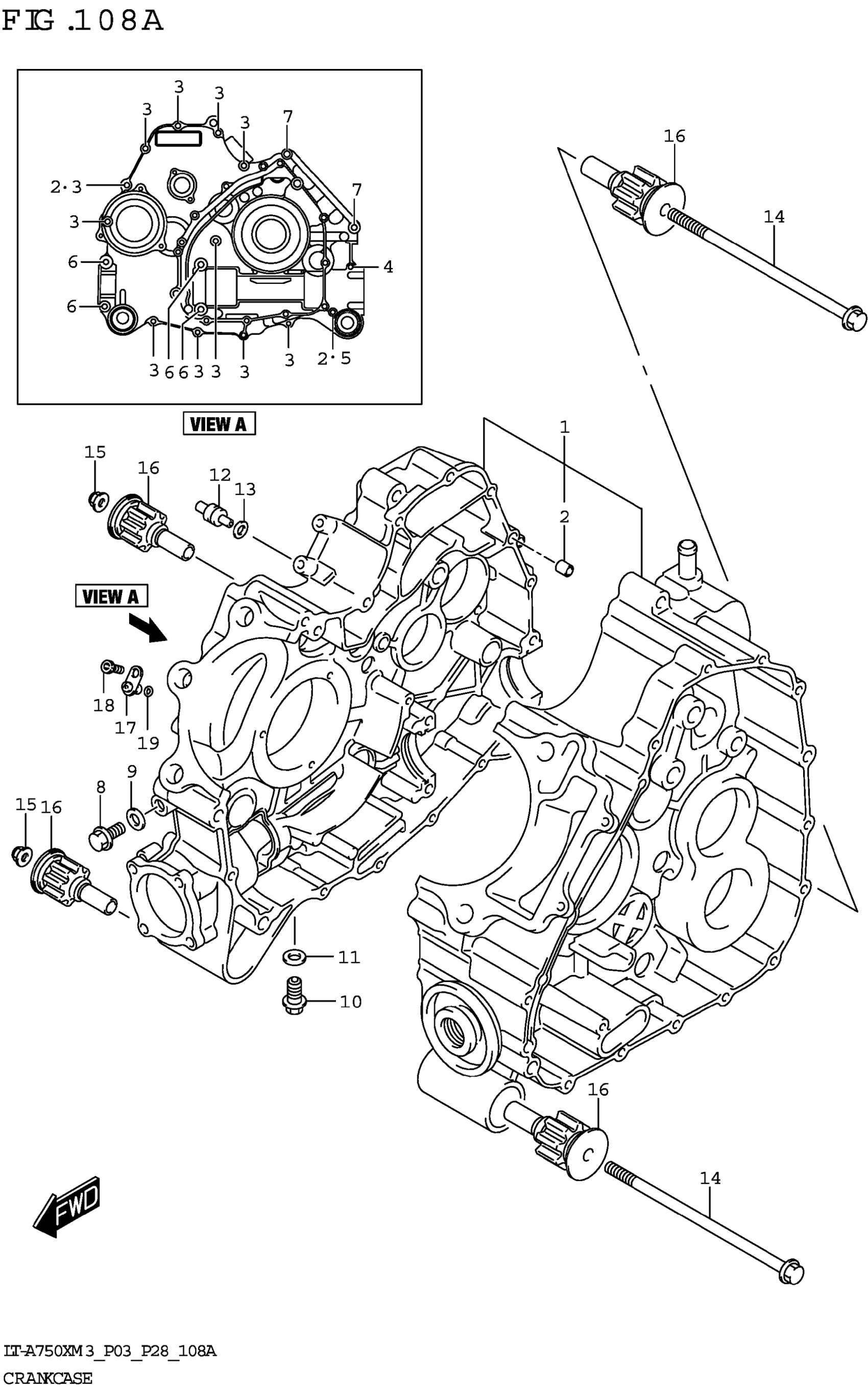

Suzuki LT-A750XM3 (2023) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11301-34860

$1,661.20

2

PIN

04211-11169

$1.77

3

BOLT

01547-0650A

$2.51

4

.BOLT

01547-0680A

$3.58

5

.BOLT

01547-0690A

$2.95

6

.BOLT

01550-0850A

$3.98

7

BOLT

01550-0875A

$3.25

8

BOLT (8X12)

01550-0812A

$2.31

9

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.64

10

PLUG, DRAIN This part replaces 09247-12102.

09247-12104

$2.73

11

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

12

JET,T/M OIL GALLERY

09493-20014

$18.33

13

O-RING (D:1.2,ID:4)

09280-04004

$1.76

14

BOLT (10X195)

09103-10118

$11.91

15

NUT (M10)

09159-10115

$3.21

16

BUSH, ENG MTG

11651-31G10

$20.67

17

JET,PISTON COOLING

11390-34K00

$101.80

18

BOLT

09106-06142

$3.38

19

O-RING (D:1.2,ID:4.7)

09280-05007

$2.08
