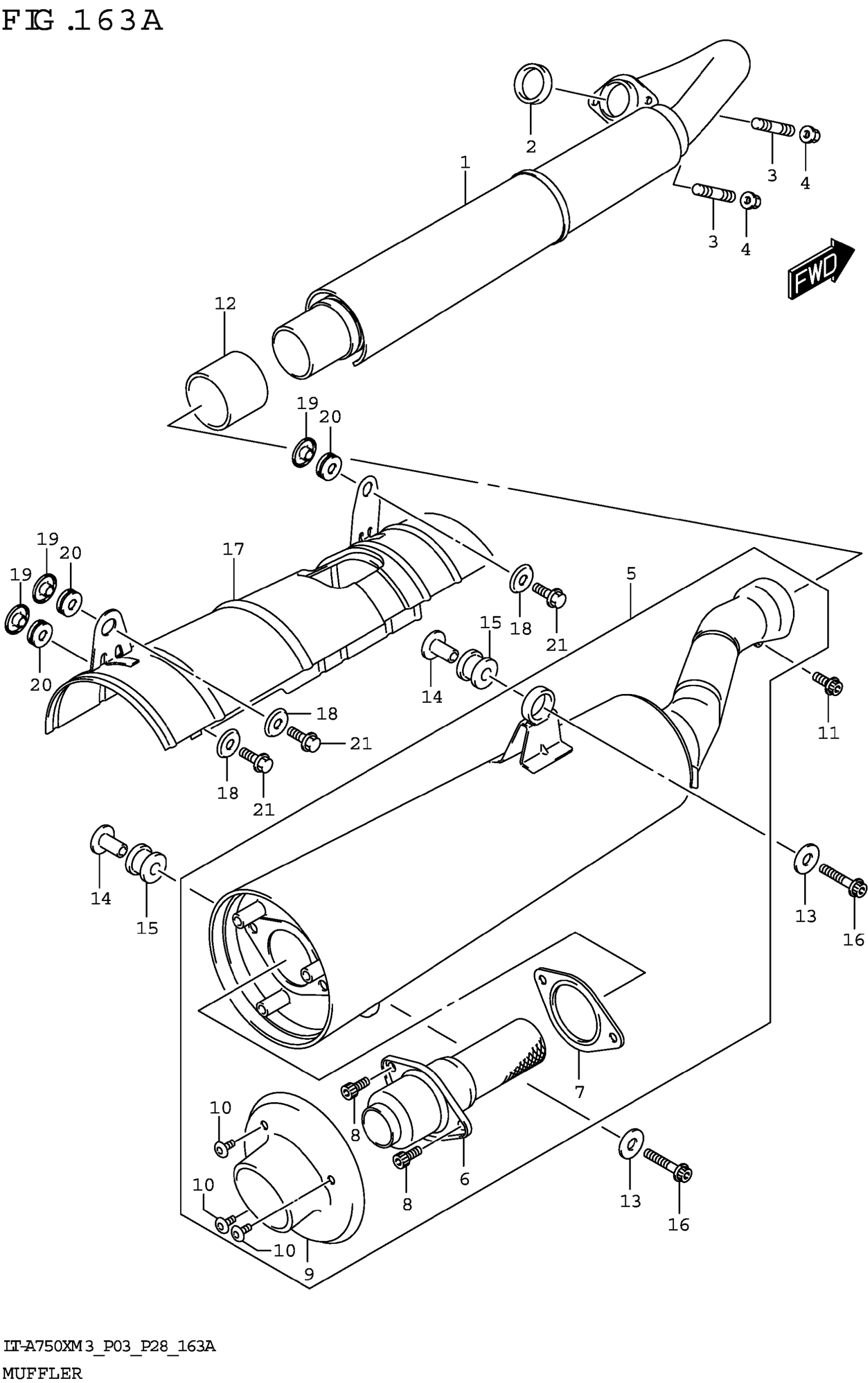

Find the part on the Muffler diagram for your 2023 Suzuki LT-A750XM3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Suzuki LT-A750XM3 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE ASSY,EXHAUST

14100-31G80

1
Out of stock

2

.GASKET,EXH PIPE

14181-31G00

1
Out of stock

3

BOLT,STUD

01421-0825A

2
Out of stock

4

NUT

08319-3108A

2
Out of stock

5

BODY,MUFFLER

14320-31G90

1
Out of stock

6

.ARRESTER

14850-31G70

1
Out of stock

7

.GASKET

14773-31G02

1
Out of stock

8

.BOLT

07130-0612B

2
Out of stock

9

.COVER,MUFFLER TAIL

14790-31G70

1
Out of stock

10

.SCREW (6X12)

09139-06027

3
Out of stock

11

BOLT

07120-0835A

1
Out of stock

12

CONNECTOR,MUFFLER JOINT

14771-31G10

1
Out of stock

13

WASHER (8.5X30X2.3)

09160-08503

2
Out of stock

14

SPACER (8.6X12X24.2)

09180-08152

2
Out of stock

15

CUSHION

09320-12071

2
Out of stock

16

BOLT

07120-0840A

2
Out of stock

17

COVER, MUF

14880-31G60

1
Out of stock

18

WASHER, EXHAUST PIPE COVER

14184-07G00

3
Out of stock

19

SPACER, EXHAUST PIPE COVER

14185-07G00

3
Out of stock

20

CUSHION

09320-08069

3
Out of stock

21

BOLT

01550-0616A

3
Out of stock
