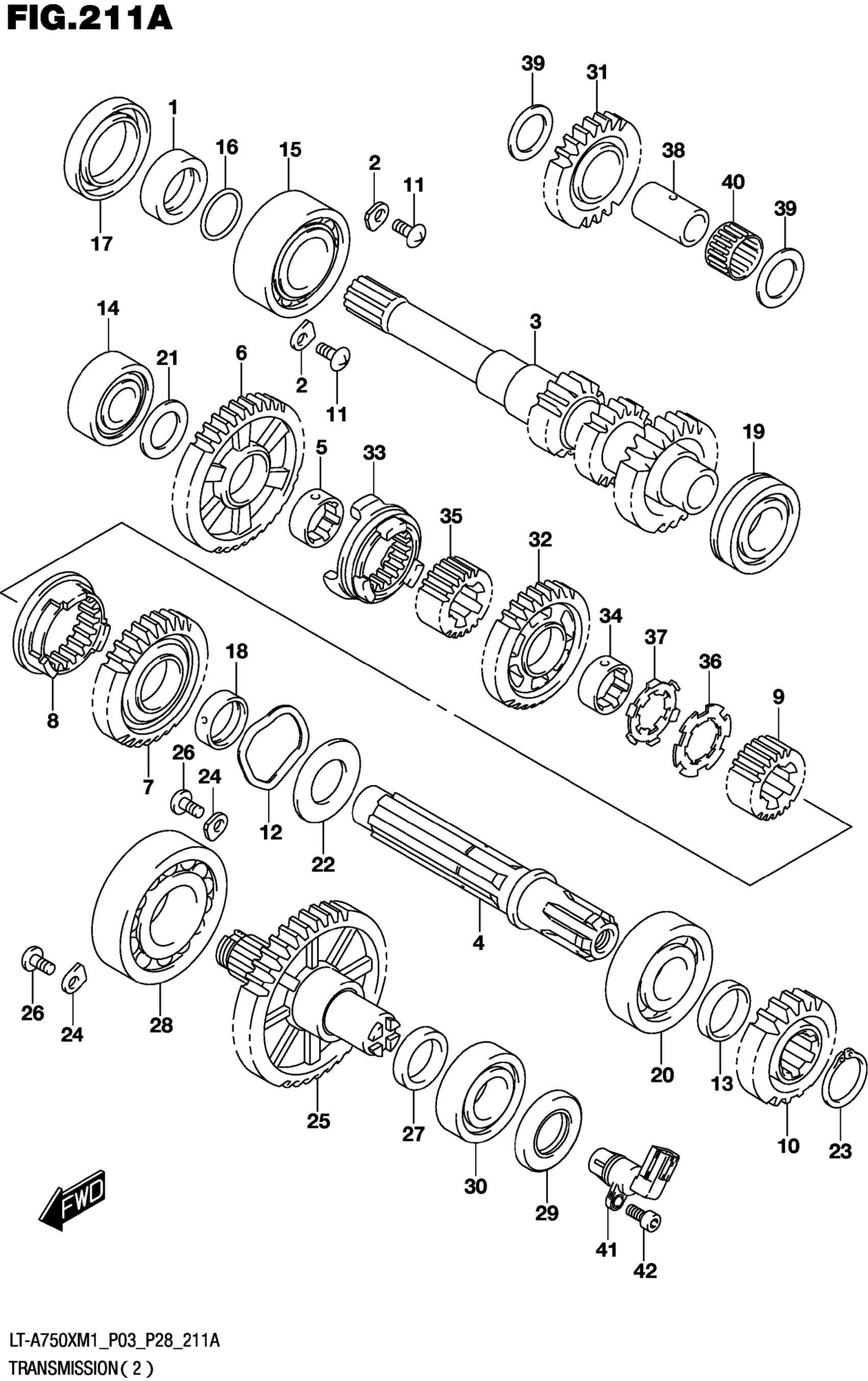

Suzuki LT-A750XM1 (2021) TRANSMISSION (2) Diagram

#

Description
Price

1

SPACER, PRIMARY SHAFT

21102-31G00

$34.45

2

RETAINER

24741-21A00

$2.80

3

SHAFT,DRIVE (NT:16/17/25)

29111-31G01

$378.73

4

SHAFT, SUB T/M COUNTER

29131-31G00

$110.28

5

BUSH, 3RD DRIVEN GEAR

29215-07G00

$25.08

6

GEAR, SUB T/M DRIVEN LOW | )

29311-31G00

$150.17

7

GEAR, SUB T/M DRIVEN HIGH | 1)

29321-31G00

$175.28

8

DOG, GEAR SHIFT HIGH

29331-31G10

$89.47

9

SPACER, REVERSE SELECT SLIDIN

29332-31G00

$49.73

10

GEAR,SUB T/M DRIVE NO.2 (NT:2 | )

29411-31G00

$94.17

11

SCREW (6X12)

09125-06122

$2.54

12

WASHER

09164-34001

$8.02

13

SPACER (25X30X7)

09180-25097

$11.10

14

BEARING, DRIVE SHAFT, LH This part replaces 09262-20081.

09262-20139

$48.87

15

BEARING (30X62X23.8)

09267-30005

$129.92

16

.O-RING (D:2.4,ID:24.7)

09280-25004

$2.01

17

OIL SEAL (38X56X7)

09283-38025

$28.75

18

BUSH

24252-19F00

$19.32

19

BEARING (25X52X15)

09262-25003

$22.40

20

BEARING (25X62X17)

09262-25073

$23.39

21

WASHER

08211-20363

$2.87

22

WASHER

08211-25463

$4.23

23

CIRCLIP

08331-31259

$2.70

24

RETAINER

24741-21A00

$2.80

25

SHAFT,SUB T/M OUTPUT (NT:40)

29120-31G00

$280.50

26

SCREW (6X12)

09125-06122

$2.54

27

SPACER (25X34X5.5)

09180-25083

$15.42

28

BEARING,35X80X21 (35X80X21)

09262-35076

$80.07

29

SEAL,OIL (25X45X5)

09283-25076

$9.33

30

BEARING (25X52X15)

09262-25003

$22.40

31

GEAR, REVERSE IDLE (NT:23)

24561-31G20

Unavailable

32

GEAR, REVERSE DRIVEN (NT:32)

24571-31G00

$128.95

33

DOG, SUB T/M SELECT SLIDING

24581-31G00

$97.15

34

BUSH, 3RD DRIVEN GEAR

29215-07G00

$25.08

35

SPACER, REVERSE SELECT SLIDIN

29332-31G00

$49.73

36

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.58

37

WASHER (25.1X37X2.5)

09169-25001

$2.95

38

SHAFT, REVERSE IDLE GEAR

24551-31G00

Unavailable

39

SHIM (20X30X1)

09181-20195

$2.68

40

BEARING (20X24X12.8)

09263-20060

$22.53

41

SENSOR, SPEED

34990-31G01

$105.97

42

BOLT This part replaces 07130-0616A.

07130-0616B

$2.38
