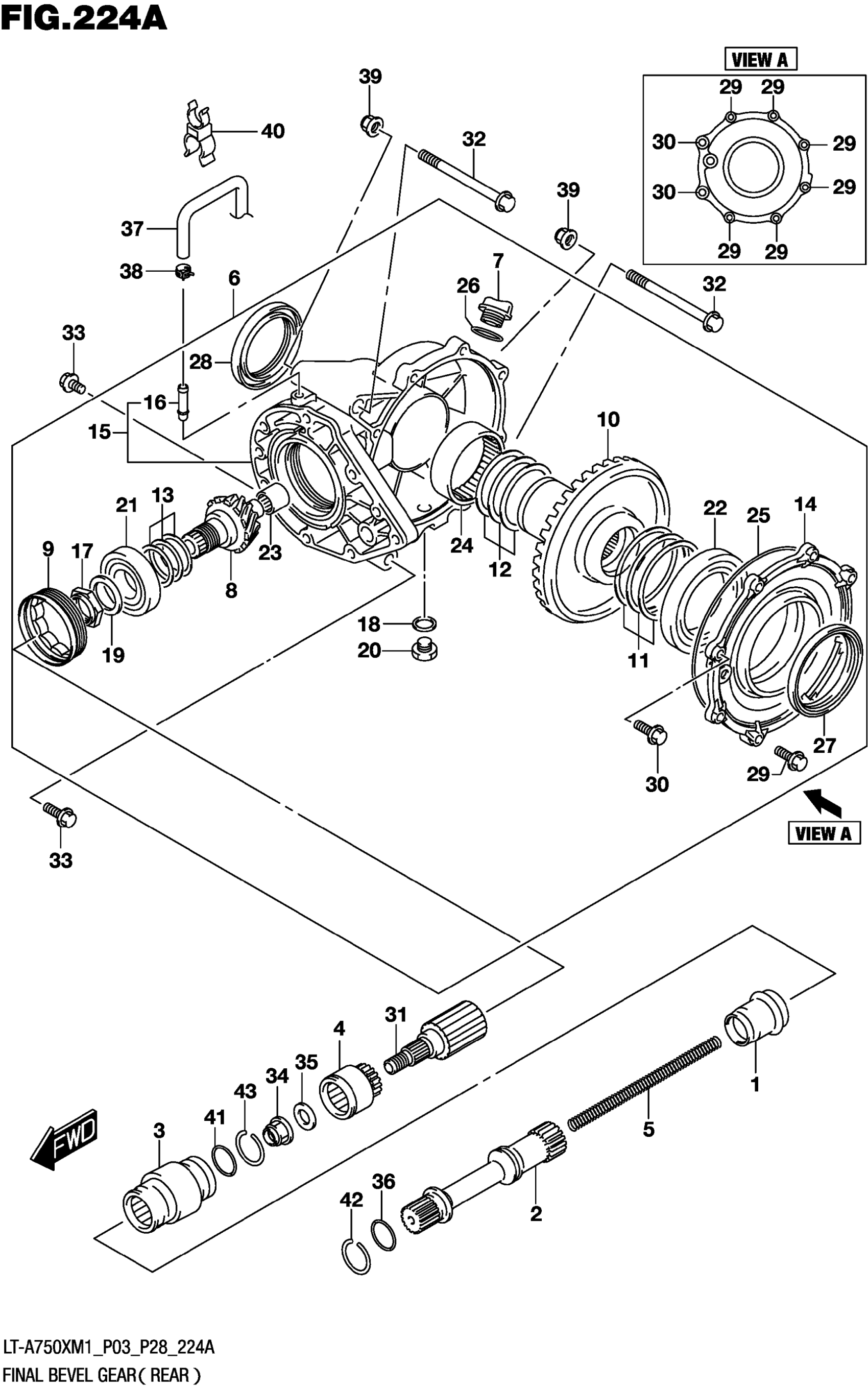

Suzuki LT-A750XM1 (2021) FINAL BEVEL GEAR (REAR) Diagram

#

Description
Price

1

BOOT,JOINT SHAFT This part replaces 27153-31G41.

27153-31G42

$8.68

2

SHAFT, REAR PROPELLER

27155-34K00

$60.87

3

JOINT, REAR PROPELLER SHAFT

27157-34K00

$64.22

4

COUPLING, REAR OUTPUT SHAFT

27171-34K00

$68.86

5

SPRING,REAR PROPELLER SHAFT

27192-31G10

$5.63

6

CASE ASSY, REAR FINAL GEAR

27410-31G50

$1,591.75

7

PLUG

09259-20008-XC0

$6.76

8

.GEAR, RR FINAL DRIVE BEVEL | :10)

27311-31G50

$326.10

9

.STOPPER,FINAL DRIVE BEARING

27312-38F00

$59.52

10

.GEAR, RR FINAL DRIVEN (NT:36

27320-31G00

$357.50

11

.SHIM SET LH | 50/0.60) T:0.30/0.35/0.40/0.50/0.60

27326-31810

$47.27

12

.SHIM SET RH | 50/0.60) T:0.30/0.35/0.40/0.50/0.60

27327-31810

$43.95

13

.SHIM SET,FINAL DRIVE GEAR (T | 0.30/0.35/0.40/0.50/0.60) T:0.30/0.35/0.40/0.50/0.60

27445-24810

$31.82

14

.CASE, REAR FINAL GEAR LH

27451-31G10

Unavailable

15

.CASE, REAR FINAL GEAR RH

27460-31G10

Unavailable

16

..UNION

09364-08016

Unavailable

17

.NUT

09140-28006

$19.60

18

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

19

.SHIM (28X38X1)

09181-28195

$5.17

20

.PLUG

09247-14013

$2.28

21

.BEARING (28X68X18)

09262-28023

$138.97

22

.BEARING (65X100X11)

09262-65001

$152.45

23

BEARING (20X34X18)

09263-20062

$51.07

24

.BEARING (55X67X20)

09263-55003

$117.50

25

.O RING (D:2.45,ID:156)

09280-00046

$25.63

26

O-RING (D:3.1,ID:16.8)

09280-17003

$1.64

27

.OIL SEAL (59X88X8)

09283-59001

$24.19

28

.OIL SEAL (59X88X8)

09283-59001

$24.19

29

BOLT (8X35)

09103-08357

$4.53

30

.BOLT (10X45)

09103-10294

Unavailable

31

SHAFT, RR FINAL DRIVE GEAR

27594-31G80

$217.12

32

BOLT (10X110)

09103-10148

$6.26

33

BOLT (10X30)

09103-10405

$4.32

34

NUT

09159-16003

$4.33

35

WASHER (16X30X3)

09160-16026

$5.43

36

.O-RING (D:3.1,ID:19.4)

09280-20002

$1.91

37

HOSE, BREATHER

27491-31G00

$48.82

38

CLIP (ID:10)

09401-10403

$1.67

39

NUT (M10)

09159-10115

$3.21

40

CLAMP

09408-00235

$3.05

41

O RING (D:3.1,ID:34.4)

09280-35008

$2.85

42

CIRCLIP

09381-21002

$1.48

43

C-RING

09380-36005

$5.77
