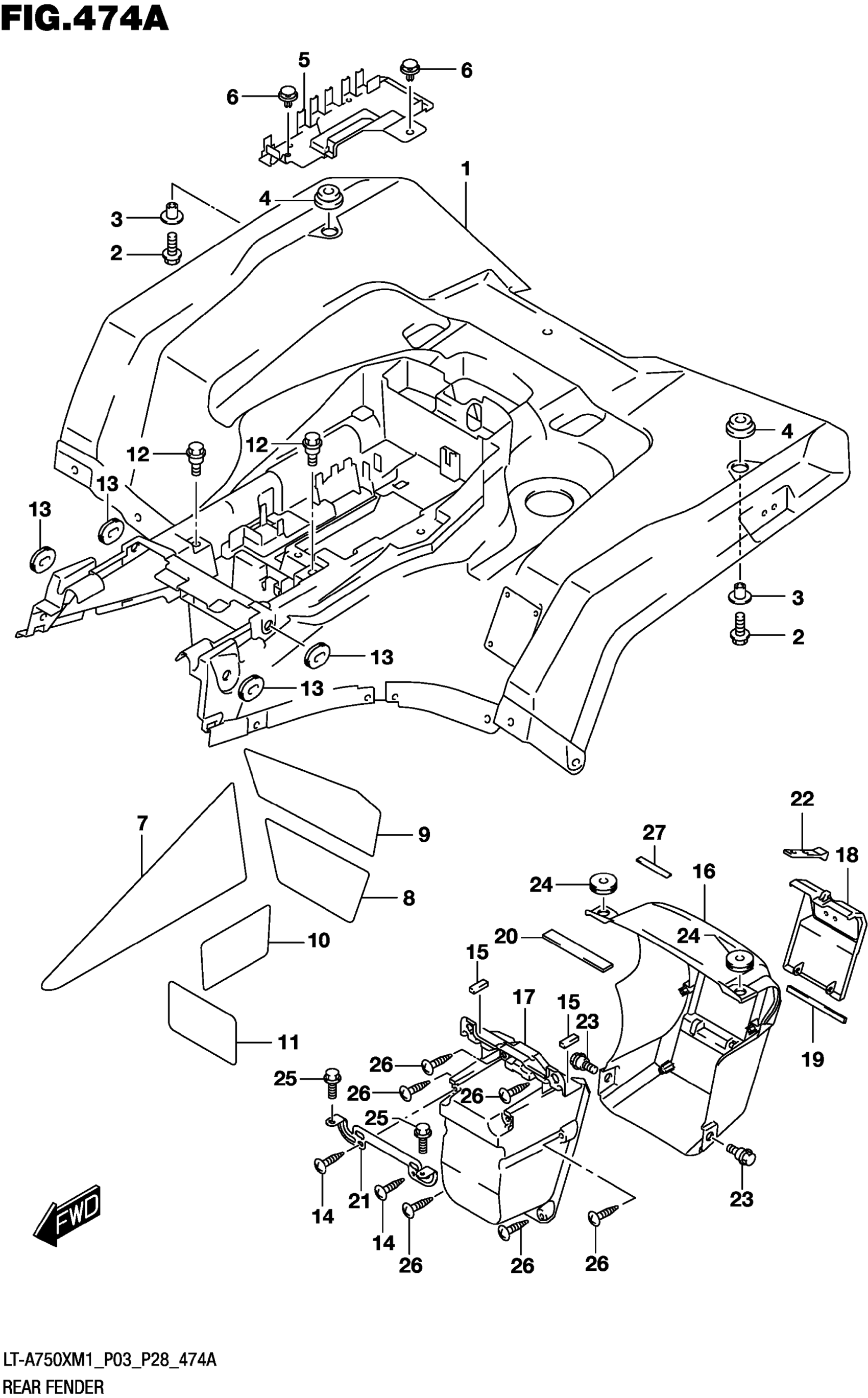

Suzuki LT-A750XM1 (2021) REAR FENDER Diagram

#

Description
Price

1-1

FENDER, REAR (RED) | BODY COLOR:YT9 This part replaces 63111-34K10-YT9.

63111-34K01-YT9

$620.73

1-2

FENDER, REAR (GREEN) | BODY COLOR:YLG This part replaces 63111-34K10-YLG.

63111-34K00-YLG

$620.73

1-3

FENDER, REAR (WHITE) | BODY COLOR:30H This part replaces 63111-34K10-30H.

63111-34K00-30H

$644.37

1-4

FENDER, REAR (CAMOUFLAGE) | BODY COLOR:QTM

63111-34K30-QTM

$1,217.37

1-5

FENDER, REAR (BRONZE) | BODY COLOR:QMA This part replaces 63111-34K50-QMA.

63111-34K40-QMA

$931.10

1-6

FENDER,REAR | BODY COLOR:QTF This part replaces 63111-34K50-QTF.

63111-34K20-QTF

$975.92

2

BOLT (6X25)

01550-0625A

$1.97

3

WASHER (6.5X24X1.6)

09169-06074

$7.49

4

CUSHION (11.5X32X12.2)

09320-11021

$3.77

5

COVER, REAR FENDER

63112-34K00

Unavailable

6

CLIP

09409-08008

$1.74

7

SHIELD, REAR FENDER

63122-34K00

$13.75

8

SHIELD, REAR FENDER

63123-34K00

$12.13

9

SHIELD, REAR FENDER

63124-34K00

$11.83

10

SHIELD, REAR FENDER

63127-34K00

$9.43

11

SHIELD, REAR FENDER

63128-34K00

$9.30

12

BOLT (6X13.5)

09111-06088

$2.19

13

CUSHION

09320-08029

$2.51

14

SCREW

03541-0620A

$2.67

15

CUSHION (10X30X6)

33652-47F00

$3.38

16

COVER, REAR This part replaces 63251-34K00.

63251-34K03

$23.23

17

BOX,INNER This part replaces 63252-34K00.

63252-34K01

$34.08

18

LID, OUTER

63253-34K01

$21.08

19

CUSHION, REAR COVER

63255-34K00

$1.62

20

CUSHION, REAR COMB NO.2

63256-34K00

$18.72

21

BRACKET, REAR COVER

63371-34K00

$24.98

22

BAND, REAR BOX

93191-09F20

$14.27

23

BOLT (6X13.5)

09111-06088

$2.19

24

CUSHION (8x26x7)

09320-08018

$2.80

25

BOLT

01550-0612A

$1.97

26

SCREW

03541-0516A

$1.37

27

CUSHION (8X50X8)

47122-17K00

$2.00
