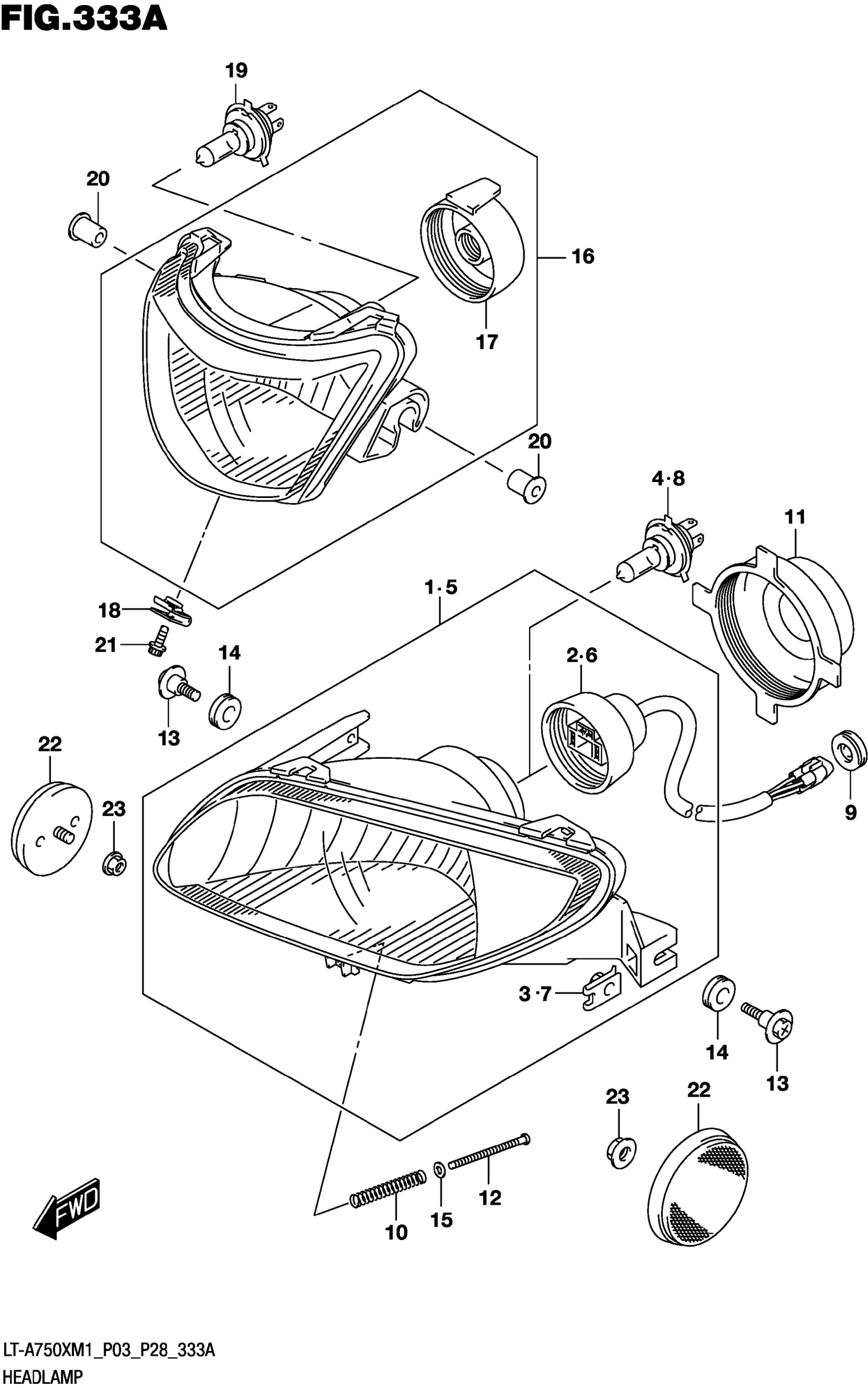

Suzuki LT-A750XM1 (2021) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY RH

35100-31G92-999

$102.70

2

.CORD ASSY RH

35171-31GM1

$30.10

3

.NUT (M6)

35157-31G90

$5.30

4

BULB (12V35/35W) This part replaces 09471-12225.

09471-12101

$64.80

5

HEADLAMP ASSY LH

35300-31G92-999

$102.70

6

.CORD ASSY LH

35171-31GH1

$38.48

7

.NUT (M6)

35157-31G90

$5.30

8

BULB (12V35/35W) This part replaces 09471-12225.

09471-12101

$64.80

9

GROMMET

09308-07011

$2.62

10

SPRING

35154-31300

$3.70

11

COVER,HEADLAMP HOUSING

35174-31G00

$10.62

12

SCREW (4X50)

09125-04031

$2.28

13

SCREW (6X22.5)

09139-06118

$3.25

14

CUSHION (10X20X10)

09320-10078

$4.16

15

WASHER

08322-0104A

$1.91

16

HEADLAMP ASSY

35100-31GB3-999

$78.87

17

.COVER

35174-31GB0

$12.10

18

NUT (M5)

09148-05052

$3.37

19

BULB (12V35/35W) This part replaces 09471-12225.

09471-12101

$64.80

20

CUSHION

09320-07020

$1.49

21

BOLT

07120-0512B

$2.61

22

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

23

NUT

08316-1005A

$2.19
