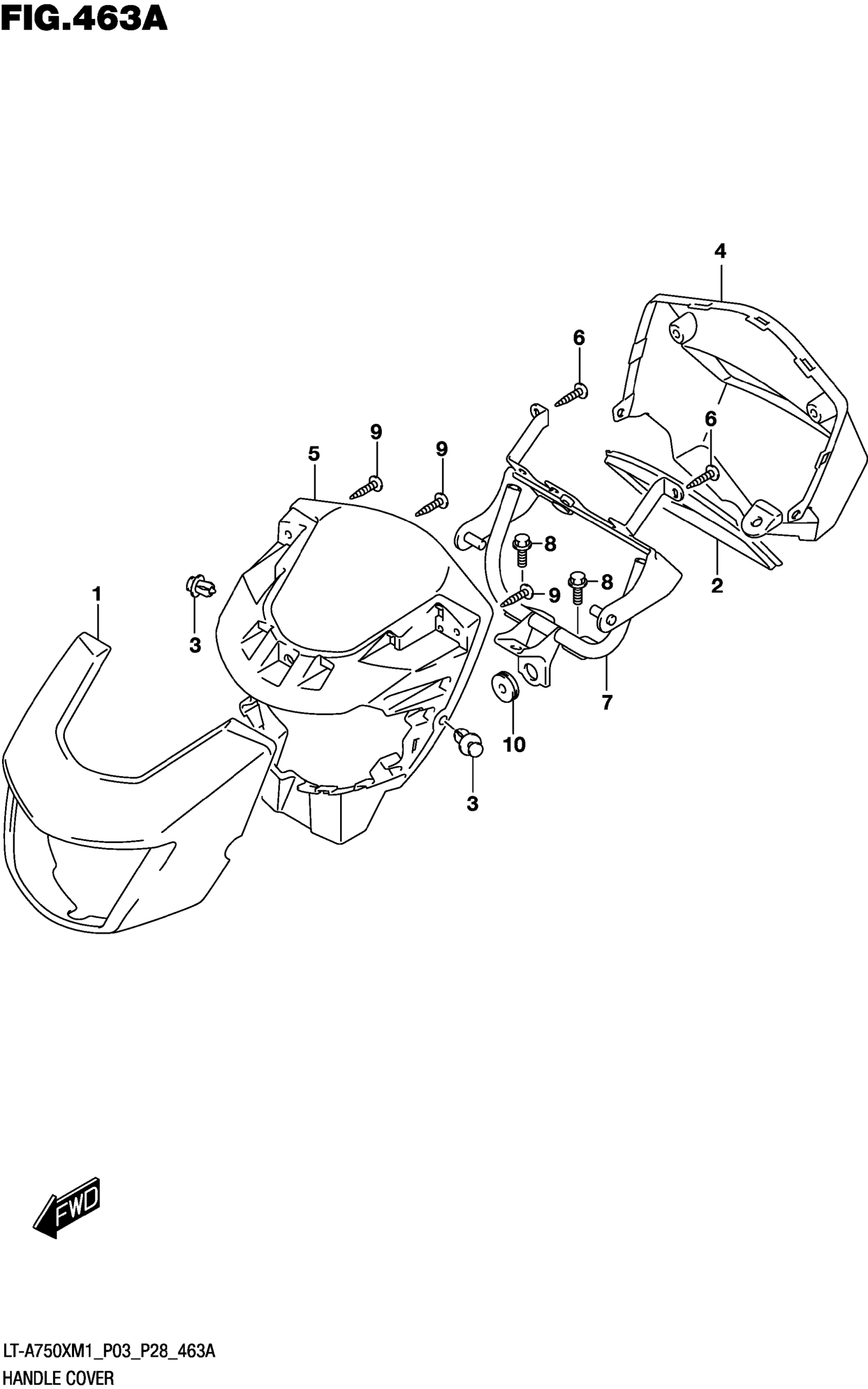

Suzuki LT-A750XM1 (2021) HANDLE COVER Diagram

#

Description
Price

1-1

COVER, HANDLE FRONT (RED) | BODY COLOR:YT9 This part replaces 56311-34K01-YT9.

56311-34K03-YT9

$17.87

1-2

COVER, HANDLE FRONT (GREEN) | BODY COLOR:YLG This part replaces 56311-34K01-YLG.

56311-34K03-YLG

$16.67

1-3

COVER,HANDLE FR | BODY COLOR:30H This part replaces 56311-34K01-30H.

56311-34K03-30H

$39.93

1-4

COVER, HANDLE FRONT (KANATI) | ) BODY COLOR:QTM This part replaces 56311-34K11-QTM.

56311-34K12-QTM

$130.35

1-5

COVER,HANDLE FRONT (BRONZE) | BODY COLOR:QMA

56311-34K21-QMA

$121.62

1-6

COVER, HANDLE FRONT (GRAY) | BODY COLOR:QTF This part replaces 56311-34K21-QTF.

56311-34K22-QTF

$104.40

2

MOLDING, HANDLE COVER

56317-34K00

$8.48

3

CLIP

09409-06328

$3.23

4

COVER,HANDLE RE This part replaces 56321-34K01.

56321-34K04-291

$13.20

5

COVER,HANDLE LO This part replaces 56331-34K01.

56331-34K04-291

$21.40

6

SCREW

03141-0525A

$1.49

7

BRACE,HANDLE COVER This part replaces 56160-34K00.

56160-34K20

$84.29

8

BOLT (8X12)

01550-0812A

$2.32

9

SCREW

03541-0512A

$1.49

10

CUSHION (8x26x7)

09320-08018

$3.04
