Description

Price

1

HUB,FRONT WHEEL This part replaces 54110-31G00.

54110-31G10

$137.30

2

FRONT WHEEL (BLACK)

55310-34K10-291

$250.40

3

NUT

09140-10021

$2.03

4

WASHER, HUB

64723-09F00

$13.35

5

NUT

09141-18010

$10.11

6

PIN

04111-4035A

$1.49

7

CAP,WHEEL CENTER

54725-09F01

$9.95

8

DISC, FRONT BRAKE

59211-31G20

$36.10

9

BOLT (8X21)

09106-08160

$3.57

10

COVER, FRONT DISC RH

59231-31G11

$21.70

11

COVER, FRONT DISC LH

59431-31G11

$21.32

12

BOLT (6X12)

09111-06085

$4.54

13

TIRE,FRONT (AT25X8-12) | AT489,CARLISLE

55110-31G30

$300.50

14

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

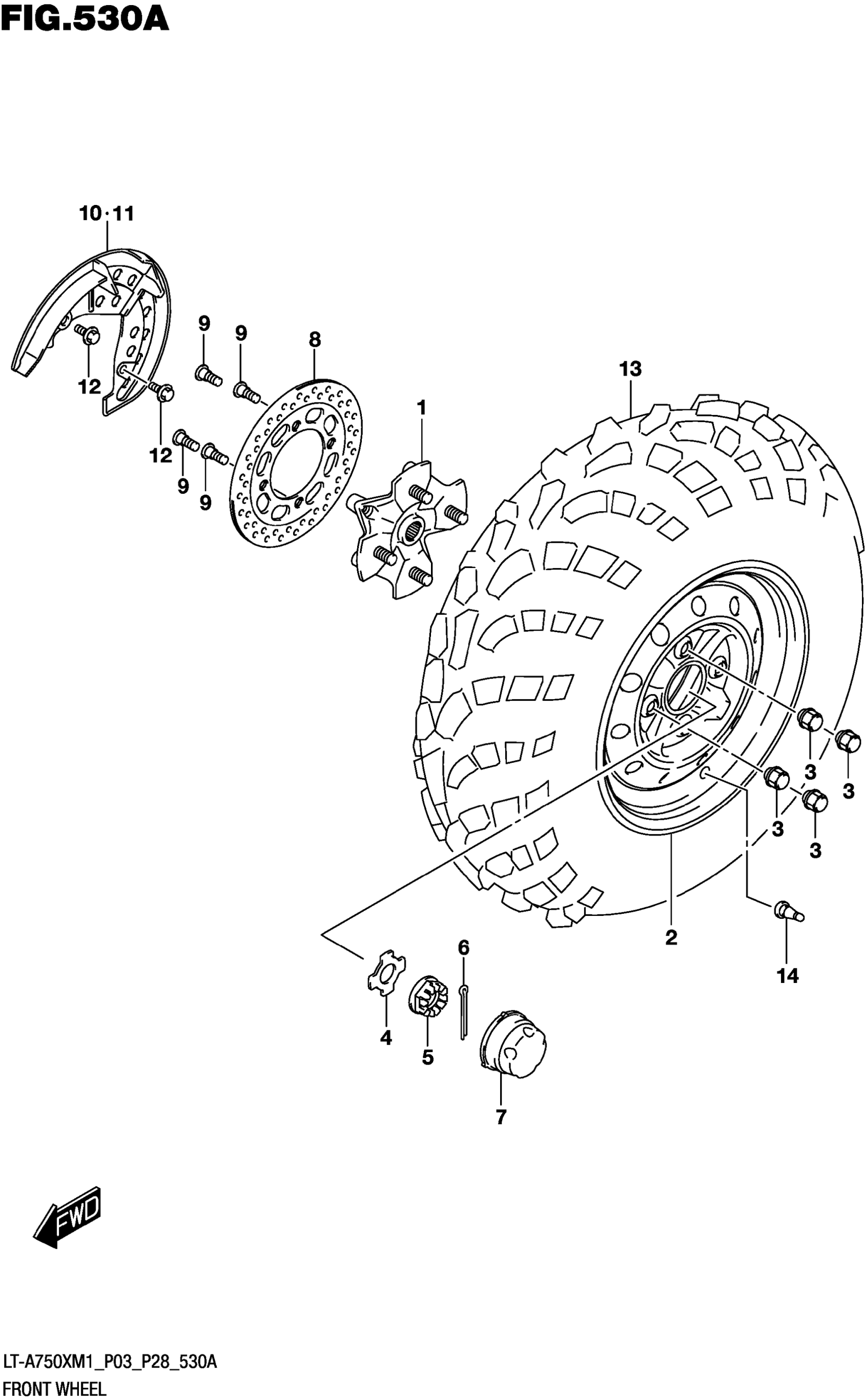

Suzuki LT-A750XM1 (2021) FRONT WHEEL Diagram
