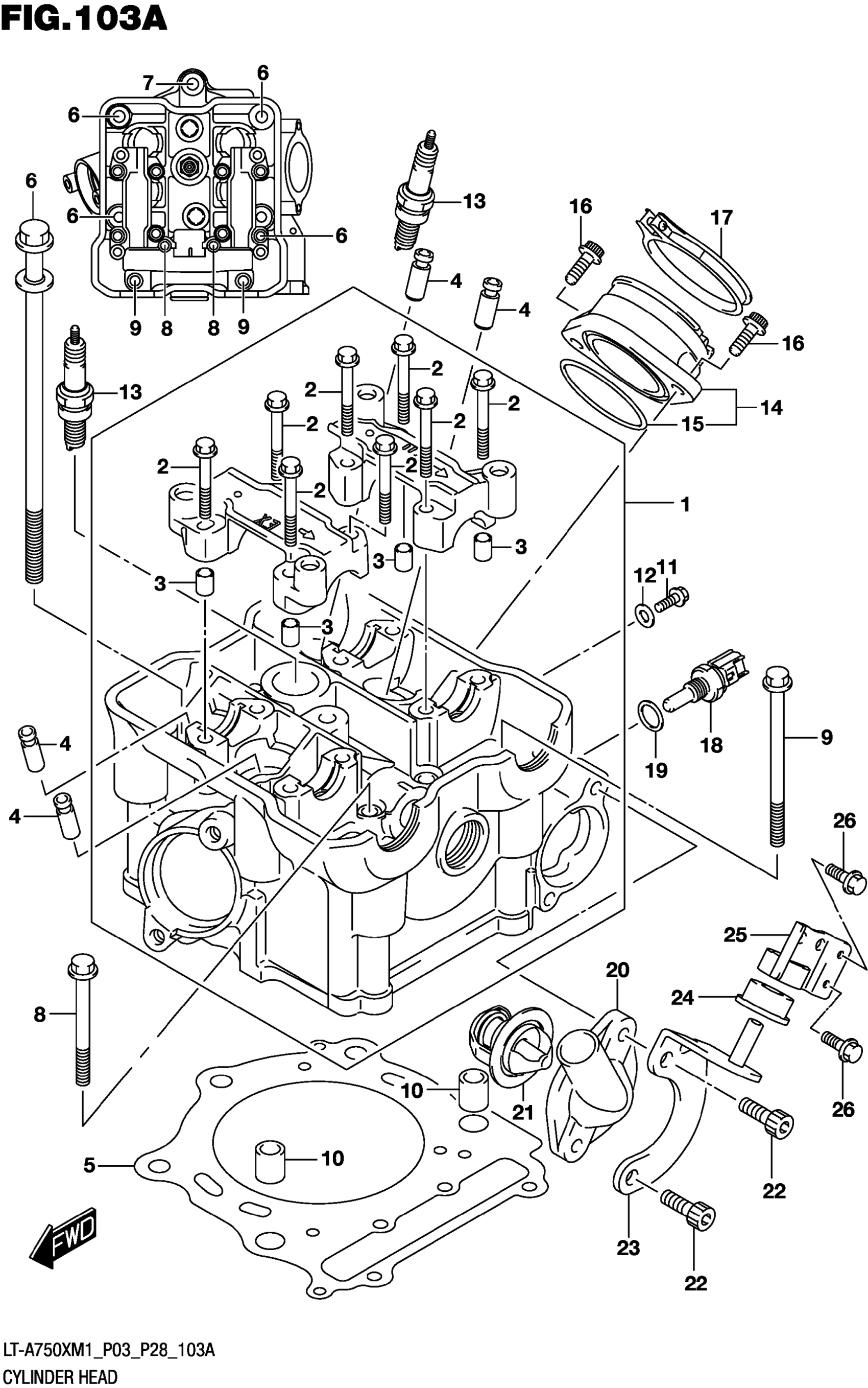

Suzuki LT-A750XM1 (2021) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY,CYLINDER

11100-31G50

$1,306.87

2

.BOLT (6X40)

09103-06266

$2.13

3

.PIN (8X11)

09206-08001

$1.77

4

GUIDE,VALVE (OS:0.3) | OPT

11115-32E70

$44.28

5

.GASKET,CYLINDER HEAD

11141-31G50

$40.64

6

BOLT,CYLINDER HEAD (L:200)

11161-31G00

$15.50

7

BOLT,CYLINDER HEAD (L:200)

11161-34K00

$15.22

8

BOLT (6X100)

09103-06060

$2.61

9

BOLT (6X70)

09103-06103

$2.61

10

PIN (10.4X13X18)

04211-13189

$2.19

11

BOLT

01550-0612A

$1.97

12

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.01

13-1

SPARK PLUG (LMAR7A-9)

09482-00624

$27.27

13-2

SPARK PLUG (LMAR6A-9)

09482-00623

$38.07

13-3

SPARK PLUG (LMAR8A-9)

09482-00625

Unavailable

14

PIPE ASSY,INTAKE

13101-31G01

$45.38

15

.O RING,INTAKE PIPE

13118-31G00

$4.85

16

BOLT (6X18)

09106-06105

$2.80

17

CLAMP

09402-62208

$6.02

18

SENSOR, WATER TEMP

13650-10G00

$79.85

19

GASKET (12X17X1)

09168-12017

$1.97

20

COVER, THERMOSTAT

17661-31G00

$53.58

21

THERMOSTAT,WATER

17670-06G61

$23.59

22

BOLT

07130-0825A

$2.80

23

PLATE,ENG MTG DAMPER

11653-31G02

$22.87

24

DAMPER,ENG MTG

11654-34K00

$10.42

25

STOPPER, ENG MTG

11655-31G10

$18.92

26

BOLT (8X12)

01550-0812A

$2.31
