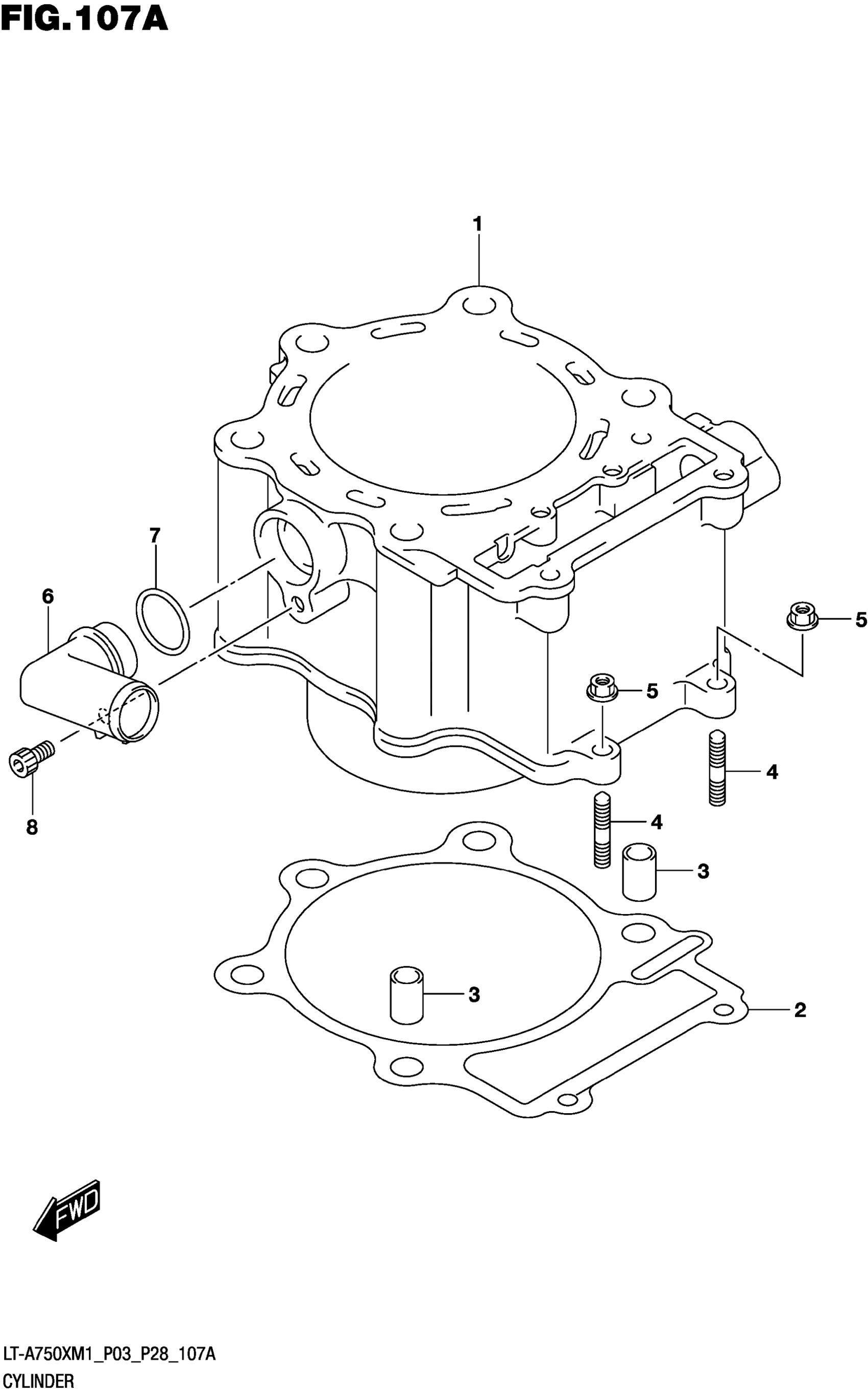

Suzuki LT-A750XM1 (2021) CYLINDER Diagram

#

Description

Price

1

CYLINDER

11211-34K00-0F0

$794.63

2

.GASKET,CYLINDER

11241-31G00

$17.36

3

PIN (10.4X13X18)

04211-13189

$2.19

4

BOLT,STUD

01421-0620A

$1.91

5

NUT (6X12)

08316-1006A

$2.19

6

UNION,WATER HOSE

17857-31G00

$36.08

7

O-RING (D:2.7,ID:21.4)

09280-21015

$2.73

8

BOLT

07130-0612A

$2.50
