2011 Suzuki LT-A750XL1 Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 2011 Suzuki LT-A750XL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

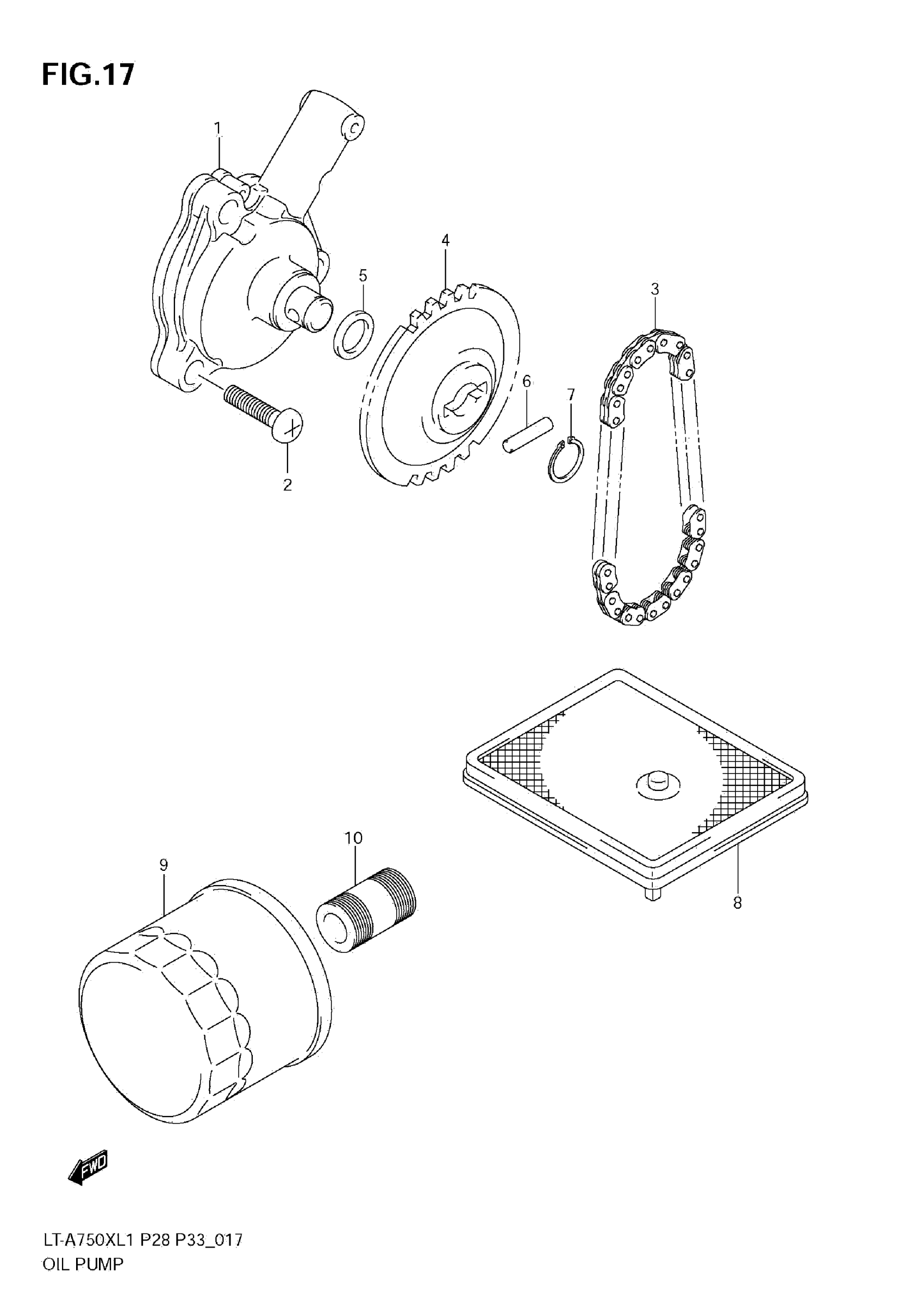

2011 Suzuki LT-A750XL1 Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, ENG OIL

16400-31G00

1

$196.25

In stock

2

SCREW (6X25)

09125-06035

3

$2.43

In stock

3

CHAIN, OIL PUMP DRIVE

16310-31G00

1

$32.76

In stock

4

1

$75.48

In stock

5

WASHER (10X18X0.5)

09181-10158

1
Out of stock

6

PIN (4X15.8)

09261-04009

1
Out of stock

7

CIRCLIP This part replaces 08331-3110A.

08331-31109

1
Out of stock

8

1

$13.42

In stock

9

FILTER, ENGINE OIL This part replaces 16510-03G00-X07.

16510-07J00

1
Out of stock

10

UNION,OIL STAND

16591-06B01

1
Out of stock
