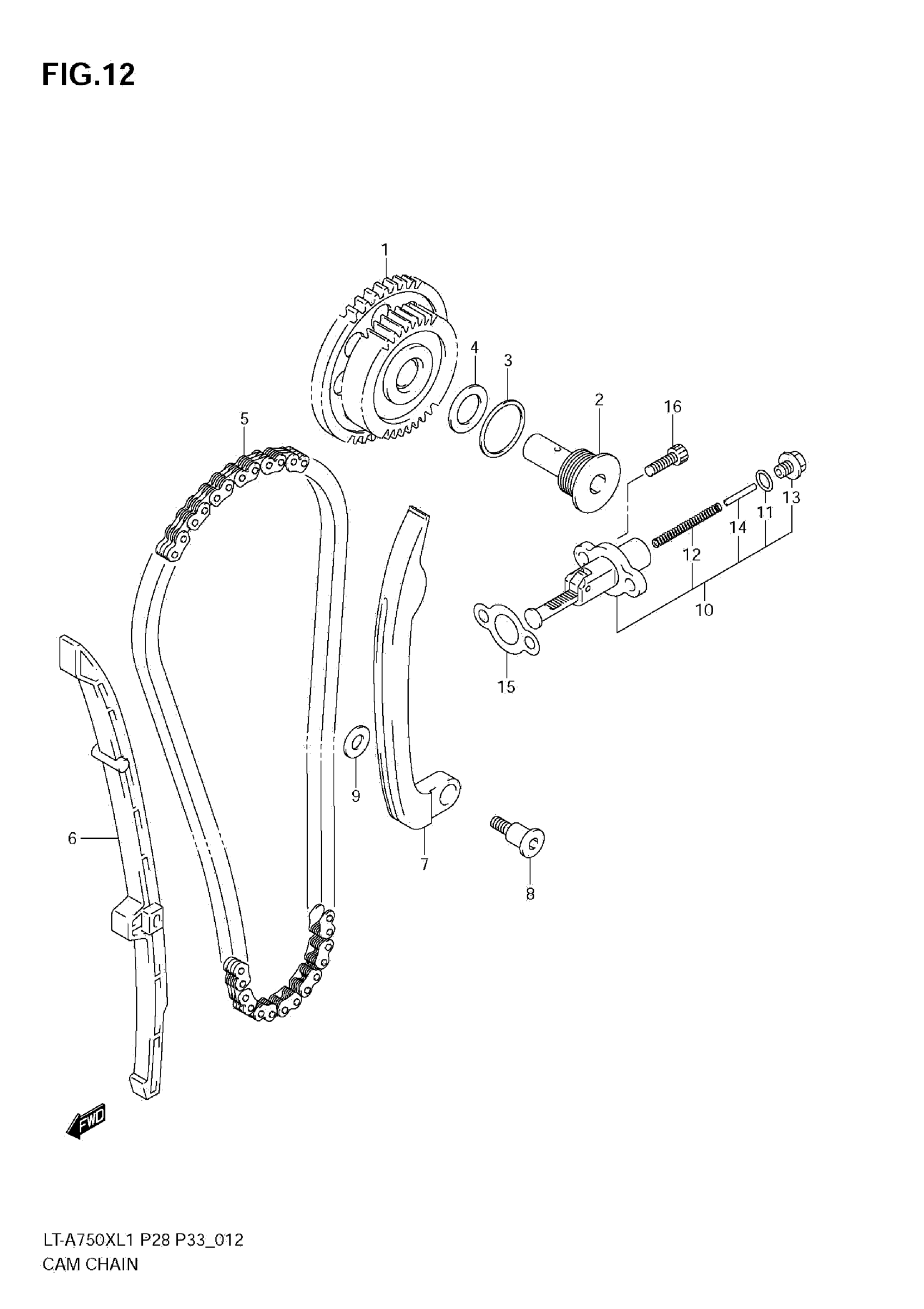

Suzuki LT-A750XL1 (2011) CAM CHAIN Diagram

#

Description
Price

1

GEAR, CAM CHAIN IDLER

12750-31G00

$189.55

2

SHAFT, CAM CHAIN IDLER GEAR

12755-02F01

$59.52

3

GASKET (26.5X30.5X1)

09168-26001

$5.43

4

SHIM (15X24X0.9)

09181-15164

$3.30

4

SHIM (15X24X1)

09181-15166

$2.74

4

SHIM (15X24X1.1)

09181-15172

$3.37

4

SHIM (15X24X1.2)

09181-15176

$3.30

4

SHIM (15X24X1.3)

09181-15181

$3.30

4

SHIM (15X24X1.4)

09181-15182

$3.30

5

CHAIN, CAMSHAFT DRIVE

12760-31G00

$157.11

6

GUIDE,CAM CHAIN

12771-31G00

$48.82

7

TENSIONER,CAM CHAIN This part replaces 12811-31G00.

12811-31G01

$60.85

8

BOLT, CAM CHAIN TENSIONER

12812-31G00

$4.19

9

WASHER

08211-08202

$2.29

10

ADJUSTER ASSY, TENSIONER

12830-19B02

$90.81

11

O RING

12832-02A00

$2.80

12

SPRING

12833-19B00

$3.67

13

PLUG

12834-19B00

$19.60

14

BAR

12835-19B00

$3.67

15

.GASKET,TENSIONER ADJUSTER

12837-19B10

$2.80

16

BOLT | TENSIONER ADJUSTER

07130-0620A

$2.50
