2011 Suzuki LT-A750XL1 Crankcase Cover Diagram

← All diagrams

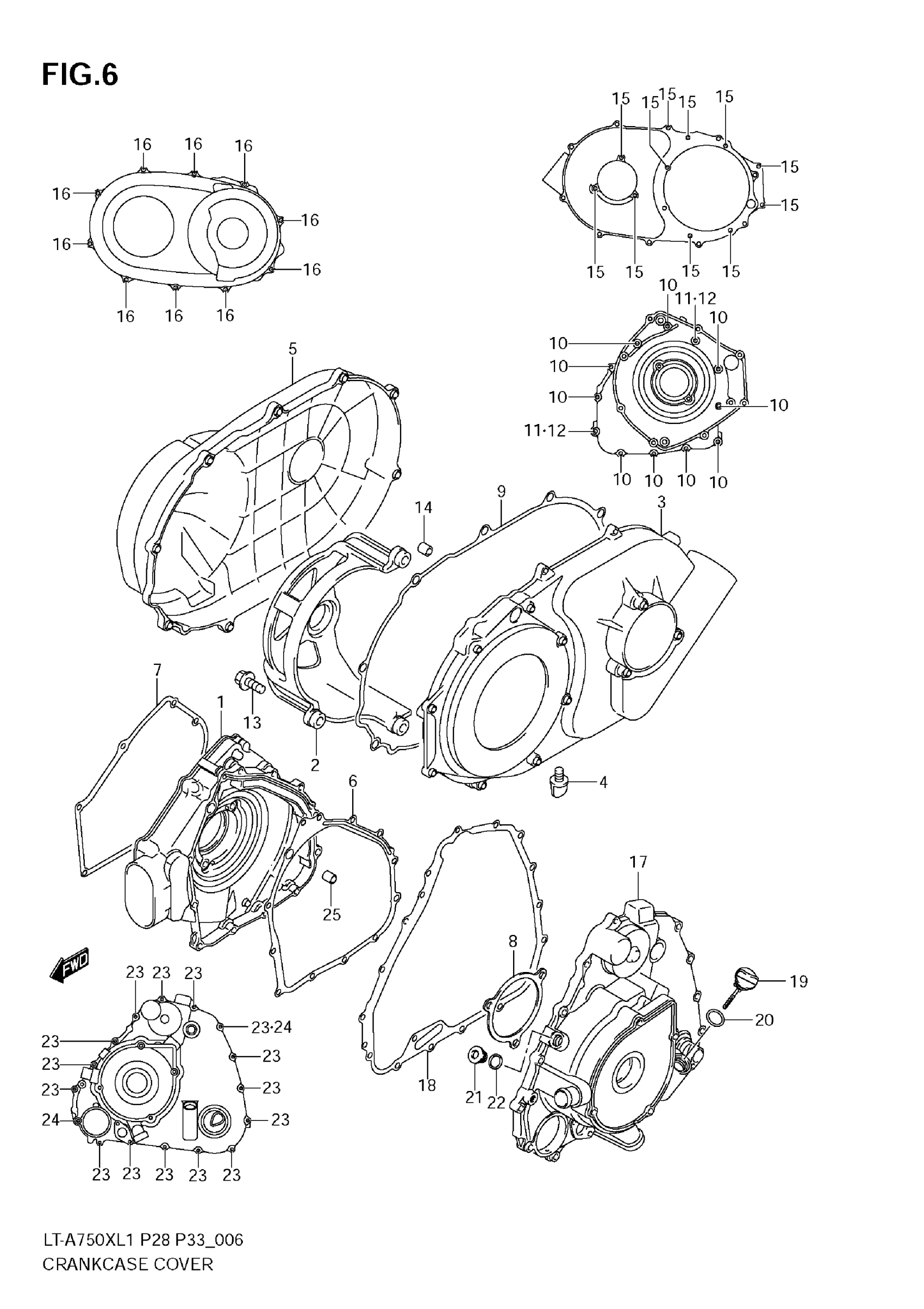

Find the part on the Crankcase Cover diagram for your 2011 Suzuki LT-A750XL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki LT-A750XL1 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,CLUTCH This part replaces 11341-31G00.

11341-31G02

1
Out of stock

2

HOUSING,V-BELT BEARING

11342-31G00

1
Out of stock

3

COVER,V BELT INNER

11370-31G00

1
Out of stock

4

PLUG, WATER DRAIN

11375-31G00

1
Out of stock

5

COVER,V BELT OUTER

11380-31G00

1
Out of stock

6

GASKET, CLUTCH COVER

11482-31G00

1
Out of stock

7

GASKET, V-BELT COVER INNER FRONT

11484-31G00

1
Out of stock

8

GASKET, V-BELT COVER INNER REAR

11485-31G00

1
Out of stock

9

GASKET, V-BELT COVER OUTER

11486-31G00

1
Out of stock

10

BOLT | CLUCH COVER

01547-0625B

10
Out of stock

11

BOLT | CLUCH COVER

01547-0635B

2
Out of stock

12

PIN | CLUCH COVER

04211-11169

2
Out of stock

13

BOLT | V-BELT BEARING HOUSING

01547-0635B

3
Out of stock

14

PIN | V-BELT BEARING HOUSING

04211-09149

2
Out of stock

15

BOLT | V-BELT INNER COVER

01547-0625B

11
Out of stock

16

BOLT | V-BELT OUTER COVER

01547-0625B

10
Out of stock

17

COVER,MAGNETO

11350-31G01

1
Out of stock

18

GASKET, MAGNETO COVER

11483-31G00

1
Out of stock

19

GAUGE,OIL LEVEL

11971-09F50

1
Out of stock

20

O RING (D:3.1,ID:16.8) | OIL GAUGE

09280-17003

1
Out of stock

21

PLUG, SHAFT | TDC CHECK This part replaces 09248-14012.

09248-14011

1
Out of stock

22

GASKET (14X18X1.5) | TDC PLUG

09168-14014

1
Out of stock

23

BOLT | MAGNETO COVER

01547-0625B

13
Out of stock

24

BOLT | MAGNETO COVER

01547-0635B

1
Out of stock

25

PIN | MAGNETO COVER

04211-11169

2
Out of stock
