2018 Suzuki LT-A750X 2ND AIR Diagram

← All diagrams

Find the part on the 2ND AIR diagram for your 2018 Suzuki LT-A750X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

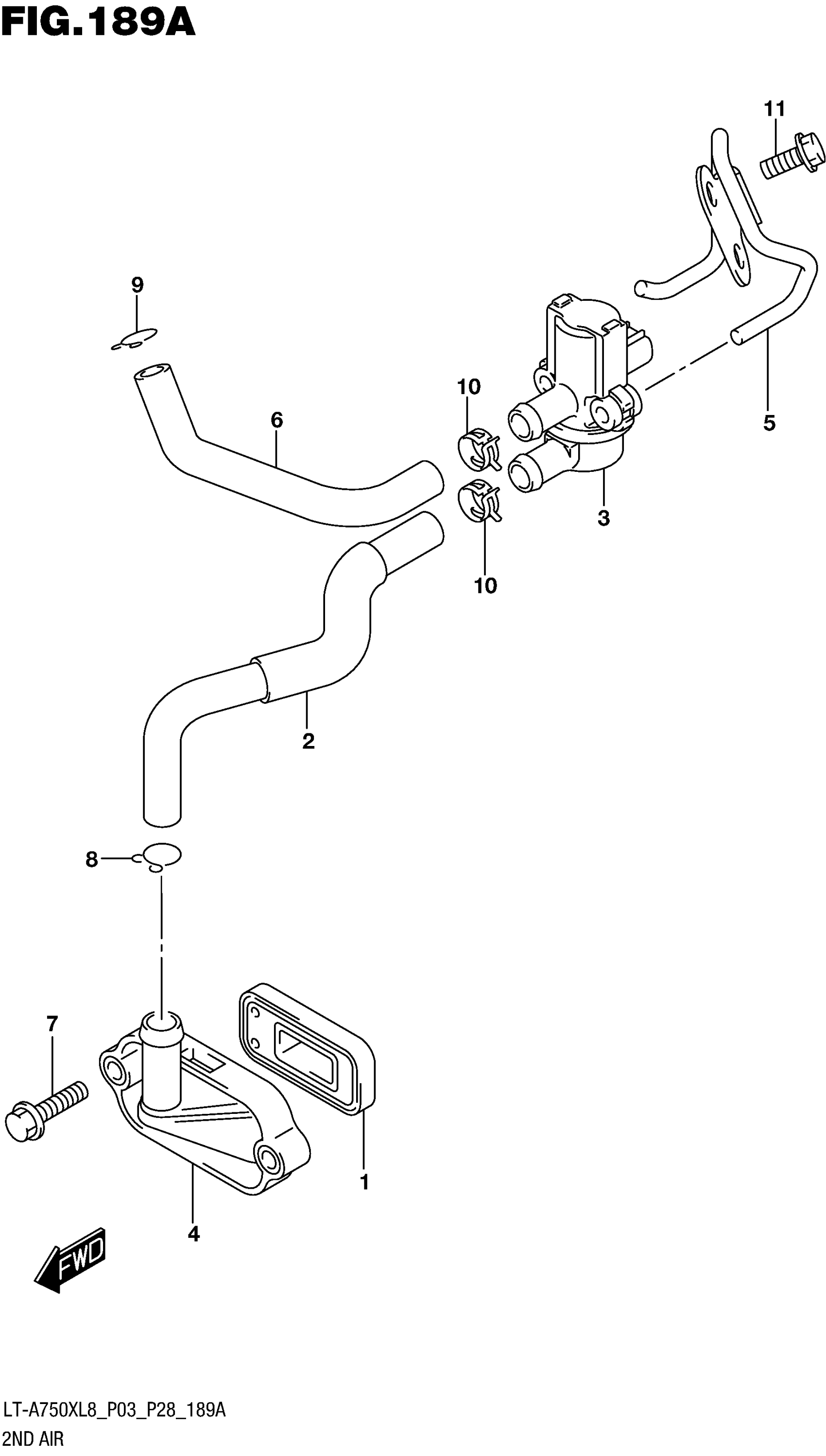

2018 Suzuki LT-A750X 2ND AIR Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

.VALVE ASSY,2ND AIR REED

18450-06G00

1
Out of stock

2

HOSE,2ND AIR VALVE

18461-31G00

1
Out of stock

3

VALVE ASSY,AIR CUT

18510-29G50

1
Out of stock

4

COVER,2ND AIR

18531-06G01

1
Out of stock

5

BRACKET, 2ND AIR VALVE

18610-31G00

—
Out of stock

6

HOSE, 2ND AIR CLNR

18711-31G00

1
Out of stock

7

BOLT (6X20)

09103-06201

2
Out of stock

8

CLIP

09401-15101

1
Out of stock

9

CLIP

09401-17201

1
Out of stock

10

CLIP

09401-17401

2
Out of stock

11

BOLT

01550-0610A

2
Out of stock
