2018 Suzuki LT-A750X Fuel Tank Diagram

← All diagrams

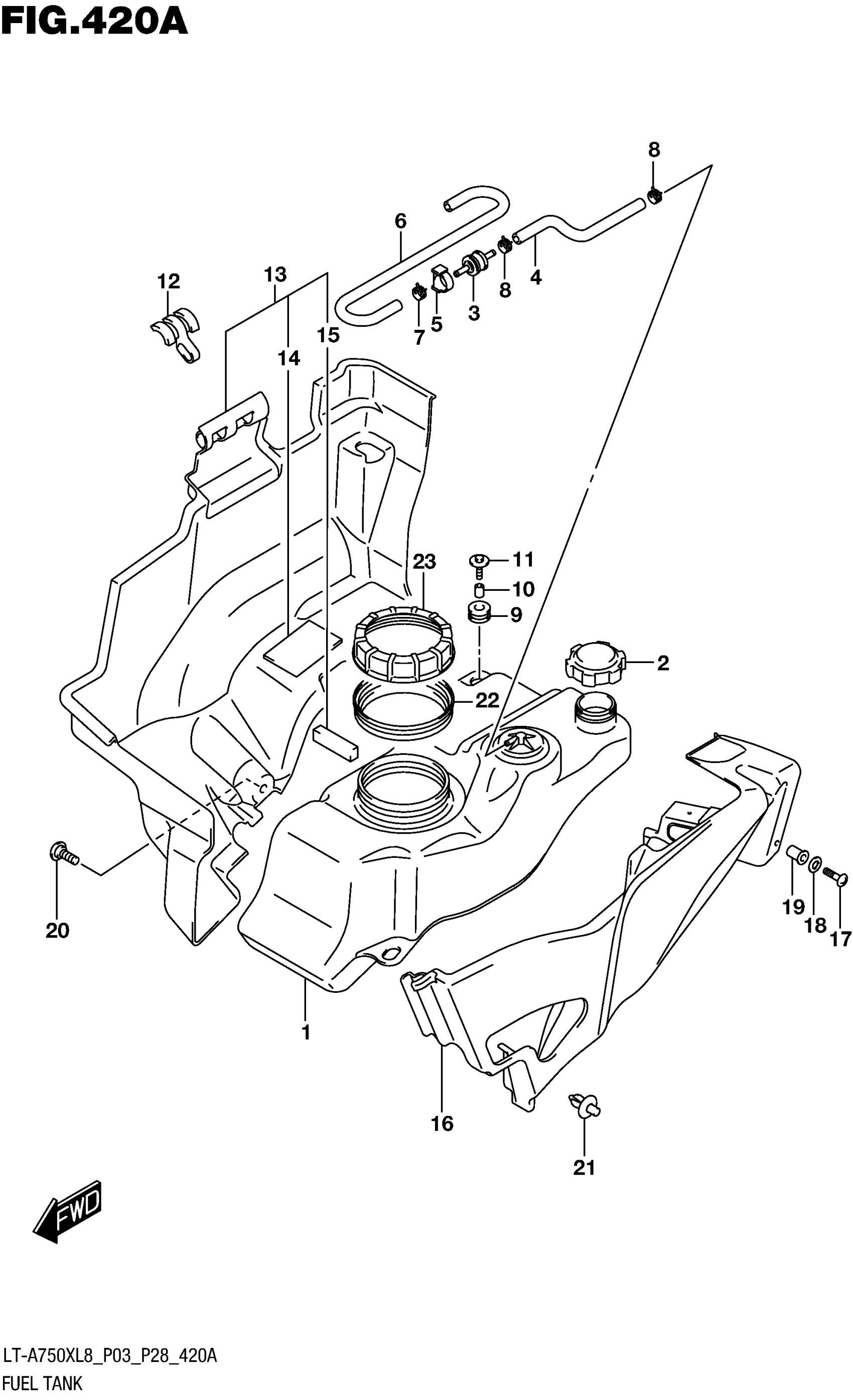

Find the part on the Fuel Tank diagram for your 2018 Suzuki LT-A750X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki LT-A750X Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY, FUEL

44100-31G21

1
Out of stock

2

CAP ASSY, FUEL TANK

44200-31G00

1
Out of stock

3

VALVE,2 WAY CHECK

85451-75100

1
Out of stock

4

1

$13.62

In stock

5

CUSHION, CHECK VALVE This part replaces 44881-31G00.

44881-31G01

1
Out of stock

6

HOSE, TANK BREATHER

44434-31G11

1

$50.95

In stock

7

CLIP

09401-08409

1

$2.30

In stock

8

CLIP (ID:9.4,H:8)

09401-09403

2
Out of stock

9

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

3
Out of stock

10

SPACER (6.5X10X14)

09180-06293

3
Out of stock

11

BOLT (6X30)

09116-06050

3
Out of stock

12

CUSHION, SIDE

44541-31G00

1
Out of stock

13

1

$122.78

In stock

14

.CUSHION, COVER NO.1

44542-10G00

1
Out of stock

15

.CUSHION, COVER NO.2

53146-05G00

1
Out of stock

16

COVER, OUTER

44391-31G00

1

$114.65

In stock

17

SCREW

02142-0520B

1
Out of stock

18

WASHER (5.5X20X1.4)

09160-05046

1
Out of stock

19

NUT

09159-05019

1
Out of stock

20

SCREW (6X16)

09139-06137

1
Out of stock

21

CLIP

09409-07333

2
Out of stock

22

GASKET, FUEL PUMP

44596-26J00

1
Out of stock

23

RETAINER, FUEL PUMP

44597-26J00

1
Out of stock
