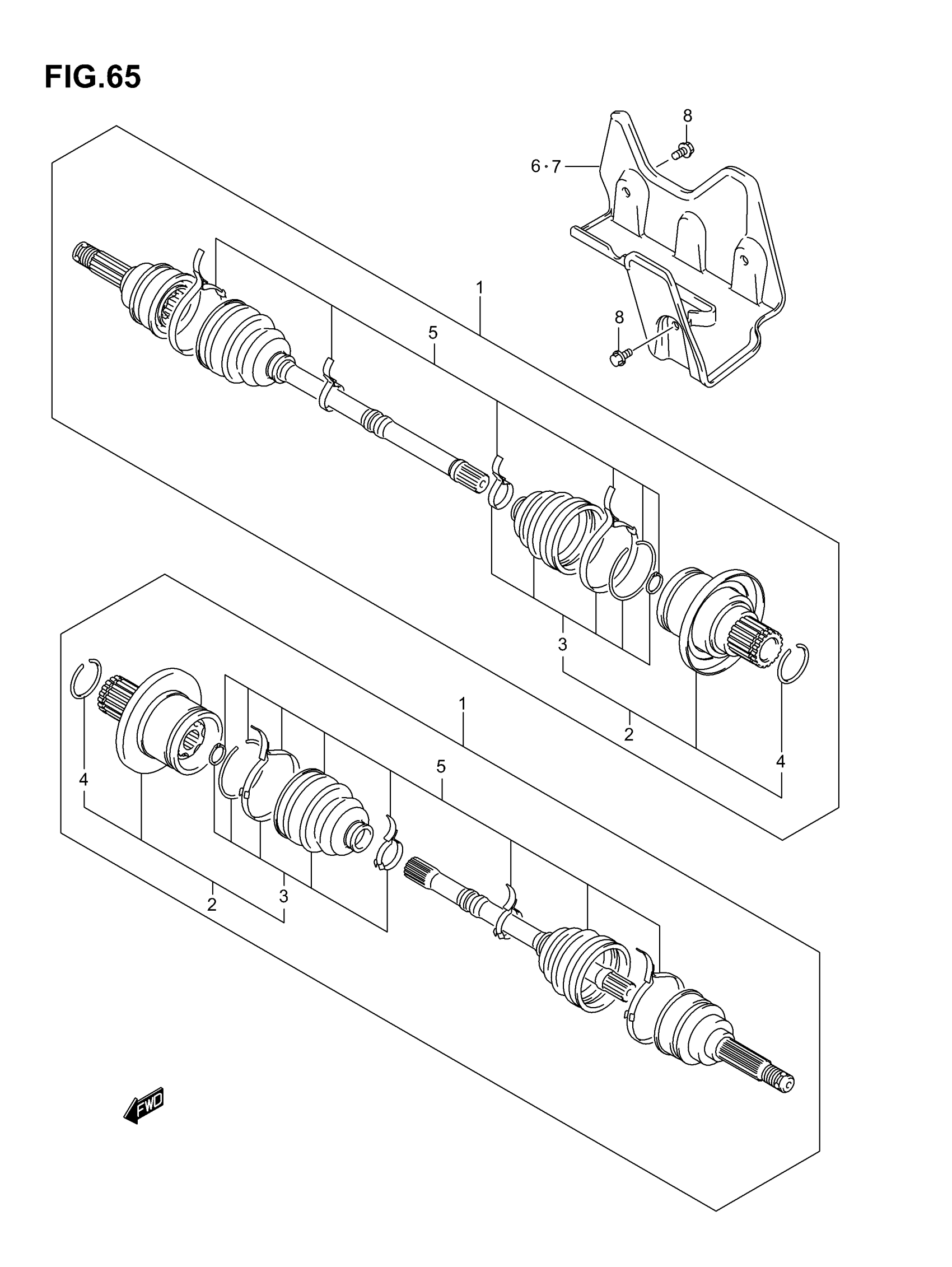

Suzuki LT-A700X (2007) REAR DRIVE SHAFT Diagram

#

Description

Price

1

SHAFT ASSY, REAR DRIVE | MODEL K6 This part replaces 64901-31G10.

64901-31G41

$312.45

1

SHAFT ASSY, REAR DRIVE | MODEL K7; Includes Item(s) 2 - 5 This part replaces 64901-31G11.

64901-31G41

$312.45

2

JOINT SET This part replaces 64933-31G10.

64933-31GV0

Unavailable

3

BOOT SET,INNER This part replaces 64931-31G10.

64931-31GV0

$121.55

4

CIRCLIP

54925-31G01

$6.95

5

BOOT SET,OUTER This part replaces 64930-31G02.

64930-31G03

$121.55

6

PROTECTOR,RR DRIVE SHAFT,R This part replaces 64903-31G00.

64903-31G11

$26.12

7

PROTECTOR,RR DRIVE SHAFT,L This part replaces 64904-31G00.

64904-31G11

$25.96

8

BOLT, RR DRIVE SHAFT PR

09111-06085

$4.28
