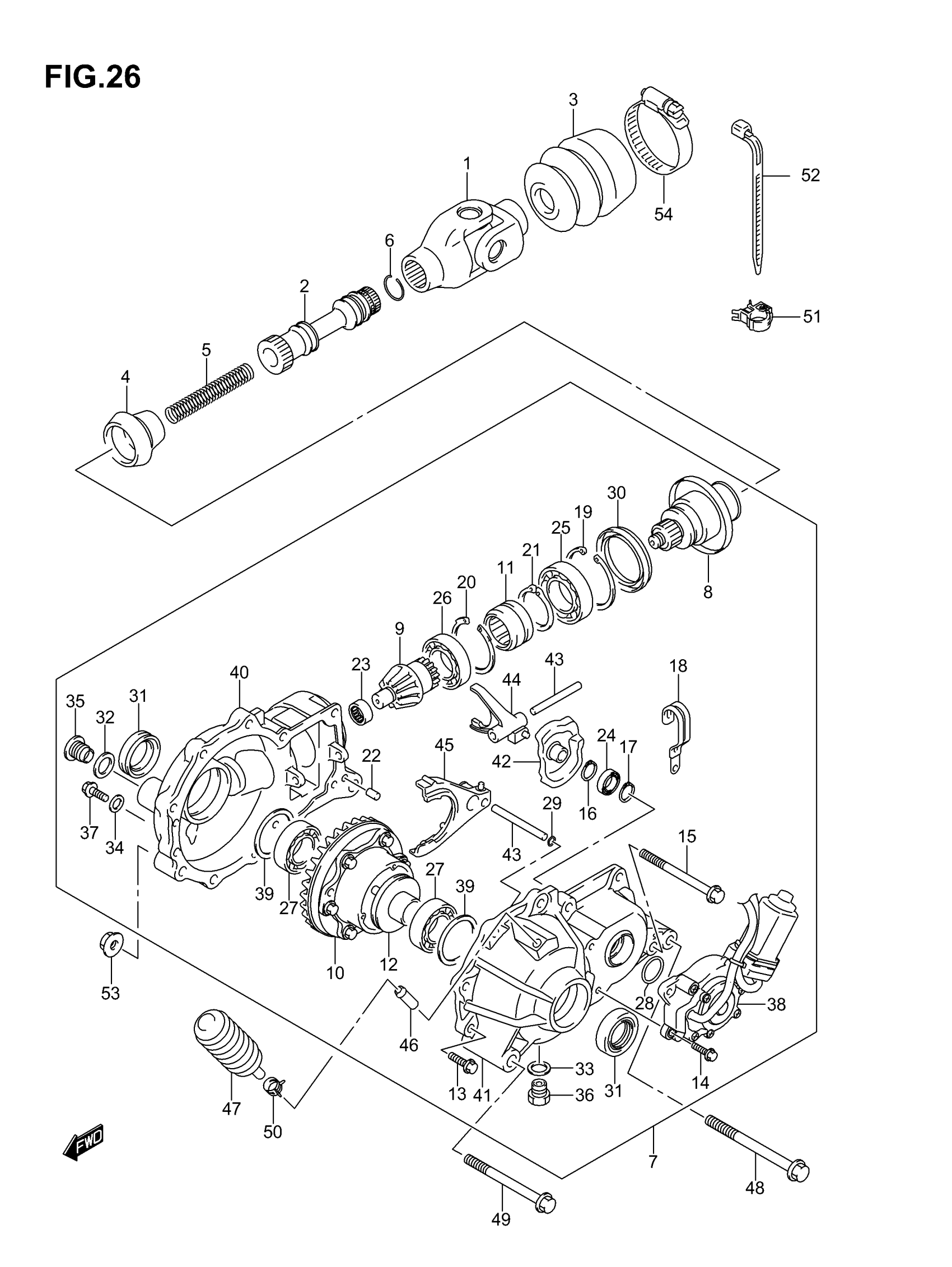

Find the part on the Final Bevel Gear diagram for your 2007 Suzuki LT-A700X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki LT-A700X Final Bevel Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

YOKE, FR PROPELLER SHAFT

27100-31G00

1
Out of stock

2

SHAFT, PROPELLER

27151-31G00

1
Out of stock

3

BOOT, FRONT PROP SHAFT YOKE This part replaces 27153-31G21.

27153-31G22

1
Out of stock

4

BOOT,FR PROP SHAFT This part replaces 27153-31G30.

27153-31G32

1
Out of stock

5

SPRING, FR PROPELLER

27191-31G00

1
Out of stock

6

C-RING, FR PROP SHAFT

09381-20004

1
Out of stock

7

CASE ASSY,FR DIFFERENTIAL | Includes Item(s) 8 - 46 This part replaces 27400-31G00.

27400-11H11

1
Out of stock

8

SHAFT ASSY,INPU This part replaces 27130-31GA0.

27130-31GB1

1
Out of stock

9

PINION, DRIVE

27311-31GA0

1
Out of stock

10

GEAR RING ASSY

27320-31GA0

1
Out of stock

11

SLEEVE

27371-31GA0

1
Out of stock

12

PIN, SLEEVE DIFF LOCK

27381-31GA0

1
Out of stock

13

FLANGE BOLT, HEX HEAD

27401-31GA0

9
Out of stock

14

FLANGE BOLT, HEX HEAD

27401-31GB0

2
Out of stock

15

FLANGE BOLT, HEX HEAD

27401-31GC0

1
Out of stock

16

SNAP RING

27403-31GA0

1
Out of stock

17

SNAP RING

27403-31GB0

1
Out of stock

18

CLIP

27403-31GC0

1
Out of stock

19

RING SNAP

27403-38FA0

1
Out of stock

20

RING SNAP

27403-38FB0

1
Out of stock

21

SNAP RING

27403-38FC0

1
Out of stock

22

PIN

27404-31GA0

2
Out of stock

23

BEARING, PINION

27405-31GA0

1
Out of stock

24

BEARING

27405-31GB0

1
Out of stock

25

BEARING

27405-38FA0

1
Out of stock

26

BEARING

27405-38FB0

1
Out of stock

27

BEARING

27405-38FD0

2
Out of stock

28

.O RING This part replaces 27406-31GA0.

27406-31GE0

1
Out of stock

29

.O RING This part replaces 27406-31GB0.

27406-31GF0

1
Out of stock

30

OIL SEAL

27406-38FB0

1
Out of stock

31

OIL SEAL

27406-38FD0

2
Out of stock

32

.WASHER This part replaces 27407-38FA0.

27407-31GA0

1
Out of stock

33

WASHER

27407-38FB0

1
Out of stock

34

WASHER

27407-38FD0

1
Out of stock

35

PLUG

27409-38FA0

1
Out of stock

36

PLUG

27409-38FB0

1
Out of stock

37

PLUG, LEVEL

27409-38FC0

1
Out of stock

38

.CASE,MOTOR This part replaces 27421-31GA0.

27421-31GA1

1
Out of stock

39

SHIM SET

27445-38FA0

2
Out of stock

40

HOUSING, FINAL DRIVE, FR

27451-31GA0

1
Out of stock

41

COVER, FINAL DRIVE, FR

27461-31GA0

1
Out of stock

42

CAM SHIFT

27911-31GA0

1
Out of stock

43

ROD SHIFT

27921-31GA0

2
Out of stock

44

FORK SHIFT, 2WD & 4WD

27941-31GA0

1
Out of stock

45

FORK SHIFT, DIFFLOCK

27951-31GA0

1
Out of stock

46

UNION

09364-08003

1
Out of stock

47

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

1
Out of stock

48

BOLT, FR DIFF HOUSING MTG | 10X90

09103-10061

1
Out of stock

49

BOLT, FR DIFF HOUSING MTG | 10X110

09103-10148

1
Out of stock

50

CLAMP, BREATHER CASE

09401-08411

1
Out of stock

51

CLAMP, WIRING HARNESS | ID:15

09403-15405

1
Out of stock

52

CLAMP, WIRING HARNESS | L:125

09407-14403

1
Out of stock

53

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

2
Out of stock

54

CLAMP

09402-80501

1
Out of stock
