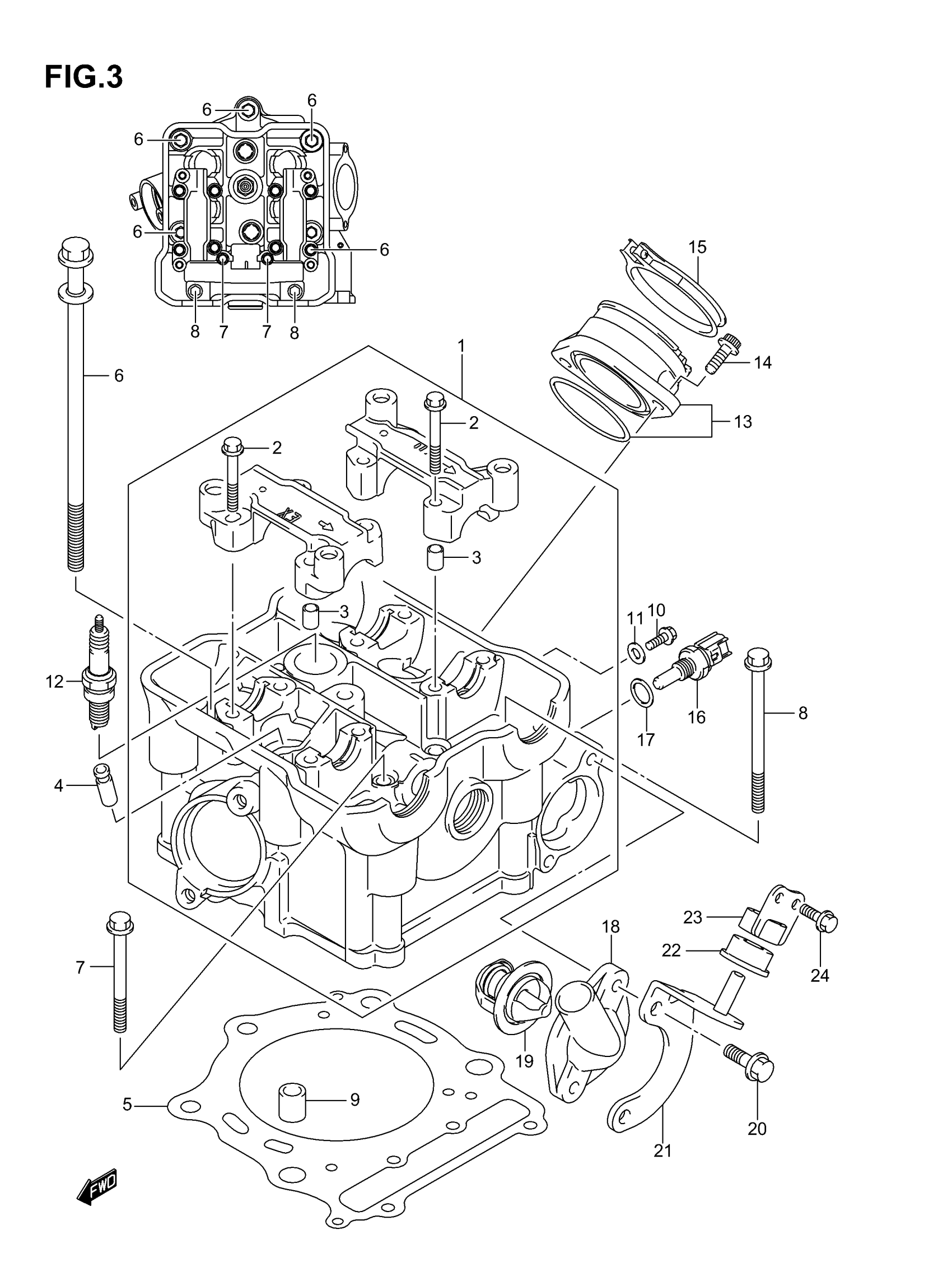

Find the part on the Cylinder Head diagram for your 2007 Suzuki LT-A700X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki LT-A700X Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 3

11100-31G00

1
Out of stock

2

BOLT, 6X40

09103-06266

8
Out of stock

3

PIN, 6.2X8X11

09206-08001

4
Out of stock

4

GUIDE, VALVE (OS:0.3) | OPT

11115-32E70

4
Out of stock

5

GASKET, CYLINDER HEAD

11141-31G00

1
Out of stock

6

BOLT,CYLINDER HEAD (L:200)

11161-31G00

5
Out of stock

7

BOLT, 6X100

09103-06060

2
Out of stock

8

BOLT, 6X70

09103-06103

2
Out of stock

9

PIN

04211-13189

2
Out of stock

10

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

1
Out of stock

11

GASKET, 5.8X13X1.2

09168-06023

1
Out of stock

12

PLUG, SPARK (CR6E)

09482-00528

1
Out of stock

12

PLUG, SPARK (U20ESR-N)

09482-00529

1
Out of stock

12

PLUG, SPARK (CR8E) | OPT

09482-00456

1
Out of stock

12

PLUG, SPARK (U24ESR-N) | OPT

09482-00457

1
Out of stock

12

PLUG, SPARK (CR7E) | OPT

09482-00516

1
Out of stock

12

PLUG, SPARK (U22ESR-N) | OPT

09482-00515

1
Out of stock

12

PLUG SPARK (CR9E) | OPT

09482-00458

1
Out of stock

12

PLUG, SPARK (U27ESR-N) | OPT

09482-00459

1
Out of stock

12

PLUG, SPARK (CR6EIA-9) | OPT

09482-00590

1
Out of stock

13

PIPE ASSY,INTAKE This part replaces 13101-31G00.

13101-31G01

1
Out of stock

14

BOLT, INTAKE PIPE

09106-06105

2
Out of stock

15

CLAMP, INTAKE PIPE

09402-62208

1
Out of stock

16

SENSOR, WATER PUMP

13650-10G00

1
Out of stock

17

GASKET, WATER TEMP SENSOR

09168-12017

1
Out of stock

18

COVER

17661-31G00

1
Out of stock

19

THERMOSTAT,WATER This part replaces 17670-06G60.

17670-06G61

1
Out of stock

20

BOLT This part replaces 01550-08253.

01550-0825A

2
Out of stock

21

PLATE,ENG MTG DAMPER This part replaces 11653-31G00.

11653-31G02

1
Out of stock

22

DAMPER, ENG MTG

11654-31G00

1
Out of stock

23

STOPPER, ENG MTG This part replaces 11655-31G00.

11655-31G03

1
Out of stock

24

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

2
Out of stock
