2005 Suzuki LT-A700X Steering Knuckle Diagram

← All diagrams

Find the part on the Steering Knuckle diagram for your 2005 Suzuki LT-A700X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

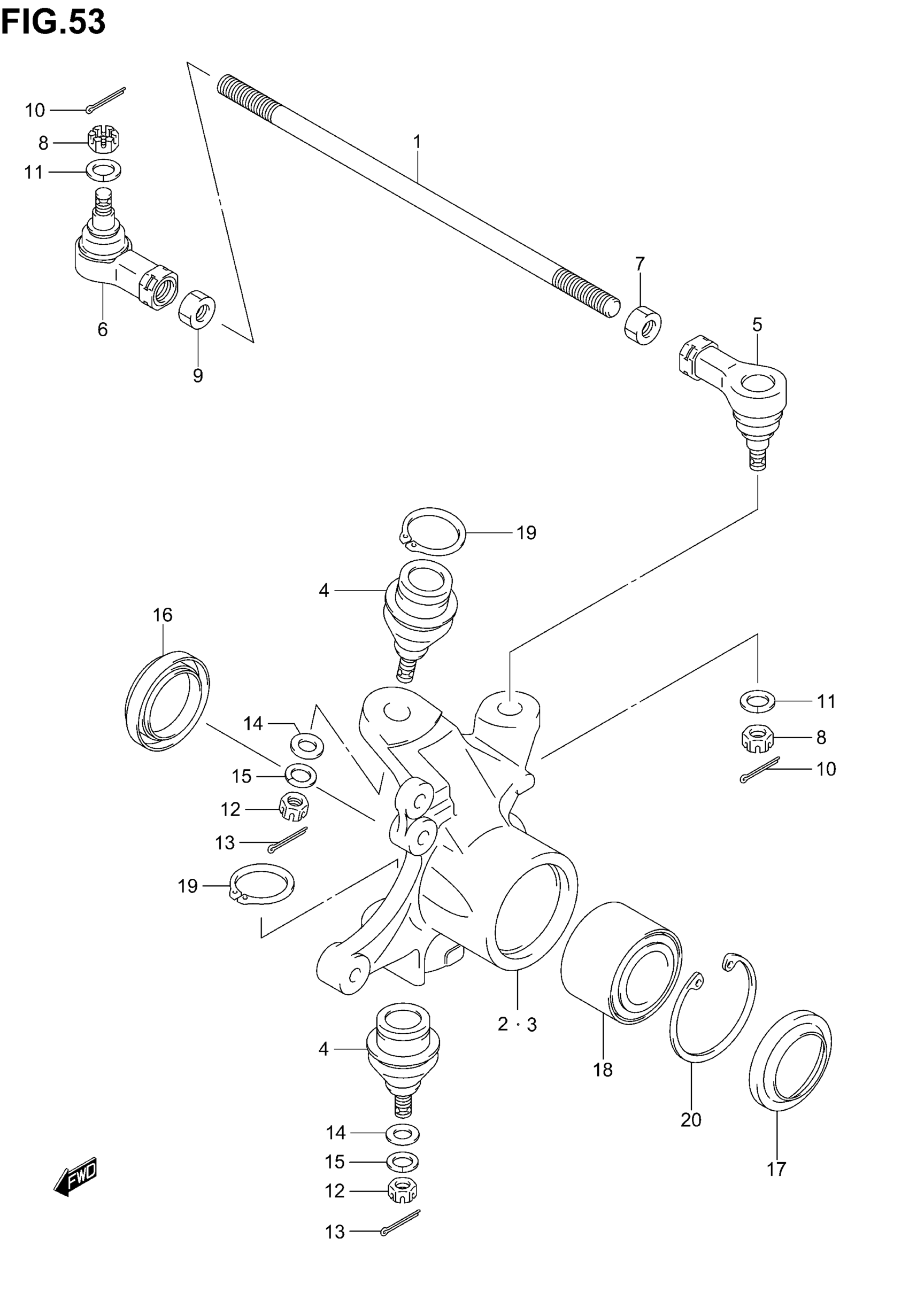

2005 Suzuki LT-A700X Steering Knuckle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TIE ROD, STEERING This part replaces 51281-31G00.

51281-31G01

2
Out of stock

2

KNUCKLE, STEERING RH

51231-31G00

1
Out of stock

3

KNUCKLE, STEERING LH

51241-31G00

1
Out of stock

4

END, KNUCKLE STEERING This part replaces 51210-31G00.

51210-31G10

4
Out of stock

5

ROD, END RH This part replaces 51260-31G00.

51260-31G10

2
Out of stock

6

ROD, END LH This part replaces 51270-31G00.

51270-31G10

2
Out of stock

7

NUT, TIE ROD (RH THREAD)

09140-12030

2
Out of stock

8

NUT This part replaces 08314-40103.

08314-4010B

4
Out of stock

9

NUT, TIE ROD (LH THREAD)

09140-12035

2
Out of stock

10

COTTER PIN This part replaces 04111-20208.

04111-2020A

4
Out of stock

11

WASHER, ROD END

09162-10008

4
Out of stock

12

NUT This part replaces 08314-40103.

08314-4010B

4
Out of stock

13

COTTER PIN This part replaces 04111-20208.

04111-2020A

4
Out of stock

14

WASHER, KNUCKLE END This part replaces 08322-01103.

08322-0110A

4
Out of stock

15

WASHER, KNUCKLE END LOCK

09162-10008

4
Out of stock

16

DUST SEAL, INNER (38X55X8)

09283-38012

2
Out of stock

17

DUST SEAL, OUTER (38X55X6)

09285-38002

2
Out of stock

18

BEARING This part replaces 51259-31G00.

51259-31G10

2
Out of stock

19

CIRCLIP This part replaces 08331-31306.

08331-31309

4
Out of stock

20

CLIP

08331-41559

2
Out of stock
