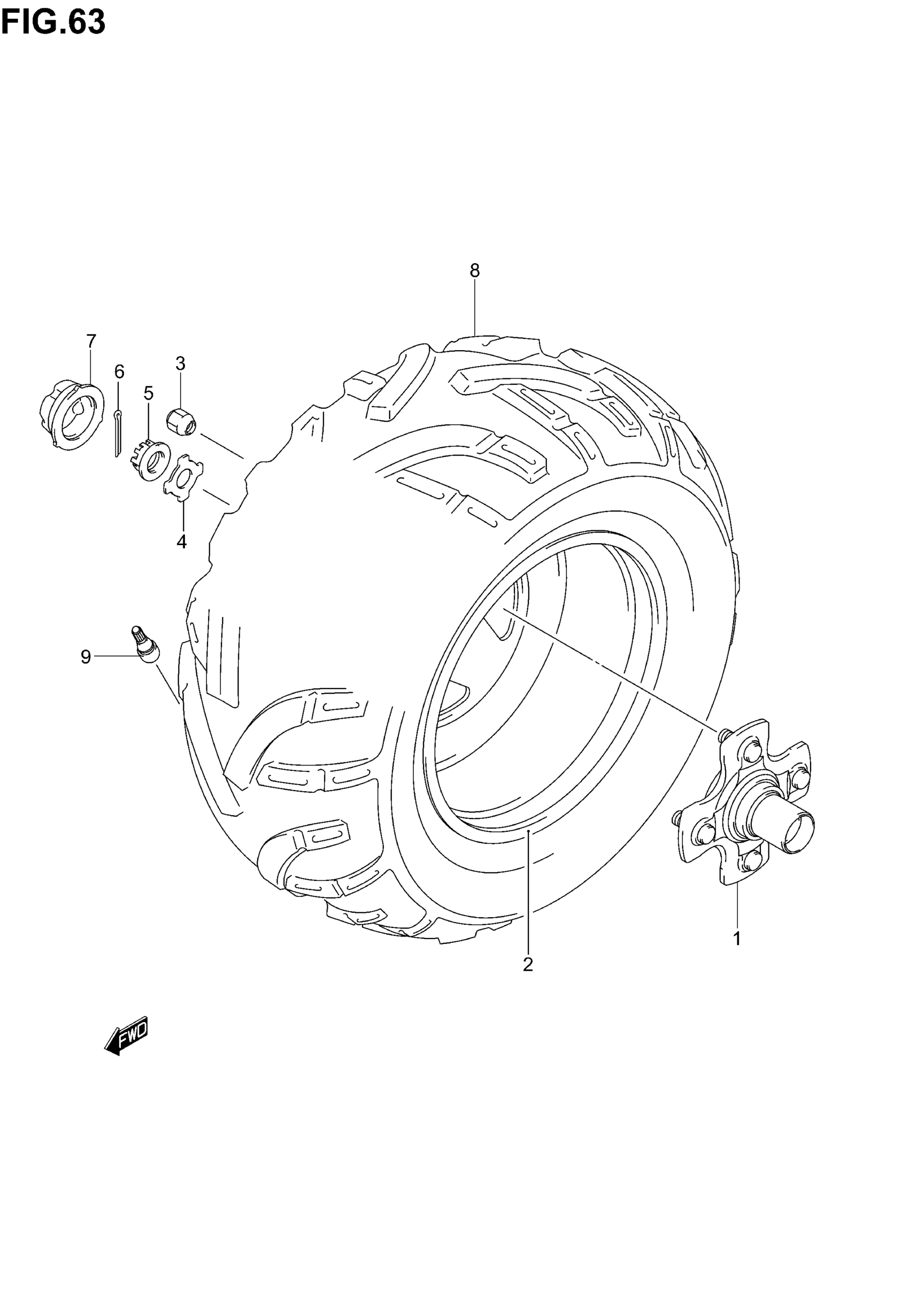

Find the part on the Right Rear Wheel diagram for your 2005 Suzuki LT-A700X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki LT-A700X Right Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL LH This part replaces 64110-31G00.

64110-31G10

1
Out of stock

2

RIM, REAR WHEEL (12X7.5AT)

65310-31G00

1
Out of stock

3

NUT (H:23)

09159-10045

4
Out of stock

4

WASHER

64723-09F00

1
Out of stock

5

NUT, HUB

09141-18010

1
Out of stock

6

PIN, COTTER This part replaces 04111-40408.

04111-4040A

1
Out of stock

7

CAP,WHEEL CENTER

54725-09F01

1
Out of stock

8

TIRE, REAR (AT25X10-12) This part replaces 65110-31G00.

65110-31G20

1
Out of stock

9

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock
