2005 Suzuki LT-A700X Front Suspension ARM Diagram

← All diagrams

Find the part on the Front Suspension ARM diagram for your 2005 Suzuki LT-A700X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

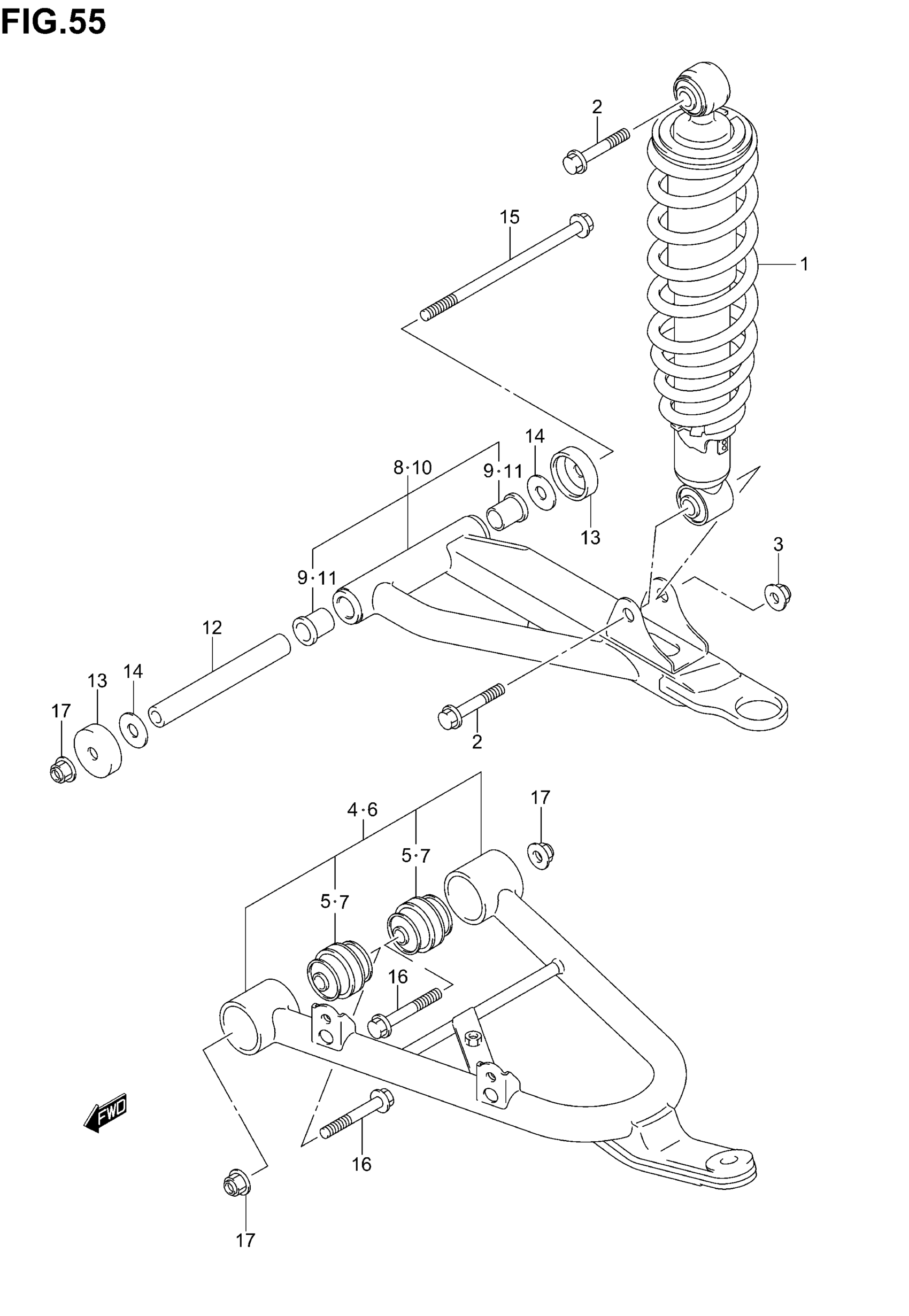

2005 Suzuki LT-A700X Front Suspension ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ABSORBER ASSY, FRONT SHOCK (GRAY)

52100-31G00-YU8

2
Out of stock

2

BOLT (10X48) | LOWER

09103-10126

4
Out of stock

3

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

2
Out of stock

4

ARM SET, SUSPENSION LOWER RH | Includes Item(s) 5

52410-31810

1
Out of stock

5

BUSH (10X35.1X38)

09319-10055

2
Out of stock

6

ARM SET, SUSPENSION LOWER LH | Includes Item(s) 7

52420-31810

1
Out of stock

7

BUSH (10X35.1X38)

09319-10055

2
Out of stock

8

ARM SET, SUSPENSION UPPER RH | Includes Item(s) 9

52430-31810

1
Out of stock

9

BUSH

51236-40B00

2
Out of stock

10

ARM SET, SUSPENSION UPPER LH | Includes Item(s) 11

52440-31810

1
Out of stock

11

BUSH

51236-40B00

2
Out of stock

12

SPACER, FR SUSPENSION ARM This part replaces 52455-31G00.

52455-31G10

2
Out of stock

13

SEAL, FR SUSPENSION ARM PIVOT

51255-18900

4
Out of stock

14

WASHER

08211-10281

4
Out of stock

15

BOLT, SUSPENSION UPPER (10X160)

09103-10389

2
Out of stock

16

BOLT, SUSPENSION LOWER (10X57)

09103-10255

4
Out of stock

17

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

6
Out of stock
