2005 Suzuki LT-A700X Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 2005 Suzuki LT-A700X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

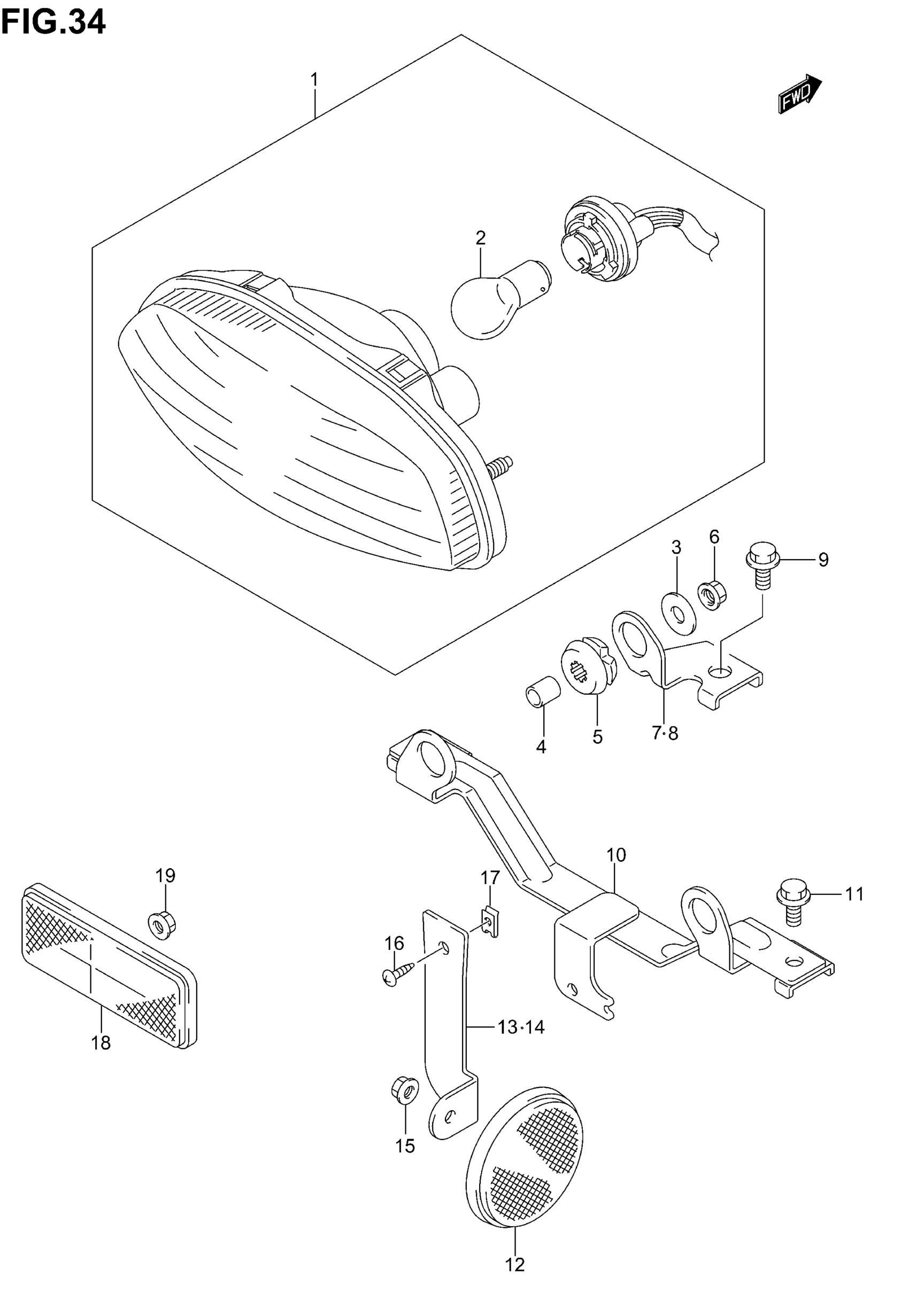

2005 Suzuki LT-A700X Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMB | Includes Item(s) 2

35710-31G00

1
Out of stock

2

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

1
Out of stock

3

WASHER, REAR COMB LAMP | 6.5X20X1.2

09160-06077

2
Out of stock

4

SPACER, REAR COMB | 6.5X9X10.5

09180-06264

2
Out of stock

5

CUSHION, REAR COMB

09320-09018

2
Out of stock

6

NUT This part replaces 08316-10063.

08316-1006B

2
Out of stock

7

1

$10.08

In stock

8

1

$10.08

In stock

9

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

2
Out of stock

10

1

$31.90

In stock

11

BOLT, CLAMP | E28 This part replaces 01550-06123.

01550-0612A

2
Out of stock

12

2

$21.23

In stock

13

BRACKET, REAR SIDE RR, R | E28

35975-31G00

1
Out of stock

14

BRACKET, REAR SIDE RR, L | E28

35976-31G00

1
Out of stock

15

NUT, RR SIDE RR BKT | E28

09148-05038

2
Out of stock

16

SCREW | E28 This part replaces 03541-05163.

03541-0516A

2
Out of stock

17

NUT | E28 This part replaces 08316-10053.

08316-1005A

2
Out of stock

18

REFLECTOR ASSY, RR SIDE | E28 This part replaces 35970-07F00.

35970-07F01

1
Out of stock

19

NUT | E28 This part replaces 08316-10053.

08316-1005A

1
Out of stock
