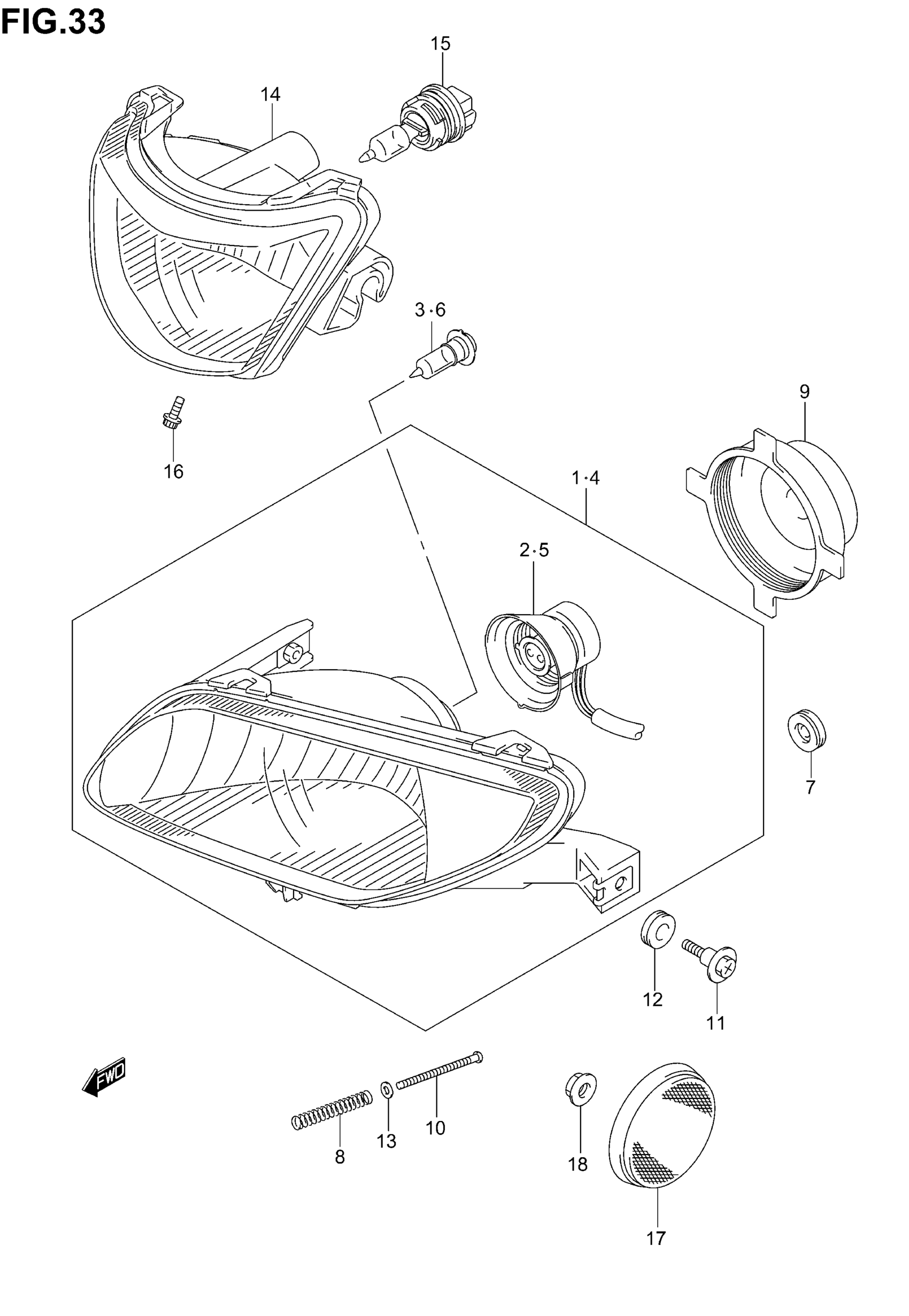

Suzuki LT-A700X (2005) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY, R | Includes Item(s) 2 This part replaces 35100-31G00-999.

35100-31G60-999

$256.22

2

CORD ASSY, R This part replaces 35121-31GR0.

35171-31GR0

$46.25

3

BULB (12V,30/30W) This part replaces 09471-12097.

09471-12093

$27.44

4

HEADLAMP ASSY, L | Includes Item(s) 5 This part replaces 35300-31G00-999.

35300-31G60-999

$256.22

5

CORD ASSY, L This part replaces 35321-31GL0.

35171-31GL0

$44.55

6

BULB (12V,30/30W) This part replaces 09471-12097.

09471-12093

$27.44

7

GROMMET, HEADLAMP HOUSING

09308-07011

$2.74

8

SPRING, HEADLAMP ADJUST

35154-31300

$3.64

9

COVER,HEADLAMP HOUSING

35174-31G00

$10.45

10

SCREW, HEADLAMP ADJUST | 4X50

09125-04031

$2.38

11

SCREW, HEADLAMP | 6X22.5

09139-06118

$3.16

12

CUSHION

09320-10501

$5.00

13

WASHER This part replaces 08322-01043.

08322-0104A

$1.99

14

HEADLAMP ASSY, AUX

35100-31GA0-999

$128.86

15

BULB (14V,40/40W)

09471-12217

$60.52

16

BOLT This part replaces 07120-05123.

07120-0512B

$2.71

17

REFLEX REFLECTOR ASSY, FR SID | E28 This part replaces 35950-14A10.

35950-14A11

$14.56

18

NUT | E28 This part replaces 08316-10053.

08316-1005A

$2.25
