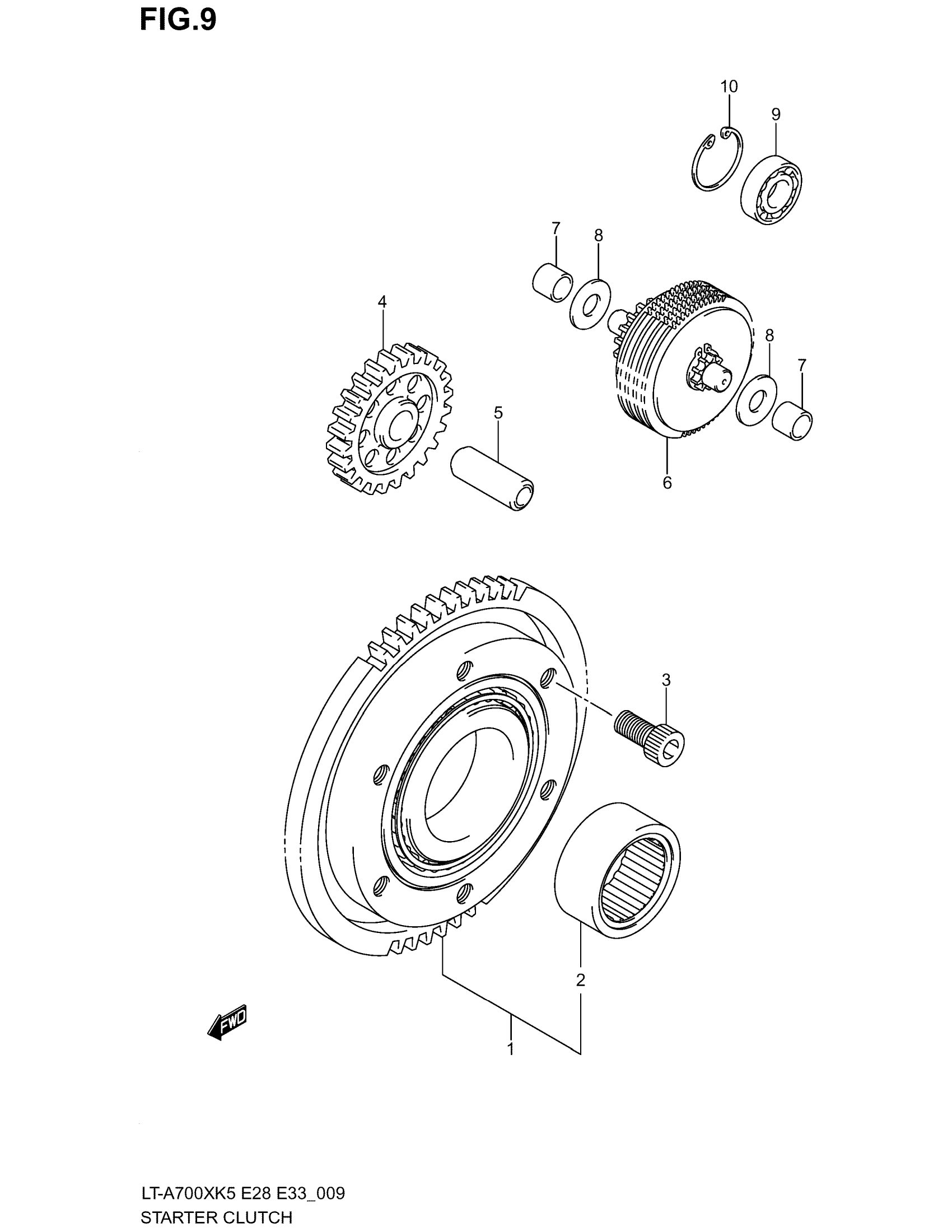

Suzuki LT-A700X (2005) STARTER CLUTCH Diagram

#

Description

Price

1

CLUTCH SET, STARTER | Includes Item(s) 2

12600-31810

$386.90

2

BEARING, 35X45X20

09263-35042

$53.02

3

BOLT, 8X20

09106-08106

$2.80

4

GEAR, STARTER IDLE NO.2

12612-31G00

$98.00

5

PIN, STARTER IDLE GEAR NO.2

09206-12007

$6.25

6

LIMITER ASSY, STARTER IDLE GEAR This part replaces 12600-31G00.

12600-31G01

$200.20

7

BUSH, LIMITER GEAR SHAFT

12618-31G00

$3.69

8

WASHER

08211-10221

$1.97

9

BEARING, 12X28X8

09262-12001

$16.90

10

CIRCLIP This part replaces 08331-41286.

08331-41289

$2.92
