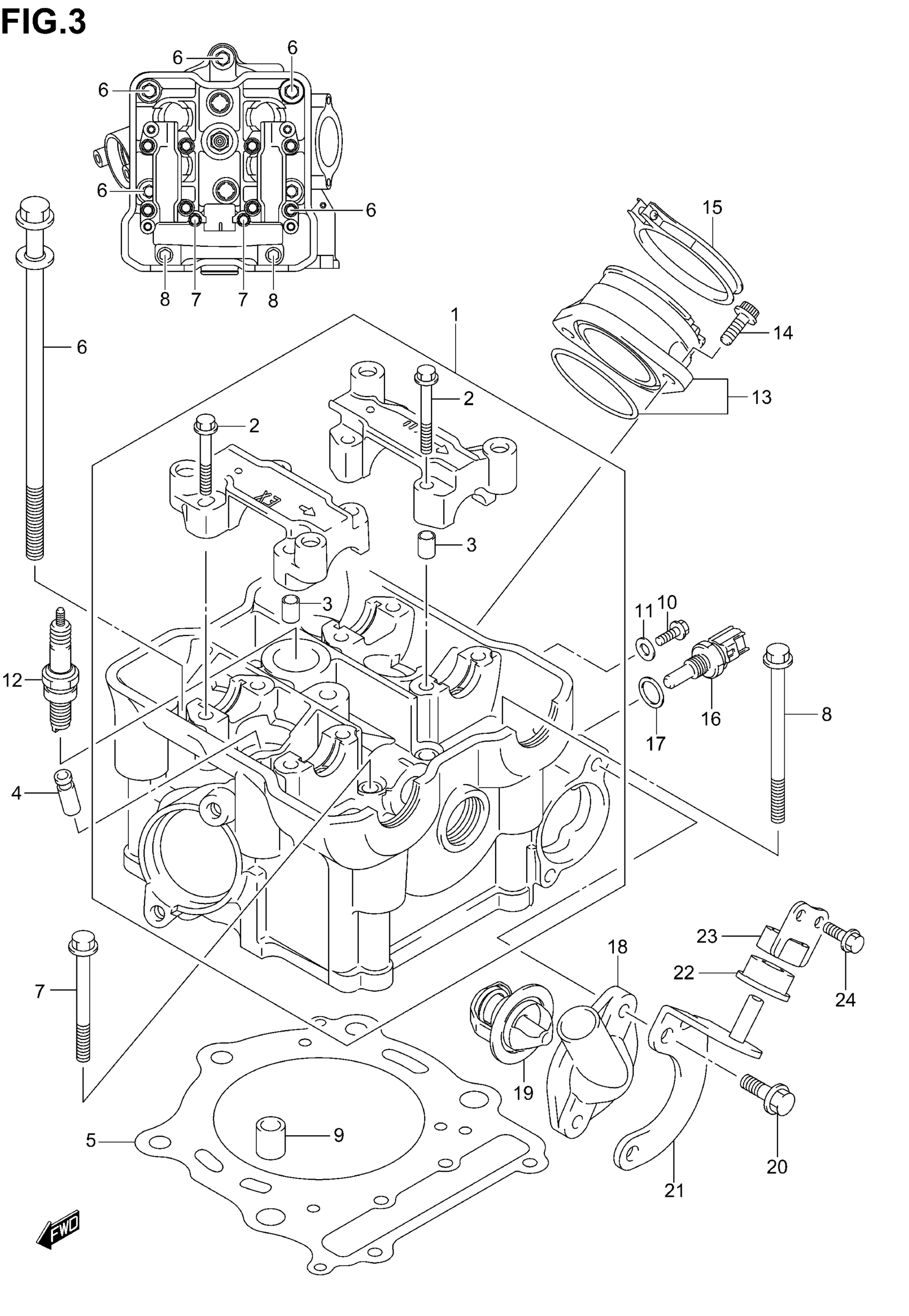

Suzuki LT-A700X (2005) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 3

11100-31G00

$1,599.55

2

BOLT, 6X40

09103-06266

$2.19

3

PIN, 6.2X8X11

09206-08001

$1.82

4

GUIDE, VALVE (OS:0.3) | OPT

11115-32E70

$44.28

5

GASKET, CYLINDER HEAD

11141-31G00

$42.47

6

BOLT,CYLINDER HEAD (L:200)

11161-31G00

$15.50

7

BOLT, 6X100

09103-06060

$2.61

8

BOLT, 6X70

09103-06103

$2.61

9

PIN

04211-13189

$2.25

10

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$2.88

11

GASKET, 5.8X13X1.2

09168-06023

$2.09

12

PLUG, SPARK (CR6E)

09482-00528

$5.92

12

PLUG, SPARK (U20ESR-N)

09482-00529

$7.93

12

PLUG, SPARK (CR8E) | OPT

09482-00456

$6.17

12

PLUG, SPARK (U24ESR-N) | OPT

09482-00457

$5.79

12

PLUG, SPARK (CR7E) | OPT

09482-00516

$5.92

12

PLUG, SPARK (U22ESR-N) | OPT

09482-00515

$5.67

12

PLUG SPARK (CR9E) | OPT

09482-00458

$5.92

12

PLUG, SPARK (U27-ESR-N) | OPT

09482-00459

$5.79

13

PIPE ASSY,INTAKE This part replaces 13101-31G00.

13101-31G01

$47.42

14

BOLT, INTAKE PIPE

09106-06105

$2.80

15

CLAMP, INTAKE PIPE

09402-62208

$6.21

16

SENSOR, WATER PUMP

13650-10G00

$83.45

17

GASKET, WATER TEMP SENSOR

09168-12017

$2.01

18

COVER

17661-31G00

$53.58

19

THERMOSTAT,WATER This part replaces 17670-06G60.

17670-06G61

$24.64

20

BOLT This part replaces 01550-08253.

01550-0825A

$2.38

21

PLATE,ENG MTG DAMPER This part replaces 11653-31G00.

11653-31G02

$22.87

22

DAMPER, ENG MTG

11654-31G00

$3.19

23

STOPPER, ENG MTG This part replaces 11655-31G00.

11655-31G03

Unavailable

24

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.38
