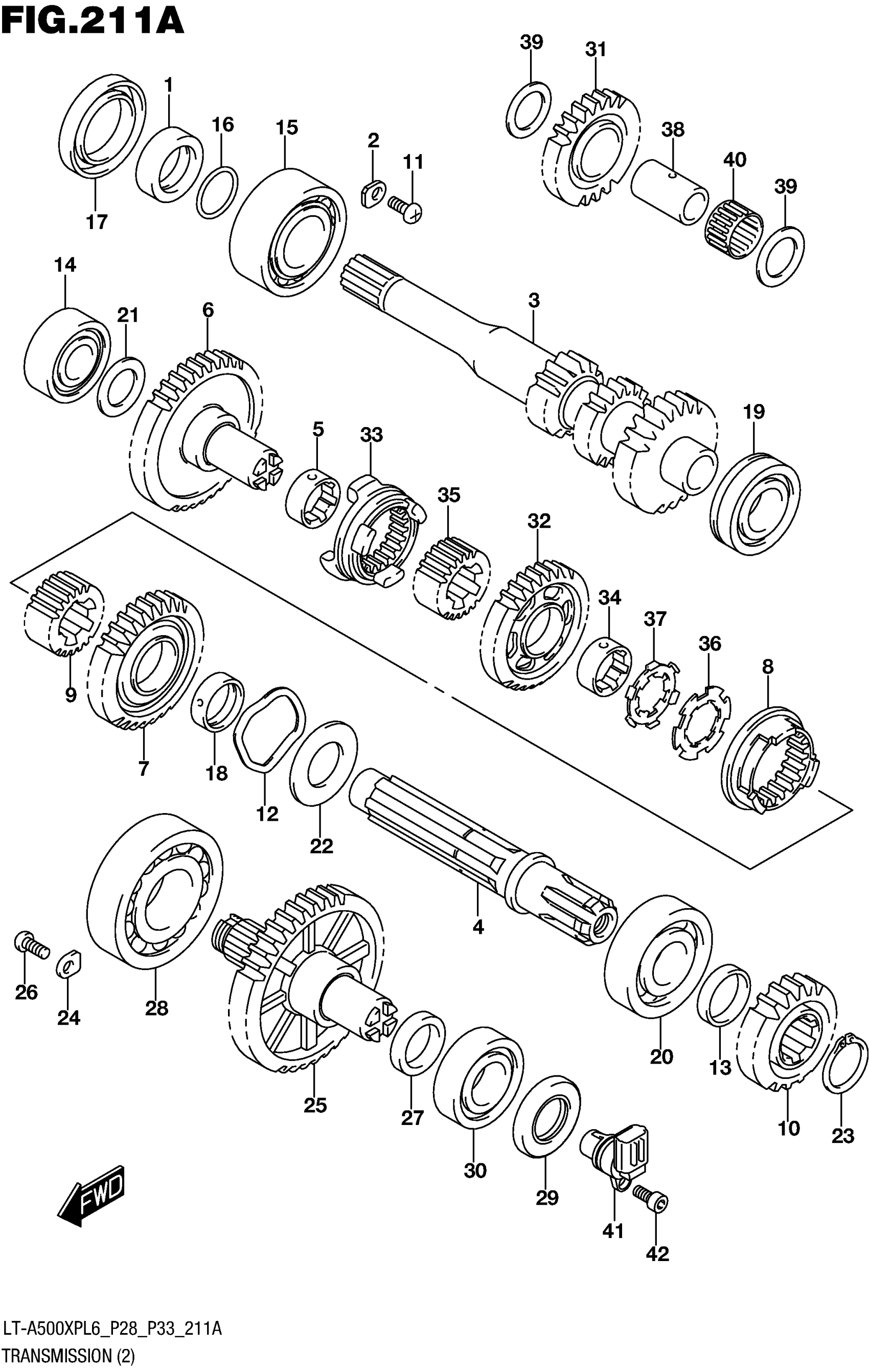

Find the part on the Transmission diagram for your 2016 Suzuki LT-A500XPL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki LT-A500XPL6 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPACER, DRIVE SHAFT

21102-31G00

1
Out of stock

2

RETAINER, DRIVE SHAFT RH

24741-21A00

2
Out of stock

3

SHAFT, DRIVE (NT:25/16/16)

29111-11H01

1
Out of stock

4

SHAFT, SUB T/M COUNTER

29131-31G00

1
Out of stock

5

BUSH, SUB T/M DRIVEN GR LOW

29215-07G00

1
Out of stock

6

GEAR, SUB T/M DRIVEN LOW

29311-31G00

1
Out of stock

6

(NT:41)

29311-31G00

1
Out of stock

7

GEAR, SUB T/M DRIVEN HIGH

29321-31G00

1
Out of stock

7

(NT:31)

29321-31G00

1
Out of stock

8

DOG, GEAR SHIFT HIGH

29331-31G10

1
Out of stock

9

SPACER, SUB T/M SELECT

29332-31G00

1
Out of stock

10

GEAR, SUB T/M DRIVE NO.2

29411-31H00

1
Out of stock

10

(NT:18)

29411-31H00

1
Out of stock

11

SCREW (6X12)

09125-06122

2
Out of stock

12

WASHER

09164-34001

1
Out of stock

13

SPACER (25X30X7)

09180-25097

1
Out of stock

14

BEARING (20X47X14)

09262-20139

1
Out of stock

15

BEARING (25X62X17)

09262-25153

1
Out of stock

16

.O-RING (D:2.4,ID:24.7)

09280-25004

1
Out of stock

17

OIL SEAL (38X56X7)

09283-38025

1
Out of stock

18

BUSH, SUB T/M DRIVEN GR

24252-19F00

1
Out of stock

19

BEARING (25X52X15)

09262-25142

1
Out of stock

20

BEARING (25X62X17)

09262-25073

1
Out of stock

21

WASHER

08211-20363

1
Out of stock

22

WASHER

08211-25463

1

$4.23

In stock

23

CIRCLIP

08331-31259

1
Out of stock

24

RETAINER, SEC DRIVE SHAFT

24741-21A00

2
Out of stock

25

SHAFT, SUB T/M OUTPUT

29120-31H00

1
Out of stock

26

SCREW (6X12)

09125-06122

2
Out of stock

27

SPACER (25X34X5.5)

09180-25083

1
Out of stock

28

BEARING (30X72X19)

09262-30077

1
Out of stock

29

SEAL,OIL (25X45X5)

09283-25076

1
Out of stock

30

BEARING (25X52X15)

09262-25003

1
Out of stock

31

GEAR, REVERSE IDLE (NT:23)

24561-31G20

1
Out of stock

32

GEAR, REVERSE DRIVEN (NT:32)

24571-31G00

1
Out of stock

33

DOG, SUB T/M SELECT SL

24581-31G00

1
Out of stock

34

BUSH, REVERSE DRIVEN GEAR

29215-07G00

1
Out of stock

35

SPACER, REVERSE SELECT

29332-31G00

1
Out of stock

36

WASHER,LOCK (25.1X41X1.5)

09167-25013

1
Out of stock

37

WASHER

09169-25001

1
Out of stock

38

SHAFT, REVERSE IDLE

24551-31G00

1
Out of stock

39

SHIM (20X30X1)

09181-20195

2
Out of stock

40

BEARING (20X24X13)

09263-20060

1
Out of stock

41

SENSOR, SPEED

34990-31G01

1
Out of stock

42

BOLT This part replaces 07130-0616A.

07130-0616B

1
Out of stock
