2016 Suzuki LT-A500XPL6 Brake Pedal Diagram

← All diagrams

Find the part on the Brake Pedal diagram for your 2016 Suzuki LT-A500XPL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

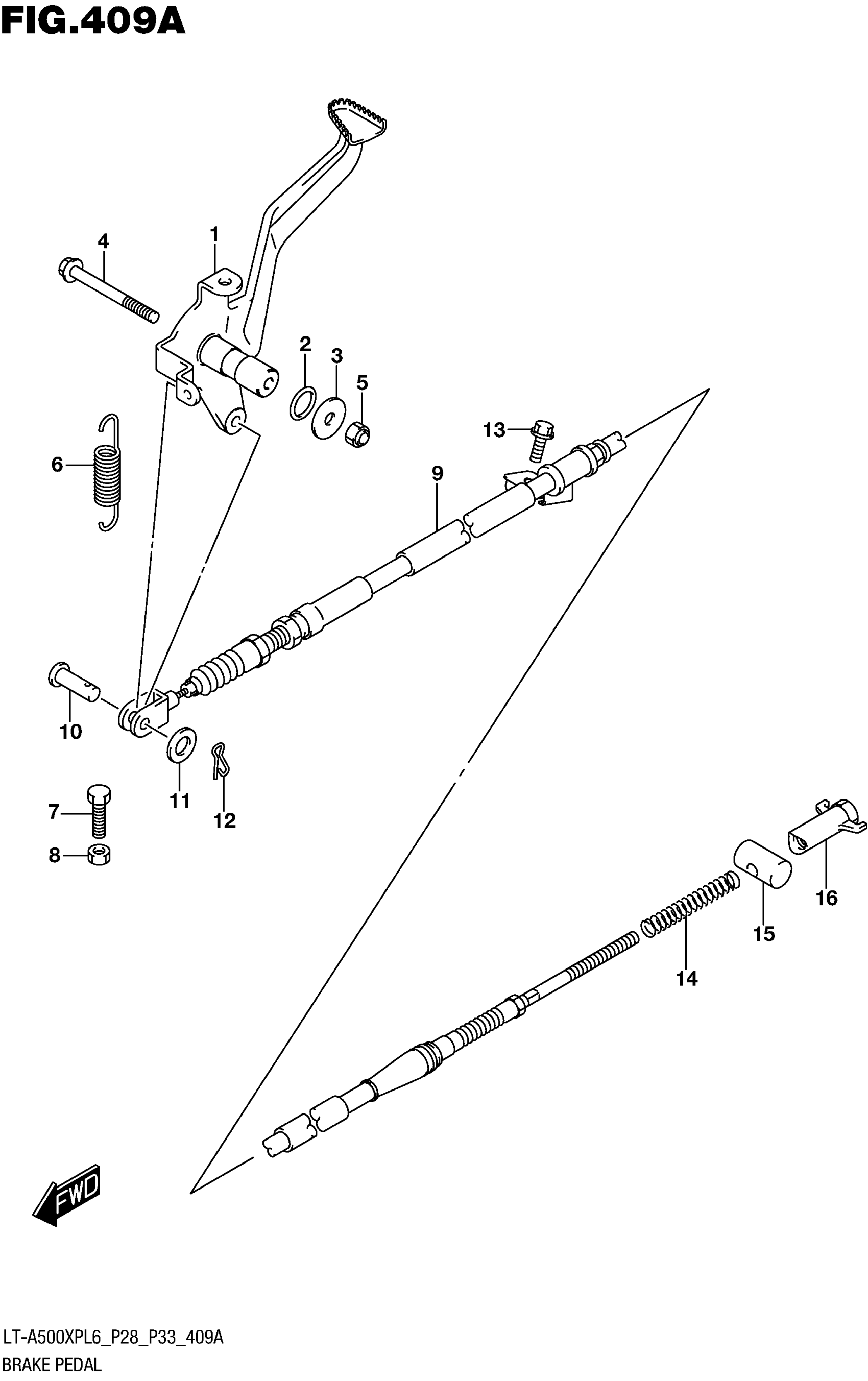

2016 Suzuki LT-A500XPL6 Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

43110-31G00

1
Out of stock

2

O RING (D:2.5,ID:13.8)

09280-14011

2
Out of stock

3

WASHER (6.5X22X2.3)

09160-06138

1
Out of stock

4

BOLT (6X65)

09103-06195

1
Out of stock

5

NUT

08319-2106A

1
Out of stock

6

SPRING

09443-11036

1
Out of stock

7

BOLT

01500-0620A

1
Out of stock

8

NUT

08310-0006A

1
Out of stock

9

CABLE, REAR BRAKE

58510-31G00

1
Out of stock

10

PIN (5.8X17.5)

09200-05001

1
Out of stock

11

WASHER

08322-0106B

1
Out of stock

12

CLIP

09385-06012

1
Out of stock

13

BOLT

01547-0616A

1
Out of stock

14

SPRING

09440-08042

1
Out of stock

15

PIN

09209-13006

1
Out of stock

16

NUT

09150-06015

1
Out of stock
