2016 Suzuki LT-A500XPL6 Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 2016 Suzuki LT-A500XPL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

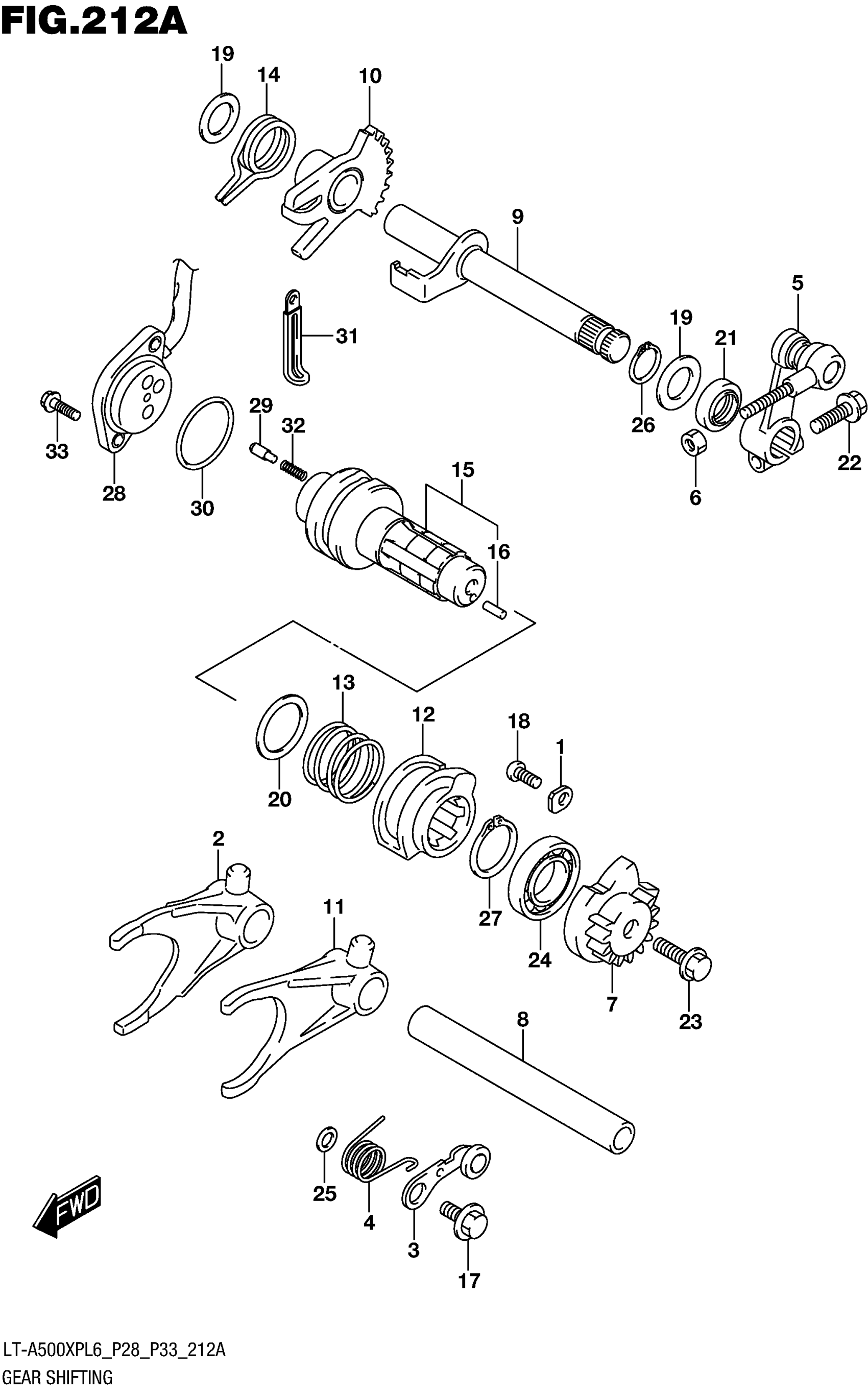

2016 Suzuki LT-A500XPL6 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RETAINER, SUB T/M SHIFT CAM

24741-21A00

1
Out of stock

2

FORK, REVERSE GR SHIFT

25240-31G10

1
Out of stock

3

STOPPER, SHIFT CAM

25350-31G00

1
Out of stock

4

SPRING,SHIFT

25355-35F01

1
Out of stock

5

ARM, SELECT

25360-11H00

1
Out of stock

6

NUT

08310-0006A

1
Out of stock

7

PLATE, GR SHIFT CAM STOPPER

25381-11H00

—
Out of stock

7

(NT:16)

25381-11H00

—
Out of stock

8

SHAFT, SUB T/M GEAR SHIFT

25411-38A00

1
Out of stock

9

SHAFT, SUB T/M SHIFT NO.2 This part replaces 25510-31G00.

25510-31G01

1
Out of stock

10

GEAR, SUB T/M SHIFT (NT:32)

25540-31G00

1
Out of stock

11

FORK, SUB T/M GEAR SHIFT

29510-31G10

1
Out of stock

12

CAM, SUB T/M GEAR SHIFT

29611-31G00

1
Out of stock

13

SPRING, SUB T/M SHIFT FORK

29612-31G00

1
Out of stock

14

SPRING, SHIFT ARM RETURN

29613-31G00

1
Out of stock

15

SHAFT, SUB T/M GEAR SHIFT

29620-31G11

1
Out of stock

16

PIN (4X13.8)

04221-04089

1
Out of stock

17

BOLT (6X14.3)

09111-06041

1
Out of stock

18

SCREW (6X12)

09125-06122

1
Out of stock

19

SHIM (14X24X1)

09181-14195

2
Out of stock

20

SHIM (25X32X1)

09181-25139

1
Out of stock

21

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

1
Out of stock

22

BOLT

01550-0620A

1
Out of stock

23

BOLT

01550-0630A

1
Out of stock

24

BEARING

08110-69040

1

$44.68

In stock

25

WASHER

08211-06121

1
Out of stock

26

CIRCLIP

08331-3114A

1
Out of stock

27

CIRCLIP

08331-31259

1
Out of stock

28

BASE ASSY, GEAR SHIFT TERM

37720-31G00

1
Out of stock

29

PIN (5X15.5)

09209-05011

2
Out of stock

30

O RING (D:2.4,ID:35.5)

09280-35006

1
Out of stock

31

CLAMP (L:45)

09404-06429

2
Out of stock

32

SPRING

09440-04010

2
Out of stock

33

BOLT

07120-0516A

2
Out of stock
