2016 Suzuki LT-A500XPL6 Front Brake Hose Diagram

← All diagrams

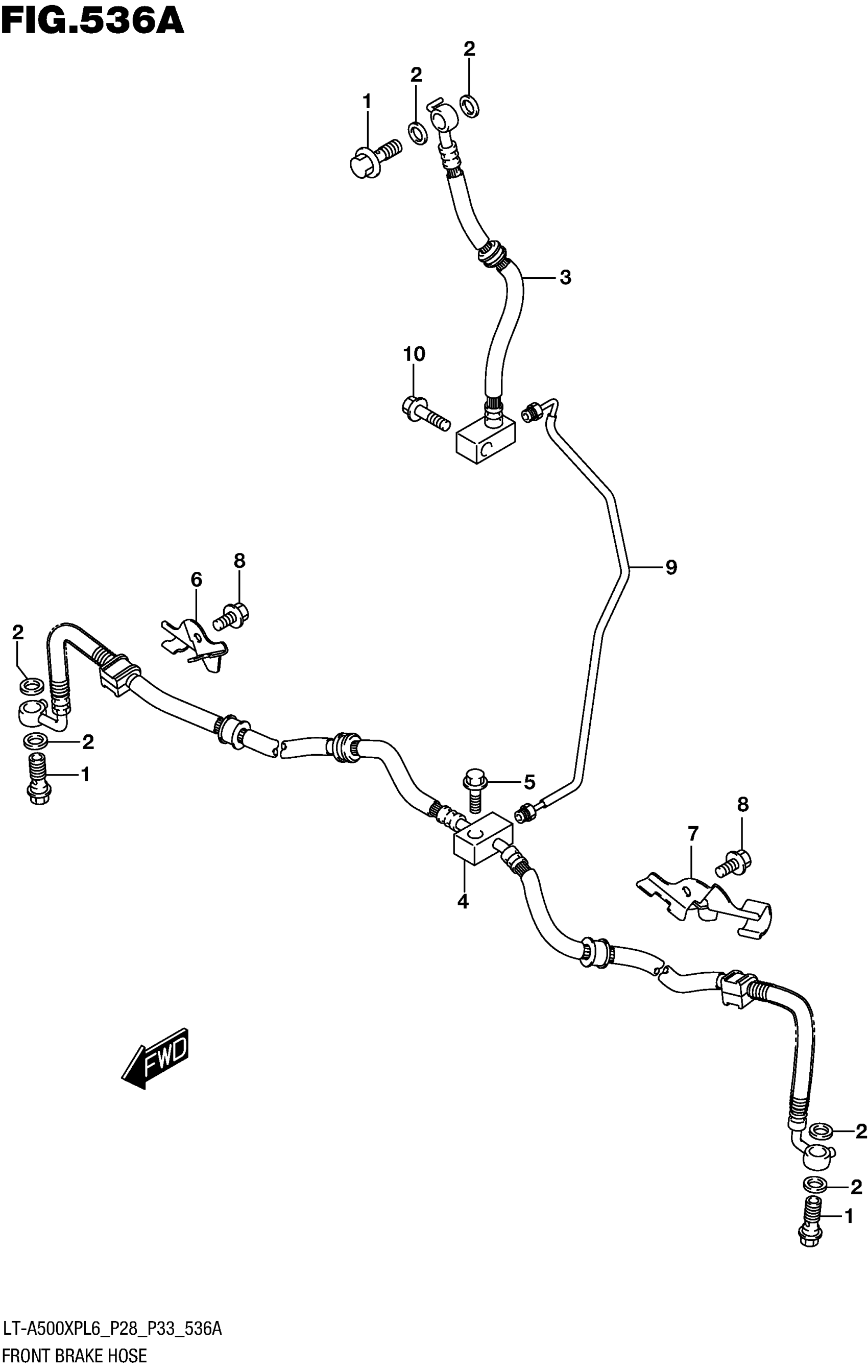

Find the part on the Front Brake Hose diagram for your 2016 Suzuki LT-A500XPL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki LT-A500XPL6 Front Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNION

09360-10062

3
Out of stock

2

WASHER (10X15X1.5)

09161-10009

6
Out of stock

3

HOSE, FRONT BRAKE NO.1 This part replaces 59480-31G30.

59480-31G31

1
Out of stock

4

HOSE, FRONT BRAKE NO.2 This part replaces 59240-31G30.

59240-31G31

1
Out of stock

5

BOLT

01550-0625A

1
Out of stock

6

CLAMP, FR BRAKE HOSE NO.2 RH

59261-31G00

—
Out of stock

7

CLAMP, FR BRAKE HOSE NO.2 LH

59271-31G00

1
Out of stock

8

BOLT

01550-0616A

2
Out of stock

9

PIPE, FR BRAKE

59250-31G10

1
Out of stock

10

BOLT

01550-0630A

1
Out of stock
← Brake Pedal Front Caliper →
