2015 Suzuki LT-A500XPL5 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2015 Suzuki LT-A500XPL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

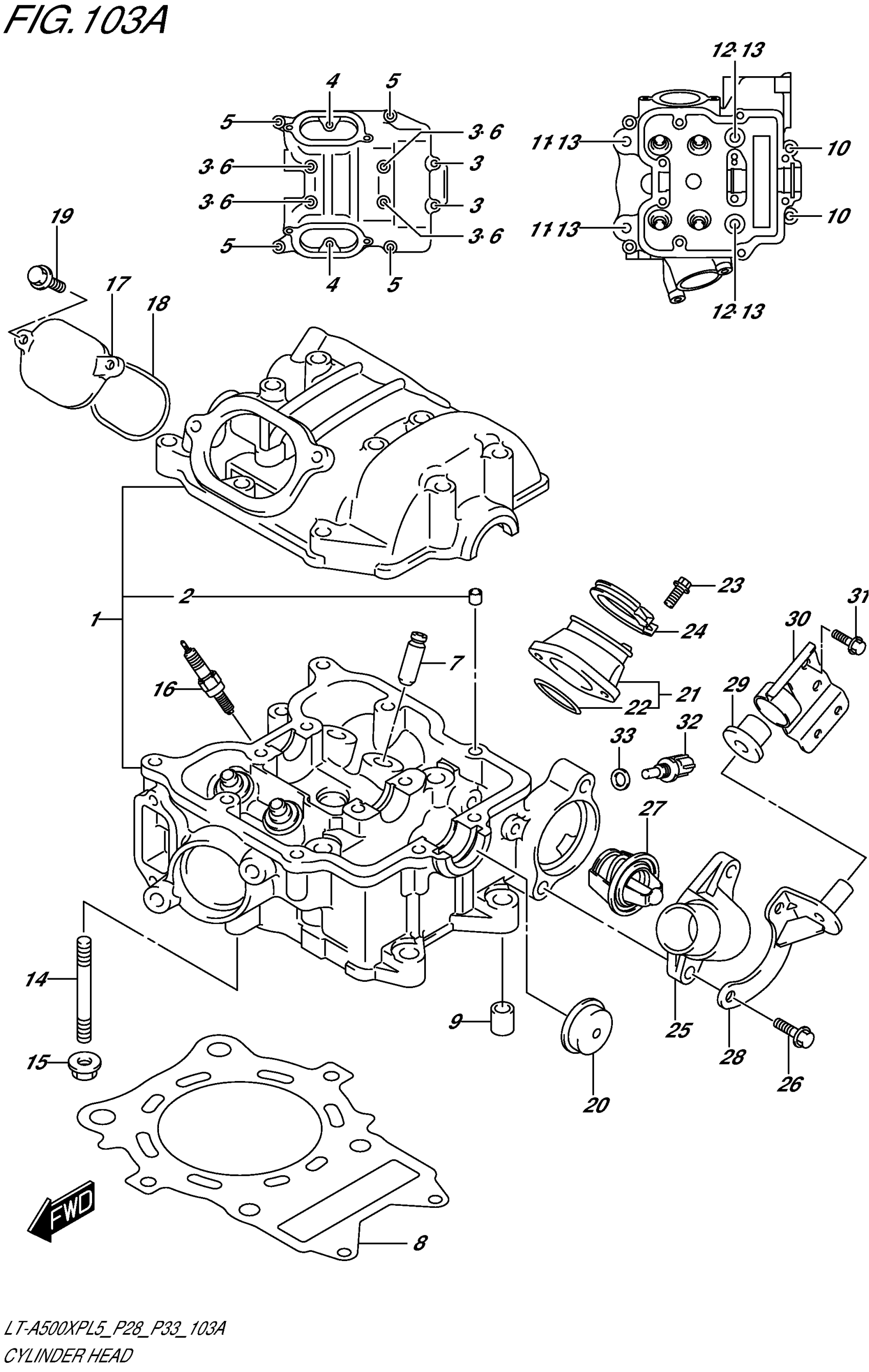

2015 Suzuki LT-A500XPL5 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER

11100-11H50

1

$1,417.57

In stock

2

PIN (8X11)

09206-08001

2
Out of stock

3

BOLT (6X60)

09103-06064

6

$2.31

In stock

4

BOLT

01550-0625A

2
Out of stock

5

BOLT

01550-0635A

4
Out of stock

6

GASKET (5.8X13X1.2)

09168-06023

4
Out of stock

7

GUIDE,VALVE (OS:0.3) | OPT

11115-14D71

4
Out of stock

8

GASKET, CYLINDER HEAD

11141-31H00

1

$43.55

In stock

9

PIN

04211-13189

2
Out of stock

10

BOLT (8X135)

09103-08212

2

$8.12

In stock

11

BOLT (10X190)

09103-10179

2

$15.12

In stock

12

BOLT (L:200)

09103-10180

2

$15.12

In stock

13

.GASKET (10.2X20X2.3)

09168-10031

4

$2.18

In stock

14

STUD BOLT

01421-0850A

2

$3.33

In stock

15

NUT

08316-1008A

2
Out of stock

16

1

$38.07

In stock

16

SPARK PLUG (LMAR8A-9) | OPT NGK

09482-00625

—
Out of stock

17

CAP,INSPECTION

11175-47D00

2
Out of stock

18

.O RING,INSPECTION CAP

11177-14D01

2
Out of stock

19

BOLT

01550-0620A

4
Out of stock

20

PLUG (OD:30)

09241-25007

1
Out of stock

21

1

$48.88

In stock

22

O RING

13118-11H00

1

$7.30

In stock

23

BOLT (6X18)

09106-06105

2

$2.92

In stock

24

CLAMP

09402-56901

1

$5.20

In stock

25

COVER, THERMOSTAT

17661-31G00

1

$53.58

In stock

26

BOLT

07130-0825A

2
Out of stock

27

1

$25.68

In stock

28

PLATE, ENG MTG DAMPER

11653-11H01

1

$23.73

In stock

29

DAMPER, ENG MTG

11654-31G00

1

$3.33

In stock

30

STOPPER, ENG MTG

11655-31G10

1

$18.92

In stock

31

BOLT (8X12)

01550-0812A

2
Out of stock

32

SENSOR, WATER TEMP

13650-10G00

1

$86.96

In stock

33

GASKET (12X17X1)

09168-12017

1
Out of stock
