2015 Suzuki LT-A500XPL5 Crankshaft Diagram

← All diagrams

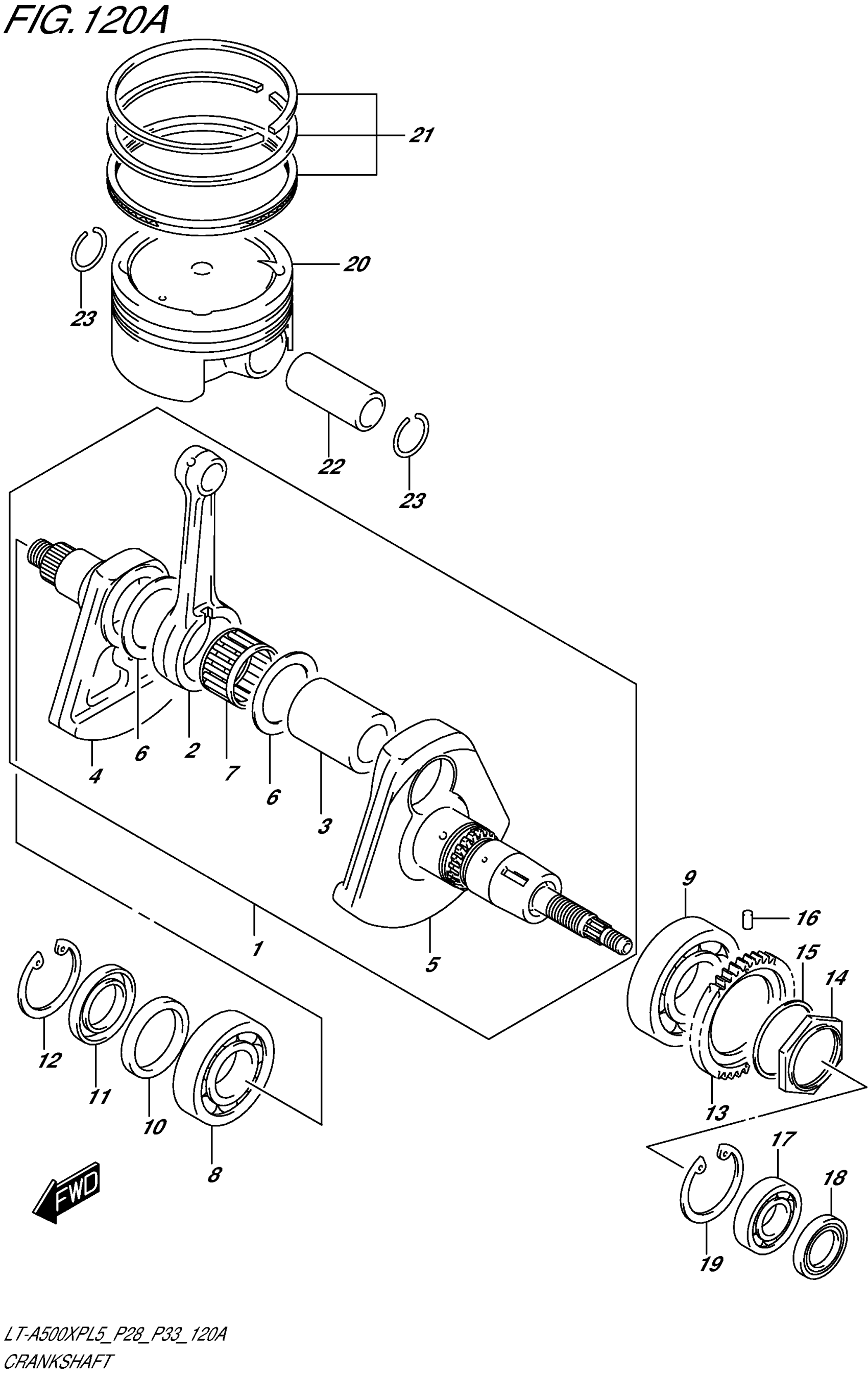

Find the part on the Crankshaft diagram for your 2015 Suzuki LT-A500XPL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki LT-A500XPL5 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY

12200-11H00

1
Out of stock

2

CONNROD

12161-11H00

1
Out of stock

3

PIN, CRANK

12210-11H00

1
Out of stock

4

CRANKSHAFT RH

12220-11H00

—
Out of stock

5

CRANKSHAFT LH

12261-11H00

—
Out of stock

6

WASHER (35X55X1)

09160-35005

2
Out of stock

7

BEARING (35X44X25)

09263-35043

1
Out of stock

8

BEARING (40X80X18)

09262-40008

1
Out of stock

9

BEARING (45X85X19)

09262-45007

1
Out of stock

10

OIL SEAL (34X49X6)

09282-34003

1
Out of stock

11

OIL SEAL (34X52X6)

09282-34001

1
Out of stock

12

CIRCLIP

08331-41529

1
Out of stock

13

GEAR, CRANK BALANCER DRIVE (NT:43)

12661-31G01

1
Out of stock

14

NUT, CRANK BALANCER DRIVE GEAR

12664-31G00

1
Out of stock

15

WASHER (45X60X1.2)

09160-45006

1
Out of stock

16

PIN (5X8)

09261-05005

1
Out of stock

17

BEARING (25X47X8)

09262-25006

1
Out of stock

18

OIL SEAL (25X42X6)

09283-25095

1
Out of stock

19

CIRCLIP

08331-41479

1
Out of stock

20

PISTON

12111-31H10-0F0

1
Out of stock

21

RING SET, PISTON

12140-03G20

1
Out of stock

22

PIN,PISTON

12151-24A00

1
Out of stock

23

SNAP RING

09381-20004

2
Out of stock
