2015 Suzuki LT-A500XPL5 CAM Chain Diagram

← All diagrams

Find the part on the CAM Chain diagram for your 2015 Suzuki LT-A500XPL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

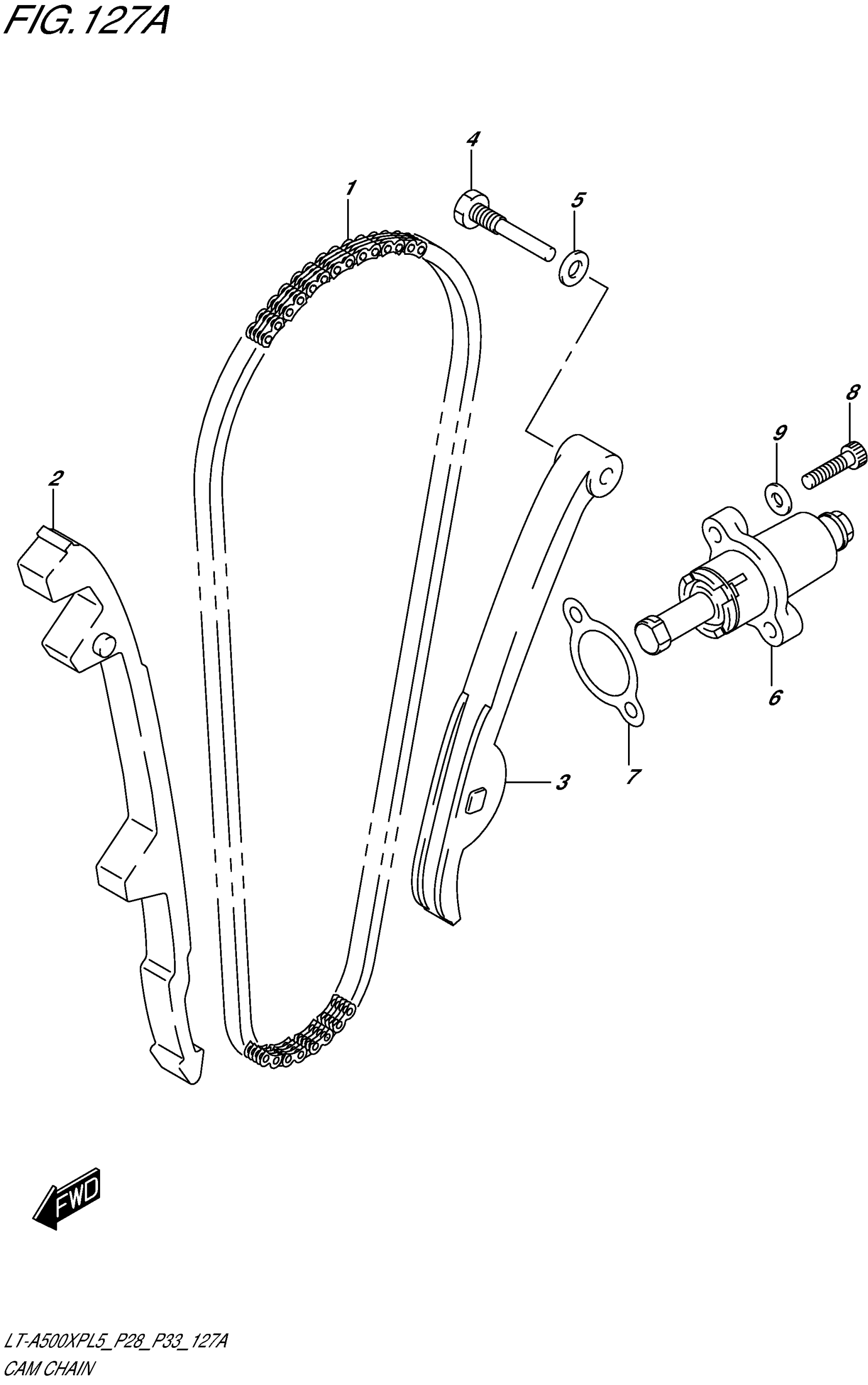

2015 Suzuki LT-A500XPL5 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN, CAM SHAFT DRIVE (92RH2015-124MPX)

12760-09F00

1
Out of stock

2

GUIDE, CAM CHAIN

12771-11H00

1
Out of stock

3

TENSIONER, CAM CHAIN This part replaces 12811-09F00.

12811-09F01

1
Out of stock

4

BOLT, CAM CHAIN TENSIONER

12812-32400

1
Out of stock

5

GASKET (8.2X14X1)

09168-08016

1
Out of stock

6

ADJUSTER ASSY, TENSIONER

12830-32E00

1
Out of stock

7

.GASKET,TENSIONER ADJUSTER

12837-24A10

1
Out of stock

8

BOLT (6X25)

07130-0625A

2
Out of stock

9

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock
