2009 Suzuki LT-A500XP Wiring Harness Diagram

← All diagrams

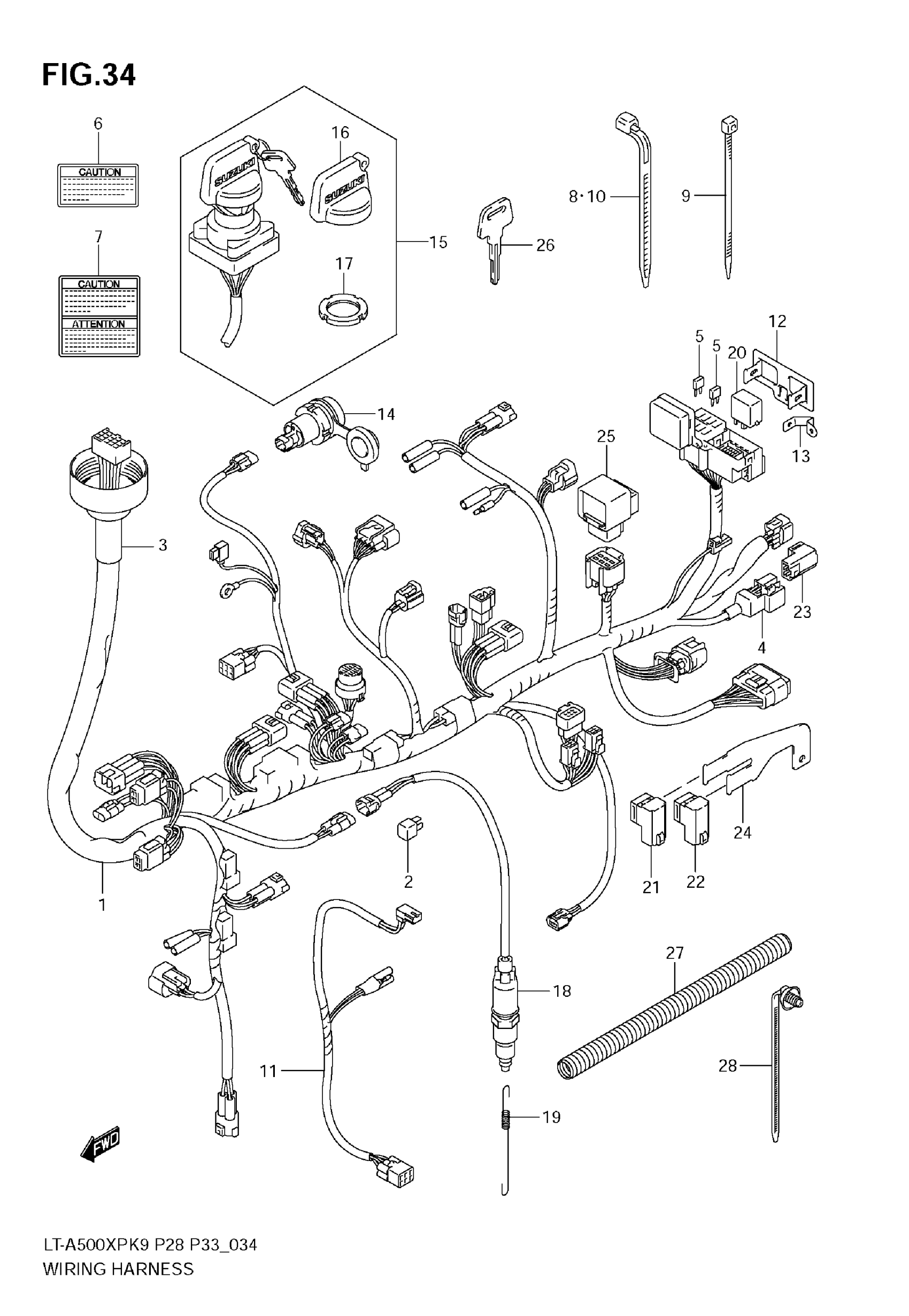

Find the part on the Wiring Harness diagram for your 2009 Suzuki LT-A500XP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-A500XP Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING | Includes Item(s) 2 - 5 This part replaces 36610-31H30.

36610-31H34

1
Out of stock

2

RECTIFIER ASSY

32800-16A00

4
Out of stock

3

COVER

36618-31G00

1
Out of stock

4

BOOT

36618-31G10

1
Out of stock

5

FUSE (10A)

09481-10501

4
Out of stock

5

FUSE (15A)

09481-15501

2
Out of stock

6

LABEL, CAUTION MAX AMP | E33

38852-09F30

1
Out of stock

7

LABEL, CAUTION MAX AMP | E28

38852-03G10

1
Out of stock

8

CLAMP (L:95)

09407-11401

2
Out of stock

8

CLAMP (L:125)

09407-14403

6
Out of stock

8

CLAMP (L:235)

09407-25401

3
Out of stock

9

CLAMP (L:145)

09407-14407

3
Out of stock

10

CLAMP (L:190)

09407-19401

6
Out of stock

11

WIRE, FRONT BRAKE SW LEAD

36855-38F10

1
Out of stock

12

BRACKET, FUSE

36744-31G00

1
Out of stock

13

BRACKET, FUSE

36744-31G10

1
Out of stock

14

TERMINAL,POWER SOURCE (12V,12 | 12V,12W

38850-03G10

1
Out of stock

15

SWITCH ASSY,IGNITION | Includes Item(s) 16 - 17 This part replaces 37110-38F00.

37110-38F01

1
Out of stock

16

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

1
Out of stock

17

.NUT,IGNITION SWITCH

37112-24500

1
Out of stock

18

SWITCH ASSY,STOP LAMP

37740-38F01

1
Out of stock

19

SPRING, STOP LAMP

09443-06080

1
Out of stock

20

RELAY,NEUTRAL START

38730-09F00

1
Out of stock

21

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

1
Out of stock

22

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

1
Out of stock

23

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

1
Out of stock

24

BRACKET, RELAY

38741-31G20

1
Out of stock

25

RELAY ASSY, DRIVE

38750-31G00

1
Out of stock

26

KEY,BLANK (TYPE:C) | OPT

37146-19B00

1
Out of stock

26

KEY,BLANK (TYPE:D) | OPT

37146-19B10

1
Out of stock

27

GUIDE, WIRING HARNESS

36619-31G00

1
Out of stock

28

CLAMP (L:154)

09407-17403

1
Out of stock
