2009 Suzuki LT-A500XP Rear Combination Lamp Diagram

← All diagrams

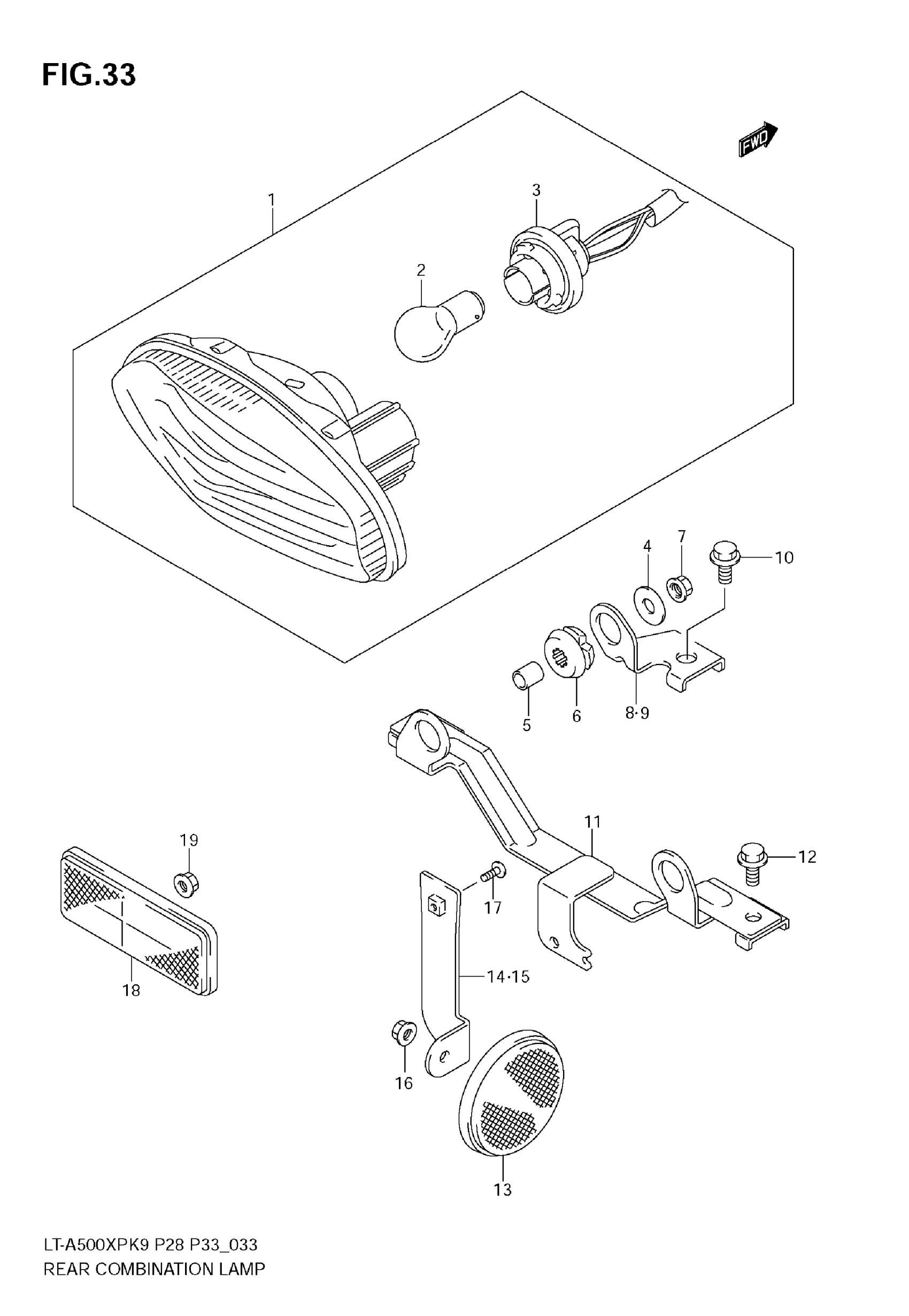

Find the part on the Rear Combination Lamp diagram for your 2009 Suzuki LT-A500XP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-A500XP Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMB | Includes Item(s) 2 - 3

35710-31G00

1
Out of stock

2

BULB (12V,21/5W)

09471-12128

1
Out of stock

3

SOCKET & CORD

35718-03G30

1
Out of stock

4

WASHER, REAR COMB LAMP | 6.5X20X1.2

09160-06077

2
Out of stock

5

SPACER, REAR COMB | 6.5X9X10.5

09180-06264

2
Out of stock

6

CUSHION, REAR COMB

09320-09018

2
Out of stock

7

NUT, REAR COMB

08316-1006B

2
Out of stock

8

1

$10.08

In stock

9

1

$10.08

In stock

10

BOLT, REAR COMB BRACKET | E33

01550-0612B

2
Out of stock

11

1

$31.90

In stock

12

BOLT, REAR COMB BRACKET | E28

01550-0612B

2
Out of stock

13

REFLECTOR ASSY, RR SIDE | E28

35970-14A20

2
Out of stock

14

BRACKET, REAR SIDE RR, R | E28

35975-31G00

1
Out of stock

15

BRACKET, REAR SIDE RR, L | E28

35976-31G00

1
Out of stock

16

NUT, RR SIDE RR BKT | E28

08316-1005B

2
Out of stock

17

SCREW, RR SIDE RR BKT | E28

09125-05073

2
Out of stock

18

REFLECTOR ASSY, REAR | E28

35970-07F01

1
Out of stock

19

NUT, REAR RR | E28

08316-1005B

1
Out of stock
