Description

Price

1

SHAFT, STEERING

51650-31G30

$426.40

2

PLATE, STEERING ARM

51653-31G30

$154.77

3

BUSH, STEERING SHAFT LOWER

51661-31G00

$27.50

4

SEAL, DUST This part replaces 51662-31G00.

51662-31G01

$9.41

5

SEAL, DUST This part replaces 51663-31G10.

51663-31G11

$14.08

6

PLATE, STEERING SHAFT

51680-31G00

$202.97

7

BODY ASSY,STEER This part replaces 51700-31G00.

51700-31G13

$3,032.23

8

PLATE, EPS ECU

51771-31G00

$151.78

9

CLAMP, HANDLE HOLDER UP (BLACK)

56211-09F00-291

$33.15

10

CLAMP, HANDLE HOLDER This part replaces 56211-31G10-291.

56211-31G10

$48.73

11

BOLT, STEERING SHAFT

09106-08129

$5.87

12

BOLT, PLATE ECU

09111-06085

$4.16

13

NUT, HANDLE HOLDER

09159-10115

$3.21

14

NUT, STEERING SHAFT LOWER

09159-14027

$15.28

15

WASHER This part replaces 09160-10132.

09160-10128-XC0

$2.64

16

WASHER, STEERING SHAFT LOWER

09160-14062

$2.79

17

WASHER, HANDLE HOLDER CLAMP

09164-08015

$2.90

18

O-RING, STEERING SHAFT

09280-24010

$5.09

19

CLIP, PLATE EPS ECU

09409-07333

$2.29

20

BOLT, HANDLE HOLDER

01500-1035B

$4.03

21

BOLT, EPS

01550-0830A

$2.80

22

BOLT, HANDLE CLAMP

01550-0835B

$4.42

23

BOLT, STEERING SHAFT HOLDER

01550-0865B

$3.07

24

PIN, STEERING SHAFT COTTER

04111-2020A

$1.22

25

NUT, STEERING STEM

08316-1014A

$2.57

26

NUT, EPS

08319-3108A

$2.31

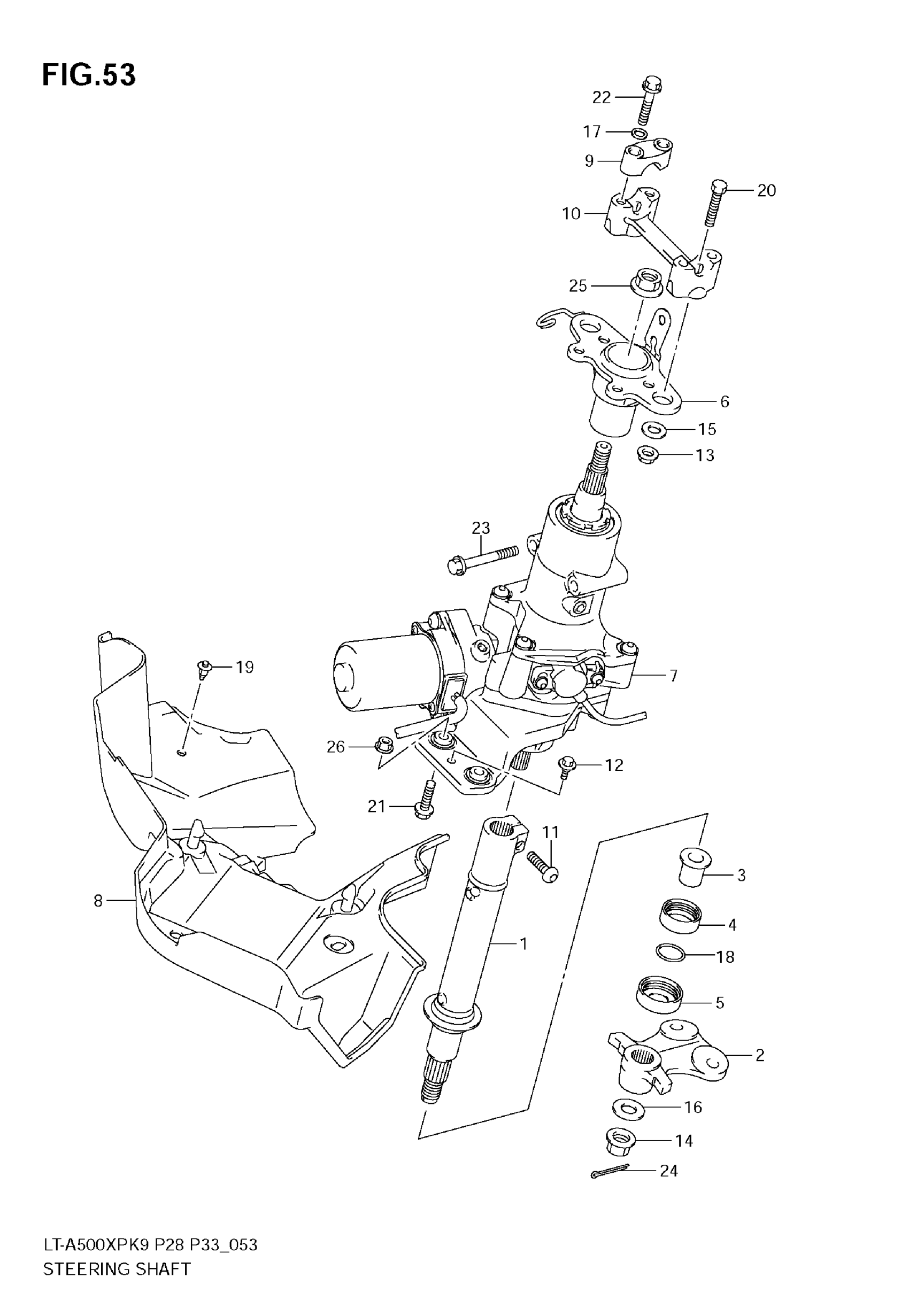

Suzuki LT-A500XP (2009) STEERING SHAFT Diagram
