2009 Suzuki LT-A500XP Handle Cover Diagram

← All diagrams

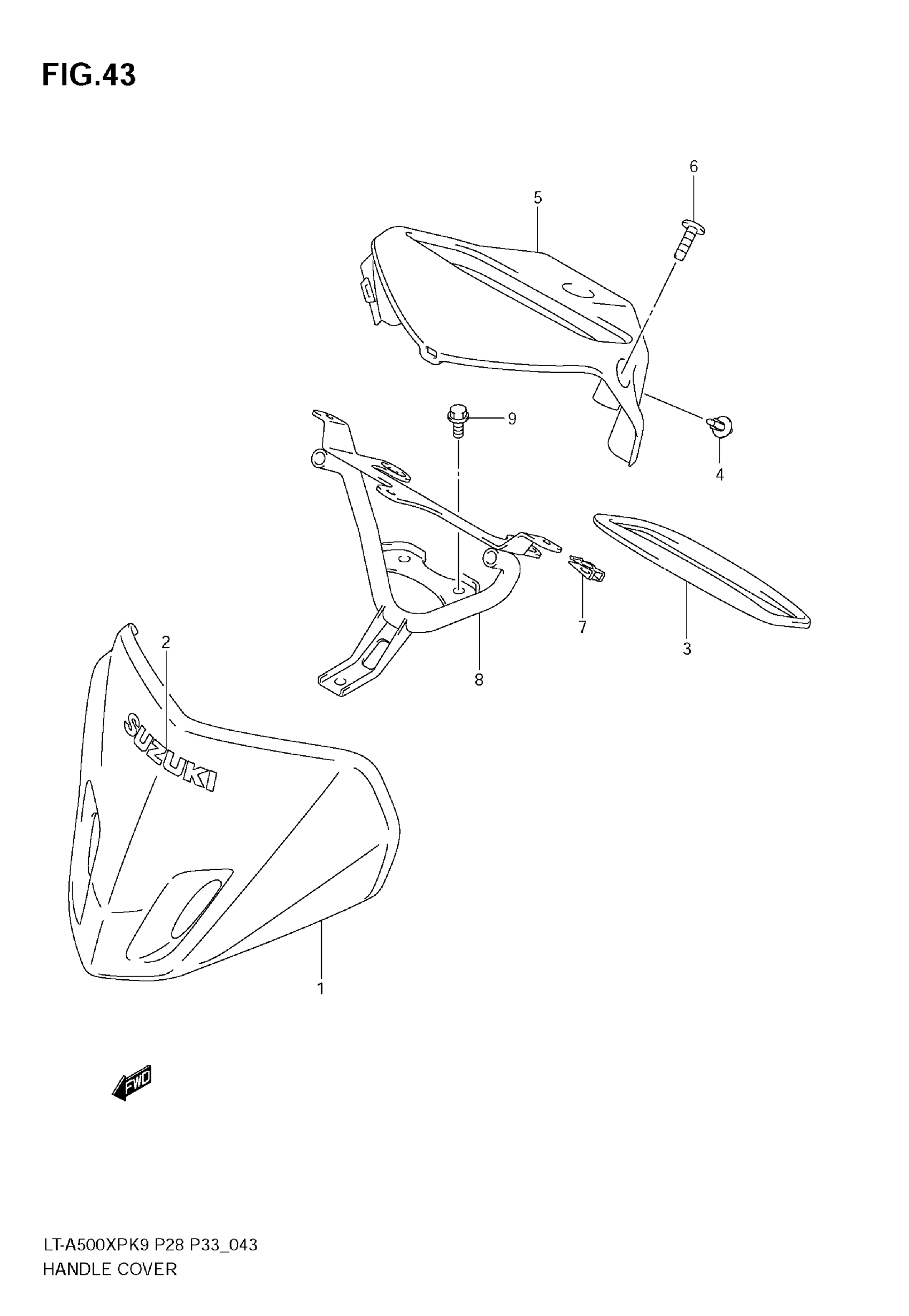

Find the part on the Handle Cover diagram for your 2009 Suzuki LT-A500XP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-A500XP Handle Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,HANDLE FR This part replaces 56311-11H00-YT9.

56311-11H03-YT9

1
Out of stock

1

COVER,HANDLE,FR This part replaces 56311-11H00-YLZ.

56311-11H02-YLZ

1
Out of stock

1

COVER,HANDLE,FR This part replaces 56311-11H00-YLG.

56311-11H03-YLG

1
Out of stock

1

NO DESCRIPTION AVAILABLE This part replaces 56311-11HC0-YKL.

56311-11HC1-YKL

1
Out of stock

1

COVER, FRONT This part replaces 56311-11HC0-YVA.

56311-11HC1-YVA

1
Out of stock

1

COVER,HANDLE FR This part replaces 56311-11H00-30H.

56311-11H01-30H

1
Out of stock

1

NO DESCRIPTION AVAILABLE | LT-A500XPZ This part replaces 56311-11H10-YUW.

56311-11H11-YUW

1
Out of stock

2

EMBLEM,"SUZUKI" This part replaces 68171-31G50-YPF.

68171-31GA1-1ZZ

1
Out of stock

3

MOLDING

56317-31G00

1
Out of stock

4

CLIP

09409-07333

2
Out of stock

5

COVER, HANDLE REAR (BLACK)

56321-11H00-291

1
Out of stock

6

SCREW

03141-0525A

2
Out of stock

7

NUT

09148-05038

2
Out of stock

8

BRACE, COVER

56160-11H00

1
Out of stock

9

BOLT (8X12)

01550-0812A

2
Out of stock
