Description

Price

1

TIE ROD, STEERING

51281-31G40

$108.95

2

KNUCKLE, STEERING RH

51231-31G30

$405.58

3

KNUCKLE, STEERING LH

51241-31G30

$405.58

4

END, KNUCKLE STEERING

51210-31G10

$62.90

5

ROD, END, R

51260-45G00

$55.20

6

ROD, END, L

51270-45G00

$56.78

7

NUT, TIE ROD (RH THREAD)

51283-09F00

$4.63

8

NUT, ROD END

08314-4010B

$2.58

9

NUT, TIE ROD (LH THREAD)

09140-12035

$2.80

10

COTTER PIN, ROD END

04111-2020A

$1.25

11

WASHER, ROD END

09160-10082

$1.66

12

NUT, KNUCKLE END

08314-4010B

$2.58

13

PIN, KNUCKLE END COTTER

04111-2020A

$1.25

14

WASHER, KNUCKLE END

09160-10082

$1.66

15

DUST SEAL, INNER (38X55X8)

09283-38012

$13.70

16

DUST SEAL, OUTER (38X55X6)

09285-38002

$12.97

17

BEARING This part replaces 51259-31G00.

51259-31G10

$97.27

18

CIRCLIP This part replaces 08331-3130A.

08331-31309

$2.68

19

CLIP This part replaces 08331-4155A.

08331-41559

$3.49

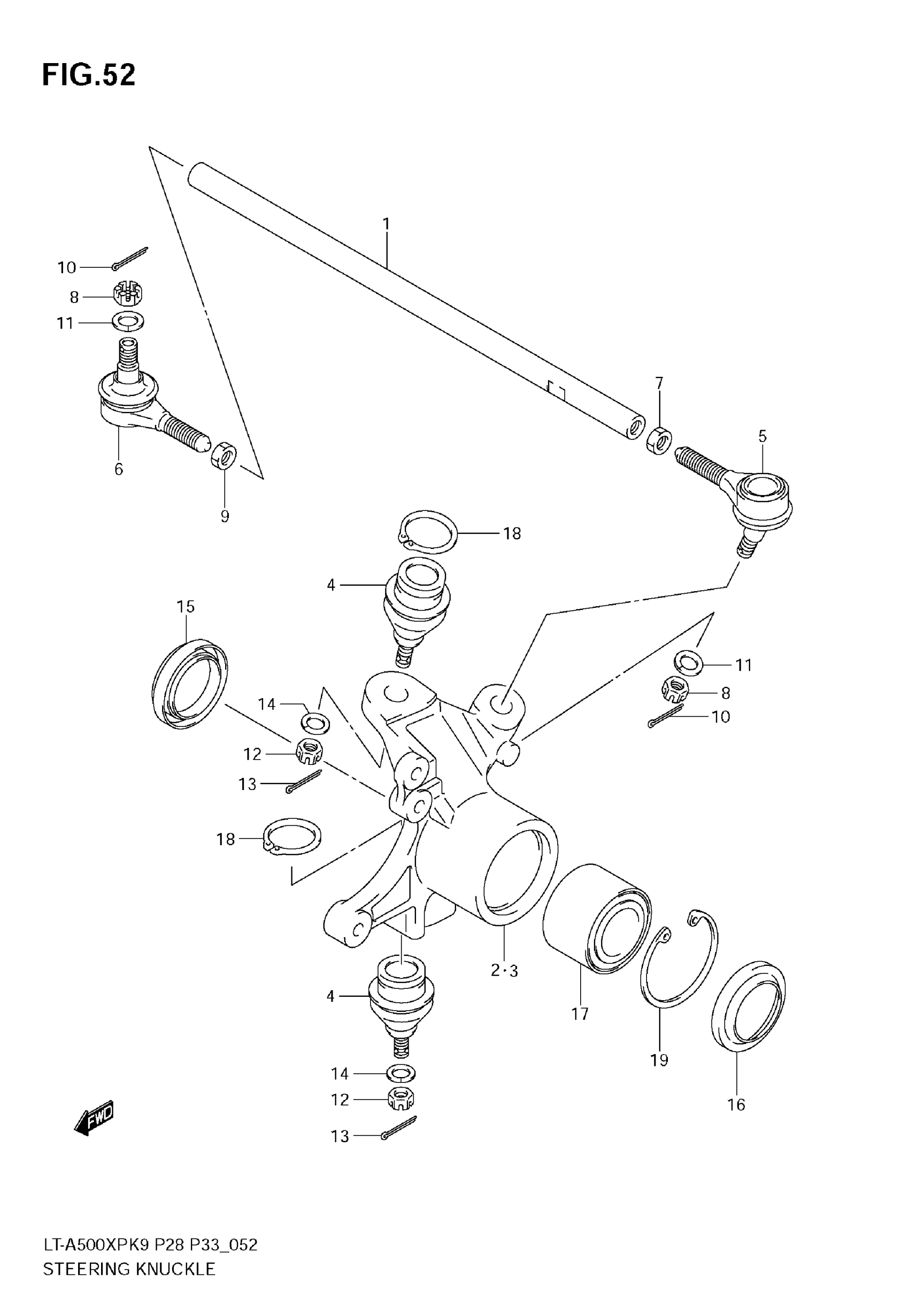

Suzuki LT-A500XP (2009) STEERING KNUCKLE Diagram
